客户端发起转推直播

最近更新时间：2025.11.10 15:11:15首次发布时间：2021.07.18 15:06:10

对于一个音视频通话，你可以将其中的多路音视频流合为一路，并将合并得到的音视频流推送到指定的推流地址（通常是 CDN 地址）。你可以在应用服务端和应用客户端启动合流转推，本文介绍如何通过调用客户端 API，在 RTC 服务端发起和完成合流转推任务。

alt

关于如何调用 Open API，在服务端完成合流转推，参见通过 OpenAPI 使用合流转推功能。

前提条件

你已经集成 RTC SDK，实现了基本的音视频通话。

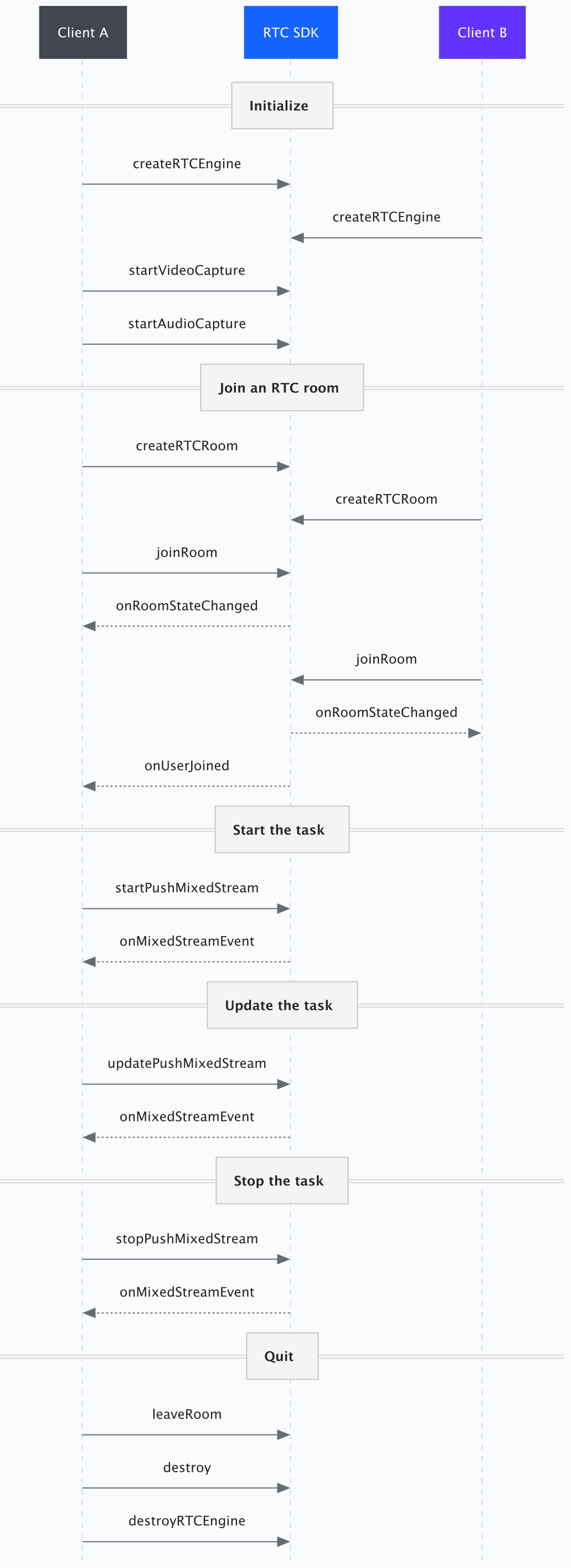

调用时序

api

1. 创建引擎类

创建和初始化一个音视频引擎类。

参考构建 RTC 应用获取详细步骤。

java

swift

cpp

// 首先定义：
    // IRTCEngineEventHandler rtcEngineEventHandler = new IRTCEngineEventHandler() {
    //    @Override public void onWarning(int warn) { ... }
    //    @Override public void onError(int err) { ... }
    // }

    // 创建引擎
    EngineConfig config = new EngineConfig();
    config.appID = appId;
    config.context = applicationContext;
    rtcEngine = RTCEngine.createRTCEngine(config, rtcEngineEventHandler);
    // 开启音视频采集
    rtcEngine.startVideoCapture();
    rtcEngine.startAudioCapture();

//创建引擎
    let engineCfg = ByteRTCEngineConfig.init()
    engineCfg.appID = appId
    engineCfg.parameters = [:]
    self.rtcEngine = ByteRTCEngine.createRTCEngine(engineCfg, delegate: self)
    // 开启音视频采集
    self?.rtcEngine?.startVideoCapture()
    self?.rtcEngine?.startAudioCapture()

//创建引擎
    bytertc::EngineConfig conf;
    conf.app_id = g_appid.c_str();
    m_engine = bytertc::IRTCEngine::createRTCEngine(conf, handler.get());
// 开启音视频采集
m_engine->startAudioCapture();
m_engine->startVideoCapture();

2. 进房

创建房间实例后，你可以加入房间发布和订阅音视频流。建议设置房间回调接口，以便监听房间和音视频流的状态回调。

java

swift

cpp

private void joinRoom(String roomId) {
    // 创建房间
    rtcRoom = rtcEngine.createRTCRoom(roomId);
    rtcRoom.setRTCRoomEventHandler(roomEventHandler);
    String token = requestRoomToken(roomId);
    // 用户信息
    UserInfo userInfo = new UserInfo(localUid, "");
    // 房间配置
    boolean isAutoPublishAudio = true;
    boolean isAutoPublishVideo = true;
    boolean isAutoSubscribeAudio = true;
    boolean isAutoSubscribeVideo = true;
    RTCRoomConfig roomConfig = new RTCRoomConfig(ChannelProfile.CHANNEL_PROFILE_CHAT_ROOM, isAutoPublishAudio, isAutoPublishVideo, isAutoSubscribeAudio, isAutoSubscribeVideo);
    // 加入房间
    rtcRoom.joinRoom(token, userInfo, true, roomConfig);
}

// 创建房间
    self.rtcRoom = self.rtcEngine?.createRTCRoom(roomId)
    self.rtcRoom?.delegate = self
    // 用户信息
    let userInfo = ByteRTCUserInfo.init()
    userInfo.userId = userId
    // 房间配置
    let roomCfg = ByteRTCRoomConfig.init()
    roomCfg.isPublishAudio = true
    roomCfg.isPublishVideo = true
    roomCfg.isAutoSubscribeAudio = true
    roomCfg.isAutoSubscribeVideo = true
    // 加入房间
    self.rtcRoom?.joinRoom(token, userInfo: userInfo, userVisibility: true, roomConfig: roomCfg)

// 创建房间
bytertc::IRTCRoom *room = engine->createRTCRoom(id);
// 加入房间
        bytertc::UserInfo info;
        bytertc::RTCRoomConfig config;
        info.uid = uid.c_str();
        config.is_auto_publish_audio = true;
        config.is_auto_publish_video = true;
        config.is_auto_subscribe_audio = true;
        config.is_auto_subscribe_video = true;
        config.room_profile_type = bytertc::kRoomProfileTypeCommunication;
        int ret = room->joinRoom(token.c_str(), info, true, config);

3. 开启任务

发起合流转推任务，在收到 onRoomStateChanged 回调，进入 RTC 房间成功后调用 startPushMixedStream。

java

swift

cpp

private void startPushCDNStream() {
      MixedStreamPushTargetConfig targetConfig = new MixedStreamPushTargetConfig();
      targetConfig.pushTargetType = MixedStreamPushTargetType.PUSH_TO_CDN;
      targetConfig.pushCDNURL = "CDN_URL";

      MixedStreamConfig mixedStreamConfig = MixedStreamConfig.defaultMixedStreamConfig();
      mixedStreamConfig.userID = 发起任务的用户ID;
      mixedStreamConfig.roomID = 房间ID;
      //视频相关参数
      mixedStreamConfig.videoConfig.width = 360;
      mixedStreamConfig.videoConfig.height = 640;
      mixedStreamConfig.videoConfig.fps = 15;
      mixedStreamConfig.videoConfig.bitrate = 500000;
      //音频相关参数
      mixedStreamConfig.audioConfig.channels = 2;
      mixedStreamConfig.audioConfig.sampleRate = 48000;
      mixedStreamConfig.audioConfig.bitrate = 64;
      //布局相关参数
      mixedStreamConfig.regions = getLayoutRegions();
      rtcEngine.startPushMixedStream(taskID, targetConfig, mixedStreamConfig);
    }
    // 监听任务回调
    IRTCEngineEventHandler engineEventHandler = new IRTCEngineEventHandler() {
        @Override
        public void onMixedStreamEvent(MixedStreamTaskInfo info, MixedStreamTaskEvent event, MixedStreamTaskErrorCode error) {
            super.onMixedStreamEvent(info, event, error);
            String msg = String.format("onMixedStreamEvent,taskId:%s, error:%s, event:%s", info.getTaskId(), error.toString(), event.toString());
            Log.d(TAG, msg);
        }
    };
};

@objc func startPushCDNStream()  {
    let targetConfig = ByteRTCMixedStreamPushTargetConfig.init()
    targetConfig.pushTargetType = .toCDN
    targetConfig.pushCDNURL = CDN_URL
    // 设置合流参数
    let mixedStreamConfig = ByteRTCMixedStreamConfig.default()
    mixedStreamConfig?.roomID = roomId
    mixedStreamConfig?.userID = userId

    //视频相关参数
    mixedStreamConfig.videoConfig.width = 360
    mixedStreamConfig.videoConfig.height = 640
    mixedStreamConfig.videoConfig.fps = 15
    mixedStreamConfig.videoConfig.bitrate = 500000

    //音频相关参数
    mixedStreamConfig.audioConfig.channels = 2
    mixedStreamConfig.audioConfig.sampleRate = 48000
    mixedStreamConfig.audioConfig.bitrate = 64

    //布局相关参数
    mixedStreamConfig.regions = getLayoutRegions()
    // 开始推流到 CDN
    rtcEngine?.startPushMixedStream(taskId, with:targetConfig, withMixedConfig: mixedStreamConfig)
  }
  // 监听任务回调
  func rtcEngine(_ engine: ByteRTCEngine, onMixedStreamEvent event: ByteRTCMixedStreamTaskEvent, withMixedStreamInfo info: ByteRTCMixedStreamTaskInfo, with errorCode: ByteRTCMixedStreamTaskErrorCode) {
            ToastComponents.shared.show(withMessage: "onMixedStreamEvent:(event.rawValue) taskId:(info.taskId) errorCode:(errorCode.rawValue) + mixType:(info.description)")
        NSLog("onMixedStreamEvent: (event), info_des: (info.description), errorcode : (errorCode)")
  }

// 设置合流参数

    bytertc::IMixedStreamConfig* mixed_stream_param = getMixedStreamConfig();
    bytertc::MixedStreamPushTargetConfig cf;
    cf.push_cdn_url = url.c_str();
    int ret = m_engine->startPushMixedStream(m_task.c_str(), cf, mixed_stream_param);

//回调
void onMixedStreamEvent(MixedStreamTaskInfo info, MixedStreamTaskEvent event, MixedStreamTaskErrorCode error_code) {
        (void)info;
        (void)event;
        (void)error_code;
    }

合流视频的布局设置。分别以 1x4 和 2x2 两种布局模式为例。

java

swift

cpp

private MixedStreamConfig.MixedStreamLayoutRegionConfig[] getLayoutRegions() {
    int width = 360;
    int height = 640;
    int userNum = userNameList.size();
    MixedStreamConfig.MixedStreamLayoutRegionConfig[] regions = new MixedStreamConfig.MixedStreamLayoutRegionConfig[userNum];
    int index = 0;
    //是否是 1x4 布局
    String mode = layoutMode.getSelectedItem().toString();
    if ("1x4".equals(mode)) {
        for (String uid : userNameList) {
            MixedStreamConfig.MixedStreamLayoutRegionConfig region = new MixedStreamConfig.MixedStreamLayoutRegionConfig();
            region.setRoomID(roomID);
            region.setUserID(uid);
            region.isLocalUser = (uid.equals(localUid));
            region.setLocationX(index * width / userNum);
            // 留出部分背景区域
            region.setLocationY(50);
            region.setWidth(width / userNum);
            region.setHeight(height);
            region.setAlpha(1);
            region.setZOrder(0);
            region.setRenderMode(MixedStreamRenderMode.MIXED_STREAM_RENDER_MODE_HIDDEN);
            region.setStreamType(MixedStreamVideoType.MIXED_STREAM_VIDEO_TYPE_MAIN);
            region.setMediaType(MixedStreamMediaType.MIXED_STREAM_MEDIA_TYPE_AUDIO_AND_VIDEO);
            regions[index] = region;
            index ++;
        }
    } else if ("2x2".equals(mode)) {
        for (String uid : userNameList) {
            MixedStreamConfig.MixedStreamLayoutRegionConfig region = new MixedStreamConfig.MixedStreamLayoutRegionConfig();
            region.setRoomID(roomID);
            region.setUserID(uid);
            region.isLocalUser = (uid.equals(localUid));
            region.setLocationX((index % 2) * width / userNum);
            region.setLocationY((index / 2) * height / 2 + 50);
            region.setWidth(width / 2);
            // 为展示部分背景
            region.setHeight(height / 2);
            region.setAlpha(1);
            region.setZOrder(0);
            region.setRenderMode(MixedStreamRenderMode.MIXED_STREAM_RENDER_MODE_HIDDEN);
            region.setStreamType(MixedStreamLayoutRegionConfig.MixedStreamVideoType.MIXED_STREAM_VIDEO_TYPE_MAIN);
            region.setMediaType(MixedStreamMediaType.MIXED_STREAM_MEDIA_TYPE_AUDIO_AND_VIDEO);
            regions[index] = region;
            index ++;
        }
    }
    return regions;
}

func getMixRegions() -> [ByteRTCMixedStreamLayoutRegionConfig] {
    let roomId = roomSettingItem.text
    let userId = userSettingItem.text

    var regions = [ByteRTCMixedStreamLayoutRegionConfig]()
    if self.layoutSheetView.selectedIndex == 0 {
        // 1x4 布局

        let width = 360/4
        let height = 640

        // 本地用户
        let regionConfig = ByteRTCMixedStreamLayoutRegionConfig.init()
        regionConfig.userID = userId!
        regionConfig.roomID = roomId!
        regionConfig.locationX = 0
        regionConfig.locationY = 0
        regionConfig.width = 360/4
        regionConfig.height = 640
        regionConfig.zOrder = 0
        regionConfig.isLocalUser = true
        regionConfig.mediaType = .audioAndVideo

        regions.append(regionConfig)

        //远端用户
        for (index, item) in self.users.enumerated() {
            if index < 3 {
                let regionConfig = ByteRTCMixedStreamLayoutRegionConfig.init()
                regionConfig.userID = item.userId!
                regionConfig.roomID = item.roomId!

                regionConfig.locationX = width*(index+1)
                regionConfig.locationY = 0
                regionConfig.width = width
                regionConfig.height = height
                regionConfig.zOrder = 0
                regionConfig.isLocalUser = false
                regionConfig.mediaType = .audioAndVideo

                regions.append(regionConfig)
            }
        }
    } else {
        // 2x2 布局
        let width = 360/2
        let height = 640/2

        // 本地用户
        let regionConfig = ByteRTCMixedStreamLayoutRegionConfig.init()
        regionConfig.userID = userId!
        regionConfig.roomID = roomId!
        regionConfig.locationX = 0
        regionConfig.locationY = 0
        regionConfig.width = width
        regionConfig.height = height
        regionConfig.zOrder = 0
        regionConfig.isLocalUser = true
        regionConfig.mediaType = .audioAndVideo

        regions.append(regionConfig)

        //远端用户
        for (index, item) in self.users.enumerated() {
            if index < 3 {
                let regionConfig = ByteRTCMixedStreamLayoutRegionConfig.init()
                regionConfig.userID = item.userId!
                regionConfig.roomID = item.roomId!

                let col = (index + 1)%2
                let row = (index + 1)/2

                regionConfig.locationX = width*col
                regionConfig.locationY = height*row
                regionConfig.width = width
                regionConfig.height = height
                regionConfig.zOrder = 0
                regionConfig.isLocalUser = false
                regionConfig.mediaType = .audioAndVideo

                regions.append(regionConfig)
            }
        }
    }

    return regions
}

bytertc::IMixedStreamConfig* CDNStreamByServer::getMixedStreamConfig()
{
    // audio
    bytertc::MixedStreamAudioConfig audioParam;
    audioParam.audio_codec = bytertc::MixedStreamAudioCodecType::kMixedStreamAudioCodecTypeAAC;
    audioParam.channels = 2;
    audioParam.bitrate = bitrate_a;
    audioParam.sample_rate = 48000;
    audioParam.audio_profile = bytertc::MixedStreamAudioProfile::kMixedStreamAudioProfileLC;

    // video
    bytertc::MixedStreamVideoConfig videoParam;
    videoParam.bitrate = bitrate_v;
    videoParam.fps = 15;
    videoParam.gop = 2;
    videoParam.width = 640;
    videoParam.height = 360;
    videoParam.enable_bframe = false;
    videoParam.video_codec = bytertc::kMixedStreamVideoCodecTypeH264;

    // layout
    bytertc::MixedStreamLayoutRegionConfig* layouts = new bytertc::MixedStreamLayoutRegionConfig[m_rendered_users.size()];
    int i = 0;
    std::map<std::string, UserWidget*>::iterator ite;

    for (ite = m_rendered_users.begin(); ite != m_rendered_users.end(); ite++) {
        bytertc::MixedStreamLayoutRegionConfig lay;
        lay.user_id = ite->first.c_str();
        lay.room_id = m_roomid.c_str();

        lay.location_x = (i % 2) * 0.5 * videoParam.width; //确定每个流的位置
        lay.location_y = (i / 2) * 0.5 *  videoParam.height;

        lay.width = 0.5 * videoParam.width;
        lay.height = 0.5* videoParam.height;

        if (ite->first == m_localid) {
            lay.is_local_user = true;
        }
        else {
            lay.is_local_user = false;
        }

        lay.alpha = 1.0f;
        lay.z_order = 0;

        lay.render_mode = bytertc::MixedStreamRenderMode::kMixedStreamRenderModeHidden;
        lay.stream_type = bytertc::MixedStreamVideoType::kMixedStreamVideoTypeMain;
        lay.media_type = bytertc::MixedStreamMediaType::kMixedStreamMediaTypeAudioAndVideo;
        lay.apply_spatial_audio = false;
        layouts[i++] = lay;
    }

    std::string url = "Your Url";

    bytertc::IMixedStreamConfig* mixed_stream_param = bytertc::IMixedStreamConfig::createMixedStreamConfig();
    mixed_stream_param->setAudioConfig(audioParam);
    mixed_stream_param->setVideoConfig(videoParam);
    mixed_stream_param->setLayoutConfig(layouts, m_rendered_users.size());
    mixed_stream_param->setRoomID(m_roomid.c_str());
    mixed_stream_param->setUserID(m_localid.c_str());

    delete[]layouts;
    return mixed_stream_param;
}

4. 更新任务

在收到远端用户视频流后，才可以更新合流布局。

java

swift

cpp

private void updateCDNStreamConfig() {
    String cdnAddr = cdnAddressInput.getText().toString();
        if (cdnAddr.isEmpty()) {
            ToastUtil.showAlert(this, "cdn address is null");
            return;
        }
        targetConfig.pushCDNURL = cdnAddr;

        mixedStreamConfig.backgroundColor = layoutColorInput.getText().toString();
        mixedStreamConfig.regions = getLayoutRegions();
        rtcEngine.updatePushMixedStream(CDN_TASK_ID, targetConfig, mixedStreamConfig);
}

bytertc::MixedStreamPushTargetConfig cf;
    cf.push_cdn_url = "Your Url";

    bytertc::IMixedStreamConfig* config = getMixedStreamConfig();
    int ret = m_video->updatePushMixedStream(m_task.c_str(), cf, config);

5. 结束任务

在音视频互动中，你可以随时启动或停止合流转推。

java

swift

cpp

private void stopPushCDNStream() {
    rtcEngine.stopPushMixedStream(CDN_TASK_ID, MixedStreamPushTargetType.PUSH_TO_CDN);
  }

6. 离房

java

swift

cpp

private void leaveRoom() {
    if (rtcRoom != null) {
        rtcRoom.leaveRoom();
        rtcRoom.destroy();
        rtcRoom = null;
    }
}

7. 销毁引擎

java

swift

cpp

RTCEngine.destroyRTCEngine();

示例项目

常见问题

1. 如何在合流转推流中使用 SEI

SEI 是视频编码格式中的补充增强信息，和视频编码帧一起打包发送，因此可以达到和视频帧发送和解析同步的效果。转推任务发起成功后，画面布局和背景等信息作为 SEI 透传到 RTMP 流中。拉流端需要自行提取和解析 SEI，例如，更新画面布局。

合流接口中传递到直播流中的信息，会在合流 I 帧前重复发送。例如，合流布局不变更，重复发送相同 SEI 数据，当合流布局变更，触发一个最新的 SEI。
在开启/更新合流时，可以通过设置 layoutConfig.userConfigExtraInfo 来设置自定义 SEI 信息。详见发送和接收媒体补充增强信息。比如在直播答题场景中，在 SEI 中打包题目信息，每个人听到主播讲题时，同时看到对应的题目，不会因为不同延时导致题目出现的时间与讲解不匹配。

合流的 SEI 结构示例如下，其中，自定义消息为 app_data 的值。

{
    "app_data": "自定义消息",
    "canvas": {
        "bgnd": "#000000",
        "h": 640,
        "w": 360
    },
    "regions": [
        {
            "alpha": 1.0,
            "contentControl": 0,
            "height": 640,
            "locationX": 0,
            "locationY": 50,
            "renderMode": 1,
            "uid": "user_343",
            "width": 360,
            "zorder": 0
        }
    ],
    "ts": 1705994199709
}

2. 如何设置 task_id

当 APP 需要开启多个视频合流时，可以通过 task_id 来区分多个合流 ID。如果同时只有一个合流视频数据可以使用空字符串代替。
startPushMixedStream 和 stopPushMixedStream 的 task_id 需要成对出现。如果 task_id 不同，会导致合流不会关闭。

3. 如何处理发起端意外掉线后重新登录

在开启转推任务后，如果因为进行刷新页面等操作，造成应用端进程异常终止，则转推任务会在空闲时间超过设定值后自动停止，默认空闲超时时间为180s。
重启客户端重新登录后，需先调用 stopPushMixedStream 结束上一个任务，再开启新的转推任务，以免造成多个任务同时操作一个推流地址，导致新的转推任务失败。

4. 错误码

合流转推过程中返回的错误码详见各端 API 文档。

Android	iOS	Mac	Windows	Electron	Flutter	Web
`MixedStreamTaskErrorCode`	`ByteRTCMixedStreamTaskErrorCode`	`ByteRTCMixedStreamTaskErrorCode`	`MixedStreamTaskErrorCode`	`StreamMixingErrorCode`	`StreamMixingErrorCode`	`StreamMixingEventErrorCode`

5. 调用开启转推直播任务接口传入的用户离开房间后，转推直播任务是否会停止？

若未设置 TaskId：
该用户离开房间后，该任务会自动停止。
若设置 TaskId：
该用户离开房间任务不会停止。直至房间内无用户后，该任务会自动停止。
