画中画（Picture-in-Picture, PiP）功能允许用户在屏幕一角的小窗口中观看视频，同时在主屏幕上继续与其他应用或内容进行交互。适用于用户希望在浏览网页、回复消息或使用其他应用时，仍能保持视频播放不中断的场景。本文将指导您如何基于苹果官方的 AVPictureInPictureController 和 AVSampleBufferDisplayLayer，并结合播放器 SDK 的视频帧回调，实现高性能、无缝切换的画中画功能。

前提条件

• 设备系统版本：iOS 15 及以上版本

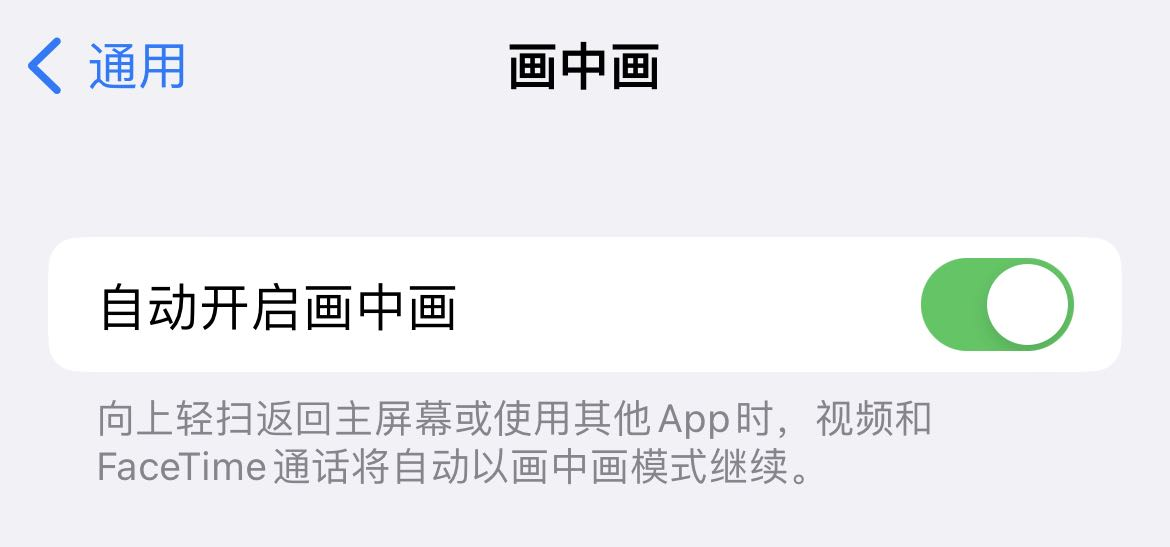

• 系统画中画设置：请确保用户已在设备的设置 > 通用 > 画中画页面中，开启了自动开启画中画 开关。


实现步骤

步骤 1：配置项目能力

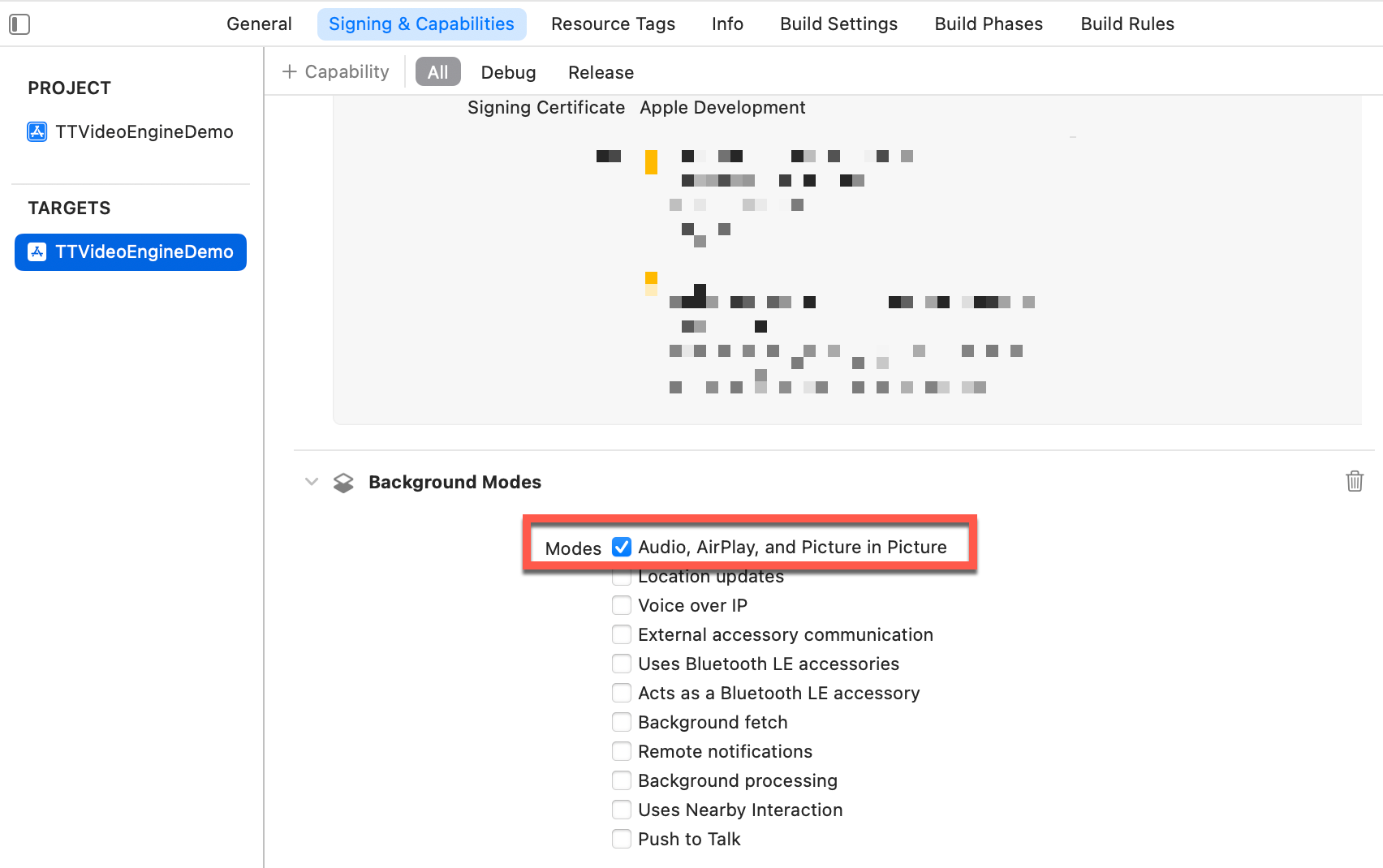

首先，您需要在 Xcode 项目中为您的应用开启画中画所需的后台模式。在 Xcode 项目中：

1. 选择 App 的 Target。
2. 单击 Signing & Capabilities 页签。
3. 单击 + Capability 按钮添加 Background Modes 功能，勾选 Audio, AirPlay, and Picture in Picture。


步骤 2：初始化画中画环境

在您的播放器 UIViewController 中，需要完成画中画所需的核心组件的初始化，包括配置音频会话、自定义渲染视图和画中画控制器。

// 自定义 DisplayView，提供 AVSampleBufferDisplayLayer
@implementation VideoPlayerPipDisplayView
+ (Class)layerClass {
    return [AVSampleBufferDisplayLayer class];
}
@end

// 配置 AudioSession，以便系统正确处理画中画模式下的音频播放。
- (void)__updateAudioSession {
    AVAudioSession *audioSession = [AVAudioSession sharedInstance];
    NSError *categoryError = nil;
    [audioSession setCategory:AVAudioSessionCategoryPlayback
                       mode:AVAudioSessionModeMoviePlayback
                    options:AVAudioSessionCategoryOptionOverrideMutedMicrophoneInterruption
                      error:&categoryError];
    if (categoryError) {
        NSLog(@"volc--set audio session category error: %@", categoryError.localizedDescription);
    }
    NSError *activeError = nil;
    [audioSession setActive:YES error:&activeError];
    if (activeError) {
        NSLog(@"volc--set audio session active error: %@", activeError.localizedDescription);
    }
}

// 创建并配置显示视图
- (void)__setupDisplayerView {
    self.displayView = [[VideoPlayerPipDisplayView alloc] init];
    self.displayView.userInteractionEnabled = NO;
    self.displayView.clipsToBounds = YES;
    self.displayLayer = (AVSampleBufferDisplayLayer *)self.displayView.layer;
    self.displayLayer.opaque = YES;
    self.displayLayer.videoGravity = AVLayerVideoGravityResizeAspect;
    [self.view addSubview:self.displayView];
    [self.displayView mas_makeConstraints:^(MASConstraintMaker *make) {
        make.edges.equalTo(self.view);
    }];
}

// 创建并配置 pipController
// AVPictureInPictureController 是 iOS 系统管理画中画生命周期的核心控制器，用来启动和停止画中画模式
- (void)__setupPipController {
    AVPictureInPictureControllerContentSource *contentSource = [[AVPictureInPictureControllerContentSource alloc] initWithSampleBufferDisplayLayer:self.displayLayer playbackDelegate:self];
    self.pipController = [[AVPictureInPictureController alloc] initWithContentSource:contentSource];
    self.pipController.canStartPictureInPictureAutomaticallyFromInline = YES;
    self.pipController.requiresLinearPlayback = YES;
    self.pipController.delegate = self;
}

步骤 3：接管并渲染视频帧

为了让主播放窗口和画中画窗口能共享同一份视频数据，您需要“接管”播放器解码后的视频帧 CVPixelBufferRef，然后手动将其渲染到您创建的 displayLayer 上。

1. 在您的 .m 文件顶部（或一个公共的工具类中）定义以下辅助函数。

   static inline void RunOnMainThread(void (^ _Nullable block)(void)) {
       if ([NSThread isMainThread]) {
           block();
       } else {
           dispatch_async(dispatch_get_main_queue(), block);
       }
   }


2. 添加设置视频帧回调、处理视频帧并将其送入渲染队列的核心逻辑：

   // --- 视频帧处理逻辑 ---
   // C 风格的回调函数，用于接收来自播放器 SDK 的视频帧
   static void processPixelBuffer(void *context, CVPixelBufferRef frame, int64_t timestamp) {
       // 将 context 桥接回 UIViewController 实例
       PipViewController *pSelf = (__bridge PipViewController*)context;
       // 将 CVPixelBufferRef 传递给 OC 方法进行处理
       [pSelf __dispatchPixelBuffer:frame];
   }

   // 视频帧回调的释放函数
   static void releasePixelBuffer(void *context) {
       NSLog(@"volc--Frame callback context released.");
   }

   // 调用此方法来设置视频帧回调。
   - (void)__startObserveVideoFrame {
       EngineVideoWrapper *wrapper = malloc(sizeof(EngineVideoWrapper));
       wrapper->process = processPixelBuffer;
       wrapper->release = releasePixelBuffer;
       wrapper->context = (__bridge void *)self;

       // 将这个 wrapper 设置给播放器引擎
       [self.videoEngine setVideoWrapper:wrapper];
   }

   // 将播放器回调的 CVPixelBufferRef 转换为 CMSampleBufferRef
   - (void)__dispatchPixelBuffer:(CVPixelBufferRef)pixelBuffer {
       if (!pixelBuffer) {
           return;
       }

       // 1. 根据 PixelBuffer 创建视频格式描述
       CMVideoFormatDescriptionRef videoInfo = NULL;
       OSStatus result = CMVideoFormatDescriptionCreateForImageBuffer(kCFAllocatorDefault, pixelBuffer, &videoInfo);
       NSParameterAssert(result == 0 && videoInfo != NULL);

       // 2. 创建一个不带具体时间的 Sample Timing Info
       CMSampleTimingInfo timing = {kCMTimeInvalid, kCMTimeInvalid, kCMTimeInvalid};

       // 3. 将 PixelBuffer 包装成 CMSampleBuffer
       CMSampleBufferRef sampleBuffer = NULL;
       result = CMSampleBufferCreateForImageBuffer(kCFAllocatorDefault, pixelBuffer, true, NULL, NULL, videoInfo, &timing, &sampleBuffer);
       NSParameterAssert(result == 0 && sampleBuffer != NULL);
       CFRelease(videoInfo);

       // 4. 设置 SampleBuffer 的附件，使其立即显示
       CFArrayRef attachments = CMSampleBufferGetSampleAttachmentsArray(sampleBuffer, YES);
       CFMutableDictionaryRef dict = (CFMutableDictionaryRef)CFArrayGetValueAtIndex(attachments, 0);
       CFDictionarySetValue(dict, kCMSampleAttachmentKey_DisplayImmediately, kCFBooleanTrue);

       // 5. 将 SampleBuffer 送入渲染队列
       [self enqueueSampleBuffer:sampleBuffer toLayer:self.displayLayer];

       // 6. 释放创建的 SampleBuffer
       CFRelease(sampleBuffer);
   }

   // 将 CMSampleBufferRef 安全地送入 AVSampleBufferDisplayLayer 的渲染队列
   - (void)enqueueSampleBuffer:(CMSampleBufferRef)sampleBuffer toLayer:(AVSampleBufferDisplayLayer*)layer {
       if (!sampleBuffer || !layer.readyForMoreMediaData) {
           NSLog(@"volc--sampleBuffer is invalid or layer is not ready. Skipping frame.");
           return;
       }
       // 兼容性处理：在某些系统版本，如果 Layer 状态异常，先 flush
       if (@available(iOS 16.0, *)) {
           if (layer.status == AVQueuedSampleBufferRenderingStatusFailed) {
               NSLog(@"volc--sampleBufferLayer failed with error: %@. Flushing layer.", layer.error);
               [layer flush];
           }
       } else {
           // 在较低版本上，更保守地在每次 enqueue 前 flush 可能有助于避免一些渲染问题
           [layer flush];
       }

       // 在 iOS 15 之前的版本，enqueueSampleBuffer 可能需要在主线程调用
       if (@available(iOS 15.0, *)) {
           [layer enqueueSampleBuffer:sampleBuffer];
       } else {
           RunOnMainThread(^{
               [layer enqueueSampleBuffer:sampleBuffer];
           });
       }
   }


步骤 4：开启或关闭画中画功能

在用户界面中添加画中画控制按钮，实现开启或关闭画中画功能。

1. 实现画中画切换方法：

   if (self.pipController.isPictureInPictureActive) {
       [self.pipController stopPictureInPicture];
   } else {
       [self.pipController startPictureInPicture];
   }


2. 将此方法绑定到用户界面上的画中画按钮。用户可以通过点击画中画按钮在全屏播放和画中画模式之间切换，实现视频内容的无缝观看体验。

完整示例代码

// 在支持画中画的 VC 中，实现TTVideoEngineDelegate、
// AVPictureInPictureSampleBufferPlaybackDelegate、
// AVPictureInPictureControllerDelegate
// 以便与画中画交互
@interface PipViewController () <TTVideoEngineDelegate, AVPictureInPictureSampleBufferPlaybackDelegate, AVPictureInPictureControllerDelegate>

@property (nonatomic, strong) TTVideoEngine* engine;
@property (nonatomic, strong) VideoPlayerPipDisplayView *displayView;
@property (nonatomic, strong) AVSampleBufferDisplayLayer *displayLayer;
@property (nonatomic, strong) AVPictureInPictureController *pipController;

@end

@implementation PipViewController

- (void)viewDidLoad {
    [super viewDidLoad];
    // Do any additional setup after loading the view.
    ...
    // 初始化画中画功能
    [self __updateAudioSession];
    [self __setupDisplayerView];
    [self __setupPipController];
    ...
}

- (void)play {
    // 设置播放源并播放
    ...
    // 接管视频帧
    [self __startObservingVideoFrame];
    ...
}

// 手动开启/关闭画中画
- (void)switchPip {
    if (self.pipController.isPictureInPictureActive) {
        [self.pipController stopPictureInPicture];
    } else {
        [self.pipController startPictureInPicture];
    }
}

#pragma mark - AVPictureInPictureSampleBufferPlaybackDelegate
- (void)pictureInPictureController:(nonnull AVPictureInPictureController *)pictureInPictureController didTransitionToRenderSize:(CMVideoDimensions)newRenderSize {

}

// 响应画中画播放按钮点击事件
- (void)pictureInPictureController:(nonnull AVPictureInPictureController *)pictureInPictureController setPlaying:(BOOL)playing {
    if (playing) {
        [self.engine play];
    } else {
        [self.engine pause];
    }
    RunOnMainThread(^{
        [self.pipController invalidatePlaybackState];
    });
}

// 响应画中画查询播放状态事件
- (BOOL)pictureInPictureControllerIsPlaybackPaused:(nonnull AVPictureInPictureController *)pictureInPictureController {
    TTVideoEnginePlaybackState state = self.engine.playbackState;
    if (state != TTVideoEnginePlaybackStatePaused && state != TTVideoEnginePlaybackStateStopped && state != TTVideoEnginePlaybackStateError) {
        return NO;
    }

    return YES;
}

// 响应画中画查询播放进度事件
- (CMTimeRange)pictureInPictureControllerTimeRangeForPlayback:(nonnull AVPictureInPictureController *)pictureInPictureController {
    TTVideoEnginePlaybackState state = self.engine.playbackState;
    if (state != TTVideoEnginePlaybackStatePlaying && state != TTVideoEnginePlaybackStatePaused) {
        return CMTimeRangeMake(CMTimeMake(0, 1), CMTimeMake(100, 1));
    }

    NSInteger pos = self.engine.currentPlaybackTime;
    NSInteger dura = self.engine.duration;
    NSInteger interval = dura - pos;
    NSInteger timeBase = CACurrentMediaTime();
    NSInteger start = timeBase - pos;
    NSInteger end = timeBase + interval;
    CMTime t1 = CMTimeMakeWithSeconds(start, 1);
    CMTime t2 = CMTimeMakeWithSeconds(end, 1);

    return CMTimeRangeFromTimeToTime(t1, t2);
}

#pragma mark - AVPictureInPictureControllerDelegate
- (void)pictureInPictureControllerDidStartPictureInPicture:(AVPictureInPictureController *)pictureInPictureController {
    // 进入画中画后，开启后台解码，确保 seek、播放下一集可以正常渲染画面
    [TTVideoEngine setGlobalForKey:VEGSKeyEnableBackgroundMode value:@(1)];
}

- (void)pictureInPictureControllerDidStopPictureInPicture:(AVPictureInPictureController *)pictureInPictureController {
    // 停止画中画后，关闭后台解码，防止占用系统资源
    [TTVideoEngine setGlobalForKey:VEGSKeyEnableBackgroundMode value:@(0)];
}

#pragma mark - TTVideoEngineDelegate
// 播放状态变化时，通知画中画更新状态
- (void)videoEngine:(TTVideoEngine *)videoEngine playbackStateDidChanged:(TTVideoEnginePlaybackState)playbackState {
    RunOnMainThread(^{
        [self.pipController invalidatePlaybackState];
    });
}
