Viking 长期记忆的 API 体系分为数据面 API 与控制面 API，两者在能力范围与鉴权方式上有所区别：

API Key 的获取 #

在记忆库控制台进入 API Key 页面，点击 创建 API Key 即可生成新的 Key。

创建时需配置以下内容：

• API Key 名称：用于区分不同用途的 Key。
• 可访问的记忆库范围：可选择当前项目下的一个或多个记忆库授予访问权限。

API Key 的权限管理 #

您可以随时在控制台调整 Key 的访问范围：

• 为现有 Key 新增更多记忆库访问权限
• 移除指定记忆库的访问权限
• 删除 Key

API Key 的鉴权代码 #

用 API Key 进行鉴权的示例代码可参考 API 文档。

AK/SK 密钥获取 #

在调用记忆库的各个能力之前，确保您已生成访问密钥 Access Key。Access Key 包括 Access Key ID（简称为 AK） 和 Access Key Secret（简称为 SK），其中，Access Key ID 用于标识用户，Access Key Secret 用于验证用户的密钥，请您妥善保管。
AK/SK 密钥获取方式如下，更多详情请参考 Access Key（密钥）管理。

1. 单击右上角账号名下拉框中的【API 访问密钥】进入对应页面。

2. 单击【新建密钥】按钮，可获取 AK/SK，可以此为凭证调用上述已接入应用的接口。


签名鉴权 #

签名是 API 请求中的一串经过计算得到的编码字符串，它用于身份认证和防止数据被篡改。

签名获取了就能一直用吗？ #

签名不像 ak、sk，每个请求的签名都是独立且临时的，一个签名只能用于一次特定的请求，不能长期固定使用。

签名由什么计算而来？ #

签名由签名生成函数 prepare_request 基于以下这些参数计算而来：

签名生成函数的各语言具体代码见下方说明。（如需了解通过源码生成签名的详情请参考签名源码示例，如需了解通过 SDK 生成签名的详情请参考 SDK 概览）。

Python 语言 SDK 生成签名 #

1. 安装火山引擎程序包。

   pip install volcengine


2. 生成签名。

   import json
   import sys
   import requests

   from volcengine.auth.SignerV4 import SignerV4
   from volcengine.base.Request import Request
   from volcengine.Credentials import Credentials

   def prepare_request(method, path, ak, sk, params=None, data=None, doseq=0):
       if params:
           for key in params:
               if (
                   type(params[key]) == int
                   or type(params[key]) == float
                   or type(params[key]) == bool
               ):
                   params[key] = str(params[key])
               # elif sys.version_info[0] != 3: # 在 Python 3.x 中，不需要这部分代码
               #     if type(params[key]) == unicode:
               #         params[key] = params[key].encode("utf-8")
               elif type(params[key]) == list:
                   if not doseq:
                       params[key] = ",".join(params[key])
       r = Request()
       r.set_shema("https")
       r.set_method(method)
       r.set_connection_timeout(10)
       r.set_socket_timeout(10)
       mheaders = {
           "Accept": "application/json",
           "Content-Type": "application/json",
       }
       r.set_headers(mheaders)
       if params:
           r.set_query(params)
       r.set_path(path)
       if data is not None:
           r.set_body(json.dumps(data))
       # 生成签名
       credentials = Credentials(ak, sk, "air", "cn-north-1")
       SignerV4.sign(r, credentials)
       return r


GO 语言 SDK 生成签名 #

1. 安装火山引擎程序包。

   go get -u github.com/volcengine/volc-sdk-golang


2. 生成签名。

   package main

   import (
           "bytes"
           "fmt"
           "net/http"
           "net/url"
           "strings"
           "io/ioutil"
           "github.com/volcengine/volc-sdk-golang/base"
   )

   const (
           testAk = "***"
           testSk = "***"
   )

   func PrepareRequest(method string, path string, ak string, sk string, query url.Values, body []byte) *http.Request {
           u := url.URL{
                   Scheme:   "https",
                   Host:     "api-knowledgebase.mlp.cn-beijing.volces.com",
                   Path:     "/api/knowledge/collection/search",
           }
           if query != nil {
                   u.RawQuery = query.Encode()
           }
           req, _ := http.NewRequest(strings.ToUpper(method), u.String(), bytes.NewReader(body))
           req.Header.Add("Accept", "application/json")
           req.Header.Add("Content-Type", "application/json")
           req.Header.Add("Host", "api-knowledgebase.mlp.cn-beijing.volces.com")
           credential := base.Credentials{
                   AccessKeyID:     ak,
                   SecretAccessKey: sk,
                   Service:         "air",
                   Region:          "cn-north-1",
           }
           req = credential.Sign(req)
           return req
   }


#

Java 语言 SDK 生成签名 #

1. 安装火山引擎程序包。

   <dependency>
       <groupId>com.volcengine</groupId>
       <artifactId>volc-sdk-java</artifactId>
       <version>最新版本</version>
   </dependency>

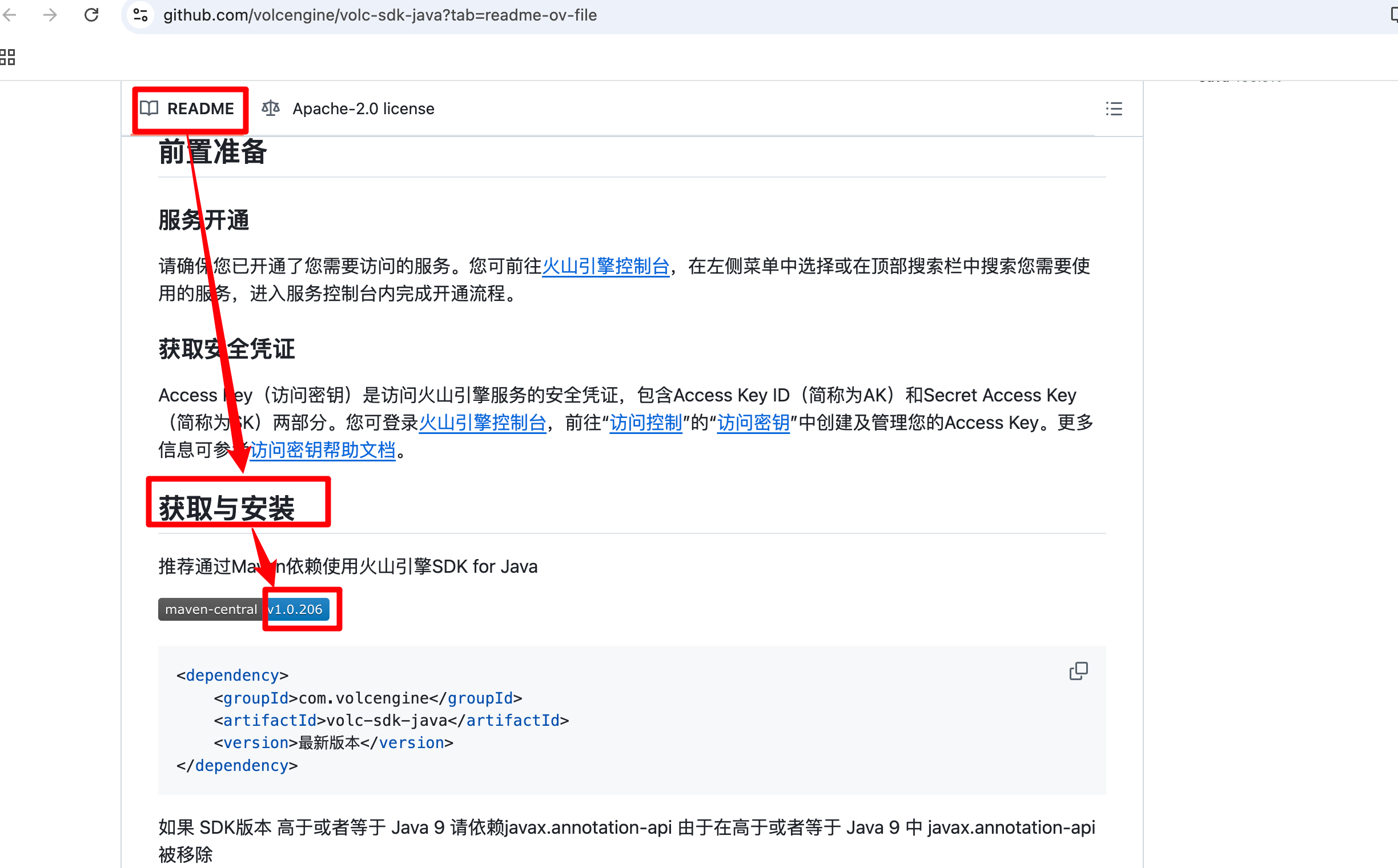

   “最新版本”的版本号可以在 GitHub 仓库的 README 文件的 “获取与安装” 部分找到，如下图所示。
   直接用版本号代码覆盖原“最新版本”即可，比如 1.0.206。


2. 生成签名。

   package javaTest;

   import java.util.List;

   import org.apache.http.HttpResponse;
   import org.apache.http.NameValuePair;
   import org.apache.http.client.HttpClient;
   import org.apache.http.client.config.RequestConfig;
   import org.apache.http.client.utils.URIBuilder;
   import org.apache.http.entity.StringEntity;
   import org.apache.http.impl.client.HttpClients;
   import org.apache.http.util.EntityUtils;

   import com.volcengine.auth.ISignerV4;
   import com.volcengine.auth.impl.SignerV4Impl;
   import com.volcengine.model.Credentials;
   import com.volcengine.service.SignableRequest;

   public class sign {
     public static SignableRequest prepareRequest(String host, String path, String method, List<NameValuePair> params, String body, String ak, String sk) throws Exception {
       SignableRequest request = new SignableRequest();
       request.setMethod(method);
       request.setHeader("Accept", "application/json");
       request.setHeader("Content-Type", "application/json");
       request.setHeader("Host", "api-knowledgebase.mlp.cn-beijing.volces.com");
       request.setEntity(new StringEntity(body, "utf-8"));

       URIBuilder builder = request.getUriBuilder();
       builder.setScheme("https");
       builder.setHost(host);
       builder.setPath(path);
       if (params != null) {
         builder.setParameters(params);
       }

       RequestConfig requestConfig = RequestConfig.custom().setSocketTimeout(5000).setConnectTimeout(2000).build();
       request.setConfig(requestConfig);

       Credentials credentials = new Credentials("cn-north-1", "air");
       credentials.setAccessKeyID(ak);
       credentials.setSecretAccessKey(sk);

       // 签名
       ISignerV4 ISigner = new SignerV4Impl();
       ISigner.sign(request, credentials);

       return request;
     }


Node.js 语言 SDK 生成签名 #

1. 安装火山引擎程序包。

   pnpm add @volcengine/openapi


2. 生成签名。
   注：调用函数 signer 生成请求体 header 后，将生成好的 header 注入到用户请求函数中。

   import { Signer } from '@volcengine/openapi';
   import type { RequestObj } from '@volcengine/openapi/lib/base/types';

   interface Options {
     pathname: string
     method: 'GET' | 'POST'
     body?: string // json 字符串，当且仅当 post 请求
     region: 'cn-beijing' | 'cn-shanghai'
     params?: Record<string, any> // 当且仅当 get 请求
   }

   function signer({ pathname, method, body, region, params }: Options) {
     const requestObj: RequestObj = {
      region,
      headers: {
        Accept: 'application/json',
        'Content-type': 'application/json'
      },
      method,
      body,
      pathname,
      params,
    }

     const signer = new Signer(requestObj, 'air')
       signer.addAuthorization({
         accessKeyId: 'ak', // 替换为用户 ak
         secretKey: 'sk', // 替换为用户 sk
     })
     return requestObj.headers
   }


C# 语言/PHP 语言通过源码生成签名 #

C#和 PHP 语言目前未提供 SDK 生成签名的方式，可参考对应的源码来生成签名：
C#：https://github.com/volcengine/volc-openapi-demos/blob/main/signature/csharp/Program.cs
PHP：https://github.com/volcengine/volc-openapi-demos/blob/main/signature/php/sign.php

API 调用示例 #

Python 语言调用示例 #

获取好 AK/SK 密钥后，可以将签名生成函数和具体接口调用写进同一个脚本文件中。这里给出将签名生成逻辑与创建记忆库接口对接的实践过程，以 Python 代码为例：
注：main 函数中的 'ak/sk' 参数即为您刚才申请到的 ak/sk

import json
import requests
from volcengine.base.Request import Request
from volcengine.Credentials import Credentials
from volcengine.auth.SignerV4 import SignerV4


AK = "your ak"
SK = "your sk"
Domain = "api-knowledgebase.mlp.cn-beijing.volces.com"


def prepare_request(method, path, ak, sk, data=None):
  r = Request()
  r.set_shema("http")
  r.set_method(method)
  r.set_host(Domain)
  r.set_path(path)


  if data is not None:
    r.set_body(json.dumps(data))
  credentials = Credentials(ak, sk, 'air', 'cn-north-1')
  SignerV4.sign(r, credentials)
  return r


def internal_request(method, api, payload, params=None):


  req = prepare_request(
                        method = method,
                        path = api,
                        ak = AK,
                        sk = SK,
                        data = payload)


  r = requests.request(method=req.method,
          url="{}://{}{}".format(req.schema, req.host, req.path),
          headers=req.headers,
          data=req.body,
          params=params,
      )
  return r

#创建记忆库逻辑
path = '/api/memory/collection/create'
playload = {
    'CollectionName': "my_first_memory_collection",
    'Description': "test description",
    "CustomEventTypeSchemas": [
        {
            "EventType": "english_study",
            "Description": "记录一次英语学习会话中助教与学生的问答及评分",
            "Properties": [
                {
                    "PropertyName": "knowledge_point_name",
                    "PropertyValueType": "string",
                    "Description": "当前对话涉及的知识点名称"
                },
                {
                    "PropertyName": "question",
                    "PropertyValueType": "string",
                    "Description": "助教提出的问题"
                },
                {
                    "PropertyName": "answer",
                    "PropertyValueType": "string",
                    "Description": "学生的回答"
                },
                {
                    "PropertyName": "rating_score",
                    "PropertyValueType": "float32",
                    "Description": "对学生回答的数值评分，满分为10分"
                }
            ]
        }
    ],
    'CustomProfileTypeSchemas': [
        {
            "ProfileType": "english_knowledge_point",
            "AssociatedEventTypes": ["english_study"],
            "Description": "用于追踪学生在特定英语知识点上的学习进展",
            "Properties": [
                {
                    "PropertyName": "id",
                    "PropertyValueType": "int64",
                    "Description": "知识点的唯一主键ID",
                    "IsPrimaryKey": True,
                    "UseProvided": True
                },
                {
                    "PropertyName": "knowledge_point_name",
                    "PropertyValueType": "string",
                    "Description": "知识点具体名称 (例如: \"天气相关词汇\")",
                    "UseProvided": True
                },
                {
                    "PropertyName": "good_evaluation_criteria",
                    "PropertyValueType": "string",
                    "Description": "判断回答为好的评判标准",
                    "UseProvided": True
                },
                {
                    "PropertyName": "rating_score_max",
                    "PropertyValueType": "float32",
                    "Description": "在该知识点上获得过的最高数值评分",
                    "AggregateExpression": {
                        "Op": "MAX",
                        "EventType": "english_study",
                        "EventPropertyName": "rating_score"
                    }
                }
            ]
        }
    ]
}
rsp = internal_request('POST', path, playload)
print(rsp.json())

Java 语言调用示例 #

鉴权

• 安装火山引擎程序包

<dependency>
    <groupId>com.volcengine</groupId>
    <artifactId>volc-sdk-java</artifactId>
    <version>最新版本</version>
</dependency>

“最新版本”的版本号可以在 GitHub 仓库的 README 文件的 “获取与安装” 部分找到，如下图所示。
直接用版本号代码覆盖原“最新版本”即可，比如 1.0.206。

创建记忆库

package org.example;

import com.fasterxml.jackson.annotation.JsonProperty;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.volcengine.auth.ISignerV4;
import com.volcengine.auth.impl.SignerV4Impl;
import com.volcengine.model.Credentials;
import com.volcengine.service.SignableRequest;
import lombok.Data;
import org.apache.http.Header;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.HttpClient;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.client.utils.URIBuilder;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;

import java.net.URI;
import java.util.*;

public class Main {
    public static final String HOST = "api-knowledgebase.mlp.cn-beijing.volces.com"; // 域名

    public static final String AK = "your ak";
    public static final String SK = "your sk";

    public static String toJson(Object obj) {
        try {
            // 创建 ObjectMapper 实例
            ObjectMapper objectMapper = new ObjectMapper();
            // 将对象转换为 JSON 字符串
            return objectMapper.writeValueAsString(obj);
        } catch (Exception e) {
            e.printStackTrace();
        }
        return null;
    }

    public static SignableRequest prepareRequest(String host, String path, String method, List<NameValuePair> params, String body, String ak, String sk) throws Exception {
        SignableRequest request = new SignableRequest();
        request.setMethod(method);
        request.setHeader("Accept", "application/json");
        request.setHeader("Content-Type", "application/json");
        request.setHeader("Host", HOST);
        request.setEntity(new StringEntity(body, "utf-8"));

        URIBuilder builder = request.getUriBuilder();
        builder.setScheme("https");
        builder.setHost(host);
        builder.setPath(path);
        if (params != null) {
            builder.setParameters(params);
        }

        RequestConfig requestConfig = RequestConfig.custom().setSocketTimeout(120000).setConnectTimeout(12000).build();
        request.setConfig(requestConfig);

        Credentials credentials = new Credentials("cn-north-1", "air");
        credentials.setAccessKeyID(ak);
        credentials.setSecretAccessKey(sk);

        // 签名
        ISignerV4 ISigner = new SignerV4Impl();
        ISigner.sign(request, credentials);

        return request;
    }

    public static String CreateCollection(Map<String, Object> request) throws Exception {
        String requestJson = toJson(request);
        try {
            SignableRequest signableRequest = prepareRequest(HOST, "/api/memory/collection/create", "POST", null, requestJson, AK, SK);
            URI uri = new URIBuilder()
                    .setScheme("https")
                    .setHost(HOST)
                    .setPath("/api/memory/collection/create")
                    .build();

            HttpPost httpPost = new HttpPost(uri);
            httpPost.setConfig(signableRequest.getConfig());
            httpPost.setEntity(signableRequest.getEntity());
            for (Header header : signableRequest.getAllHeaders()) {
                httpPost.setHeader(header.getName(), header.getValue());
            }

            HttpClient httpClient = HttpClients.createDefault();
            HttpResponse response = httpClient.execute(httpPost);

            int statusCode = response.getStatusLine().getStatusCode();
            String responseBody = EntityUtils.toString(response.getEntity());

            return responseBody;
        } catch (Exception e) {
            e.printStackTrace();
            throw e;
        }
    }

    public static void main(String[] args) throws Exception {
        Map<String, Object> STUDY_MEMORY = new LinkedHashMap<>();
        STUDY_MEMORY.put("EventType", "study_demo");
        STUDY_MEMORY.put("Version", "1");
        STUDY_MEMORY.put("Description", "assistant正在教user学习，记录下所有assistant的问题和user的回答，并给每个回答打分，如果知识点在knowledge_point_demo中不存在，就忽略这个问题，确保所有字段都有值");
        List<Map<String, Object>> properties = new ArrayList<>();
        properties.add(Map.of(
                "PropertyName", "knowledge_point_name",
                "PropertyValueType", "string",
                "Description", "收集到的知识点",
                "DefaultValue", ""
        ));
        properties.add(Map.of(
                "PropertyName", "question",
                "PropertyValueType", "string",
                "Description", "assistant的原始问题",
                "DefaultValue", ""
        ));
        properties.add(Map.of(
                "PropertyName", "answer",
                "PropertyValueType", "string",
                "Description", "user的原始回答",
                "DefaultValue", ""
        ));
        properties.add(Map.of(
                "PropertyName", "is_user_answered",
                "PropertyValueType", "bool",
                "Description", "user是否对问题做了回答",
                "DefaultValue", false
        ));
        properties.add(Map.of(
                "PropertyName", "rating",
                "PropertyValueType", "string",
                "Description", "给user的回答打分，值为'bad', 'good'中的一种",
                "DefaultValue", "good"
        ));
        properties.add(Map.of(
                "PropertyName", "rating_reasoning",
                "PropertyValueType", "string",
                "Description", "打分的依据",
                "DefaultValue", ""
        ));
        properties.add(Map.of(
                "PropertyName", "issues",
                "PropertyValueType", "list<string>",
                "Description", "需要关注的点，最多保留3个",
                "DefaultValue", new ArrayList<>()
        ));
        properties.add(Map.of(
                "PropertyName", "rating_score",
                "PropertyValueType", "int64",
                "Description", "值为0或1，表示给user的回答打分，分别对应0:bad, 1:good",
                "DefaultValue", 0
        ));
        properties.add(Map.of(
                "PropertyName", "has_been_taught",
                "PropertyValueType", "int64",
                "Description", "是否给用户教学了该知识点，如果是，返回1，否则返回0",
                "DefaultValue", 0
        ));
        properties.add(Map.of(
                "PropertyName", "is_answer_good",
                "PropertyValueType", "int64",
                "Description", "是否回答正确，如果是，返回1，否则返回0",
                "DefaultValue", 0
        ));
        properties.add(Map.of(
                "PropertyName", "is_answer_bad",
                "PropertyValueType", "int64",
                "Description", "是否回答错误，如果是，返回1，否则返回0",
                "DefaultValue", 1
        ));
        STUDY_MEMORY.put("Properties", properties);
        STUDY_MEMORY.put("ValidationExpression", "is_user_answered==True");


        Map<String, Object> KNOWLEDGE_POINT_DEMO = new LinkedHashMap<>();
        KNOWLEDGE_POINT_DEMO.put("ProfileType", "knowledge_point_demo");
        KNOWLEDGE_POINT_DEMO.put("Version", "1");
        KNOWLEDGE_POINT_DEMO.put("AssociatedEventTypes", List.of("study_demo"));
        KNOWLEDGE_POINT_DEMO.put("Role", "user");
        KNOWLEDGE_POINT_DEMO.put("Description", "知识点");
        List<Map<String, Object>> profileProperties = new ArrayList<>();
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "id");
            put("PropertyValueType", "string");
            put("Description", "主键");
            put("IsPrimaryKey", true);
            put("UseProvided", true);
            put("AggregateExpression", null);
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "knowledge_point_desc");
            put("PropertyValueType", "string");
            put("Description", "知识点的描述，必填");
            put("IsPrimaryKey", false);
            put("UseProvided", true);
            put("AggregateExpression", null);
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "knowledge_point_name");
            put("PropertyValueType", "string");
            put("Description", "知识点的名称");
            put("IsPrimaryKey", true);
            put("UseProvided", true);
            put("AggregateExpression", null);
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "difficulty_level");
            put("PropertyValueType", "list<int64>");
            put("Description", "知识点的难度级别1到5之间的一个数字，1最简单，5最难，必填");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", null);
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "knowledge_start_time");
            put("PropertyValueType", "int64");
            put("Description", "知识点第一次教学的时间，记录第一次教学的时间，时间为年月日时分秒");
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "rating_score_max");
            put("PropertyValueType", "float32");
            put("Description", "打分最高值");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", Map.of(
                    "Op", "MAX",
                    "EventType", "study_demo",
                    "EventPropertyName", "rating_score"
            ));
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "has_been_taught");
            put("PropertyValueType", "int64");
            put("Description", "是否给用户讲解了该知识点");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", Map.of(
                    "Op", "MAX",
                    "EventType", "study_demo",
                    "EventPropertyName", "has_been_taught"
            ));
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "answer_good_count");
            put("PropertyValueType", "int64");
            put("Description", "回答正确的数量");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", Map.of(
                    "Op", "SUM",
                    "EventType", "study_demo",
                    "EventPropertyName", "is_answer_good"
            ));
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "answer_bad_count");
            put("PropertyValueType", "int64");
            put("Description", "回答错误的数量");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", Map.of(
                    "Op", "SUM",
                    "EventType", "study_demo",
                    "EventPropertyName", "is_answer_bad"
            ));
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "rating_score_sum");
            put("PropertyValueType", "float32");
            put("Description", "打分总和");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", Map.of(
                    "Op", "SUM",
                    "EventType", "study_demo",
                    "EventPropertyName", "rating_score"
            ));
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "issues");
            put("PropertyValueType", "list<string>");
            put("Description", "需要关注的点，最多保留5个");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", Map.of(
                    "Op", "LLM_MERGE",
                    "EventType", "study_demo",
                    "EventPropertyName", "issues"
            ));
            put("DefaultValue", null);
        }});
        profileProperties.add(new LinkedHashMap<String, Object>() {{
            put("PropertyName", "count");
            put("PropertyValueType", "int64");
            put("Description", "数量");
            put("IsPrimaryKey", false);
            put("UseProvided", false);
            put("AggregateExpression", Map.of(
                    "Op", "COUNT",
                    "EventType", "study_demo",
                    "EventPropertyName", "rating_score"
            ));
            put("DefaultValue", null);
        }});
        KNOWLEDGE_POINT_DEMO.put("Properties", profileProperties);

        // 构建请求 payload
        Map<String, Object> payload = new LinkedHashMap<>();
        payload.put("CollectionName", "test_memory");
        payload.put("Description", "test description");
        payload.put("BuiltinEventTypes", List.of("sys_event_v1"));
        payload.put("CustomEventTypeSchemas", List.of(STUDY_MEMORY));
        payload.put("CustomProfileTypeSchemas", List.of(KNOWLEDGE_POINT_DEMO));

        System.out.println(CreateCollection(payload));
    }
}
