本文中React Native简称“RN”

安装RN可参考文档RN环境安装参考

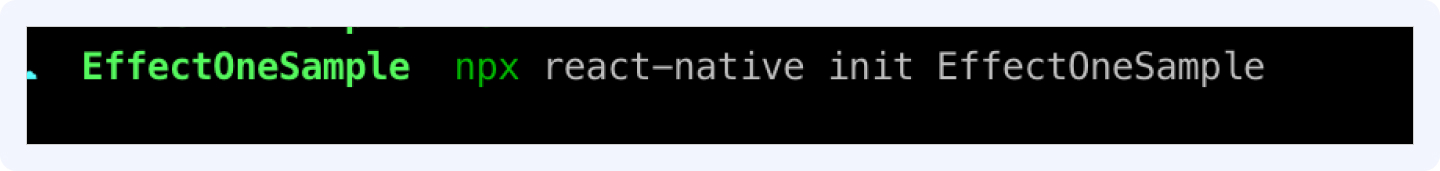

2.1 打开终端，进入到需要创建的RN项目所在的目录，执行命令：npx react-native init XXX初始化RN项目。

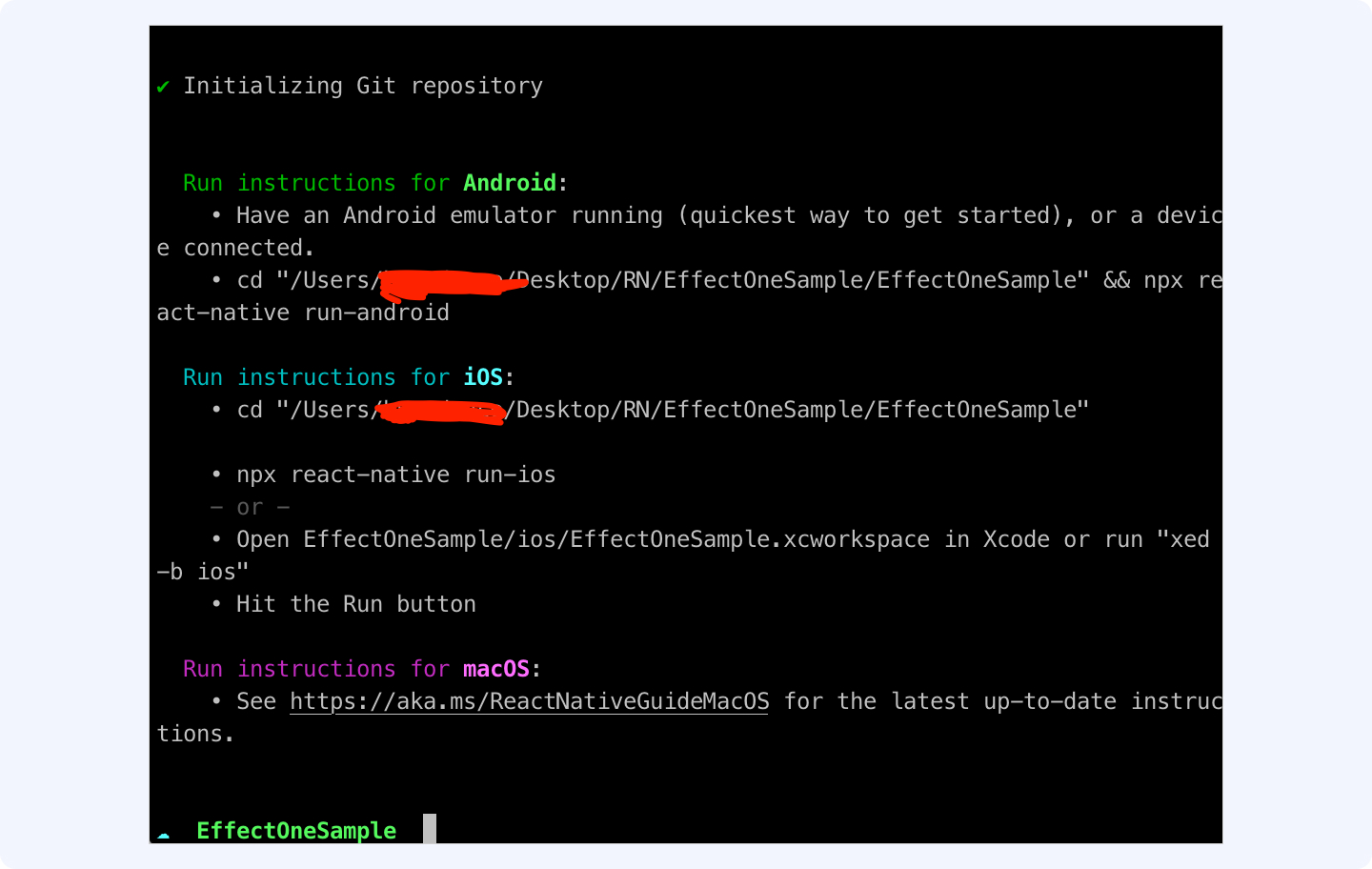

2.2 至此创建RN项目结束

2.3 运行 npm install 安装项目所需的依赖项.

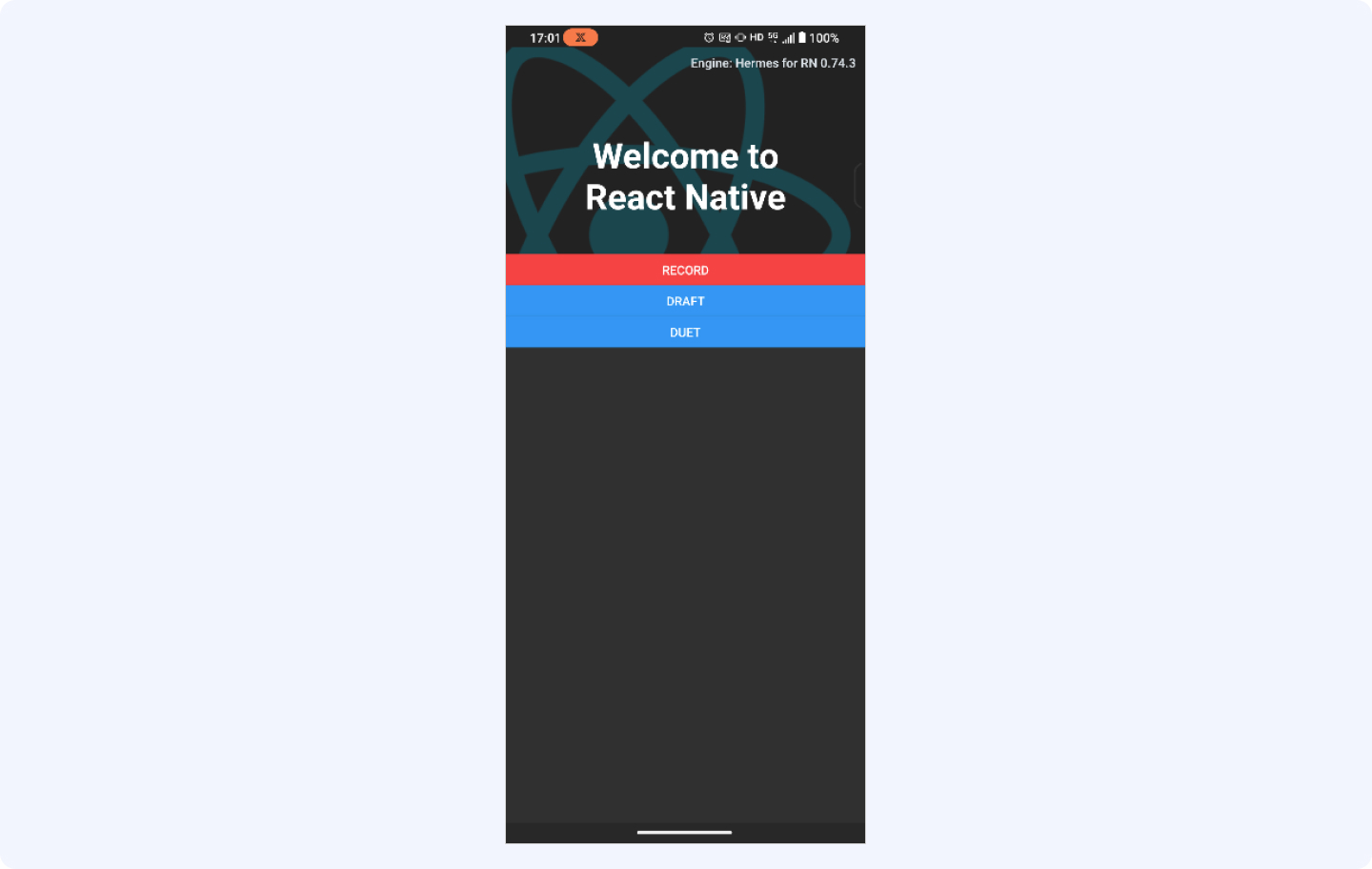

3.1 添加拍摄、草稿箱、视频合拍按钮

3.2 代码简析

RNEffectModule、reacNativeWithActionName

RNEffectModule是RN与原生Android交互的类，负责处理按钮点击与A交互；
reacNativeWithActionName是按钮点击的方法，通过传递的参数（Record、Draft、Duet）来确定点击的是哪个按钮

3.3 参考代码

/**
 * Sample React Native App
 * https://github.com/facebook/react-native
 *
 * @format
 */

import React from 'react';
import type {PropsWithChildren} from 'react';

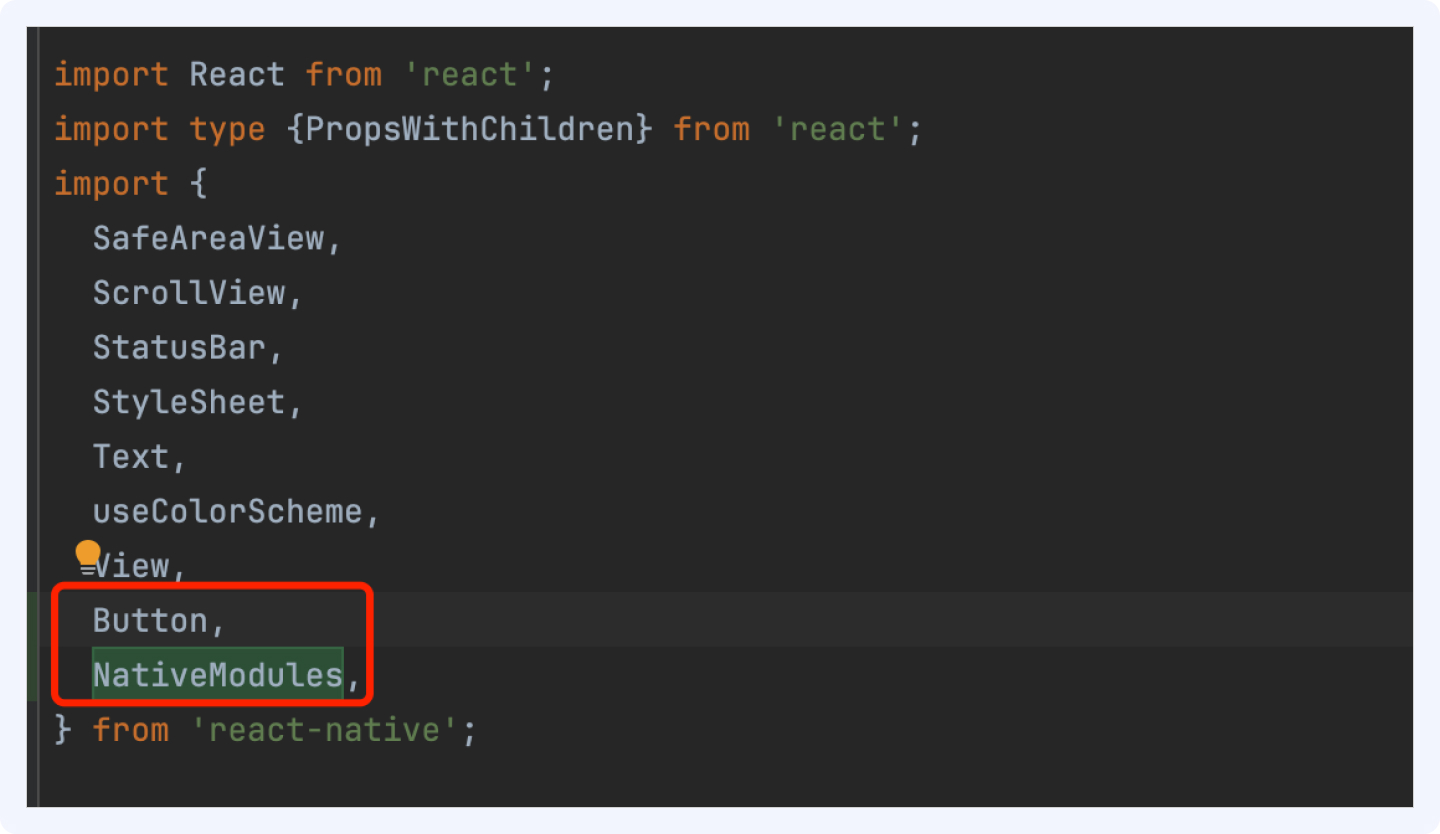

import {
  SafeAreaView,
  ScrollView,
  StatusBar,
  StyleSheet,
  Text,
  useColorScheme,
  View,
  Button,
  NativeModules,//RN与原生交互模型
} from 'react-native';

import {
  Colors,
  DebugInstructions,
  Header,
  LearnMoreLinks,
  ReloadInstructions,
} from 'react-native/Libraries/NewAppScreen';

import {
  RNLocalize,
} from 'react-native-localize';


type SectionProps = PropsWithChildren<{
  title: string;
}>;
<StatusBar barStyle="light-content" backgroundColor="#7b1fa2" />
function Section({children, title}: SectionProps): React.JSX.Element {
  const isDarkMode = useColorScheme() === 'dark';
  return (
    <View style={styles.sectionContainer}>

    </View>
  );
}

function App(): React.JSX.Element {
  const isDarkMode = useColorScheme() === 'dark';

  const backgroundStyle = {
    backgroundColor: isDarkMode ? Colors.darker : Colors.lighter,
  };

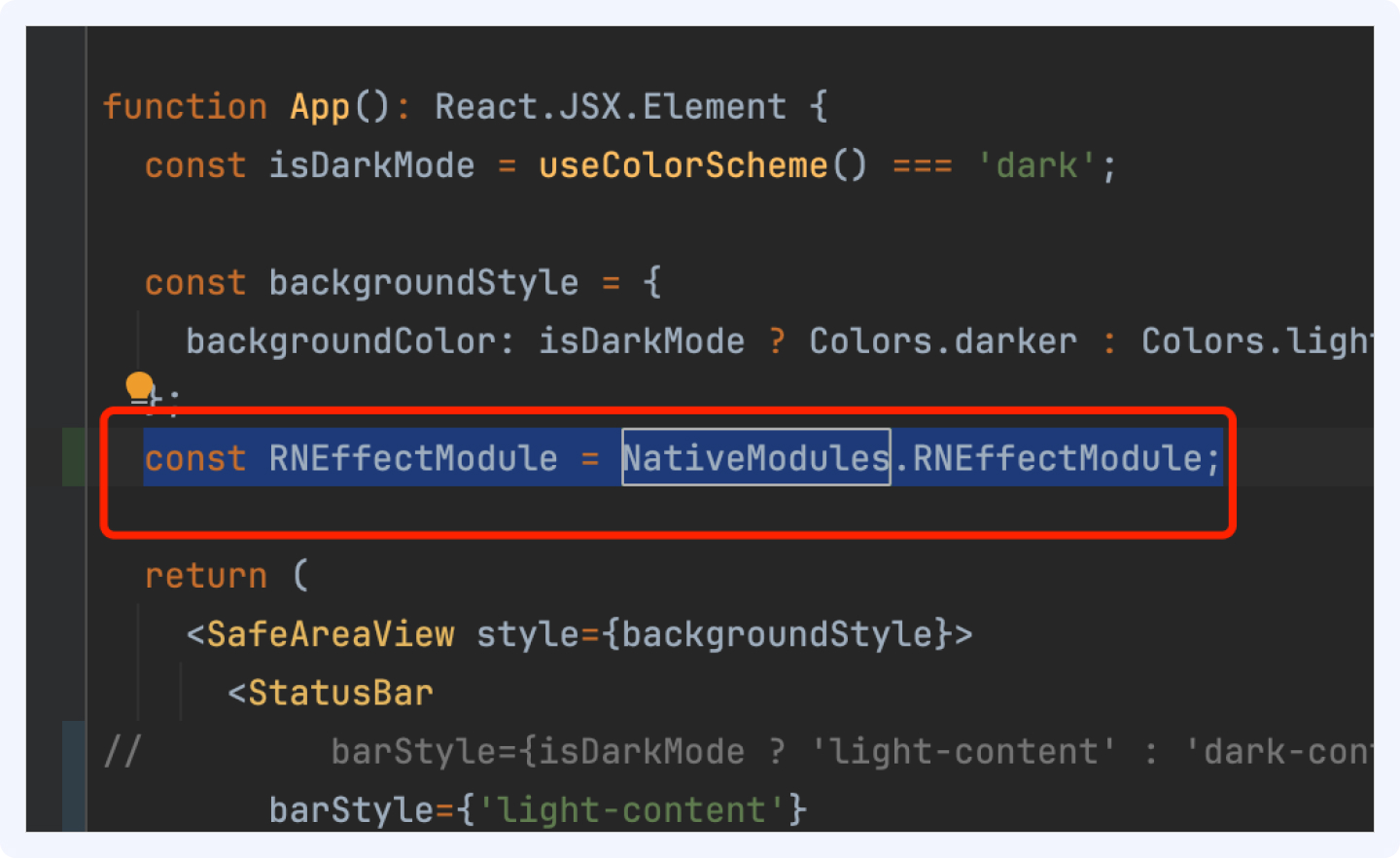

  //构造原生交互模型
  const RNEffectModule = NativeModules.RNEffectModule;

  return (
    <SafeAreaView style={backgroundStyle}>
      <StatusBar
//         barStyle={isDarkMode ? 'light-content' : 'dark-content'}
        barStyle={'light-content'}
        backgroundColor={backgroundStyle.backgroundColor}
      />
      <ScrollView
        contentInsetAdjustmentBehavior="automatic"
        style={backgroundStyle}>
        <Header />
        <View
          style={{
            backgroundColor: isDarkMode ? Colors.black : Colors.white,
          }}>

        </View>

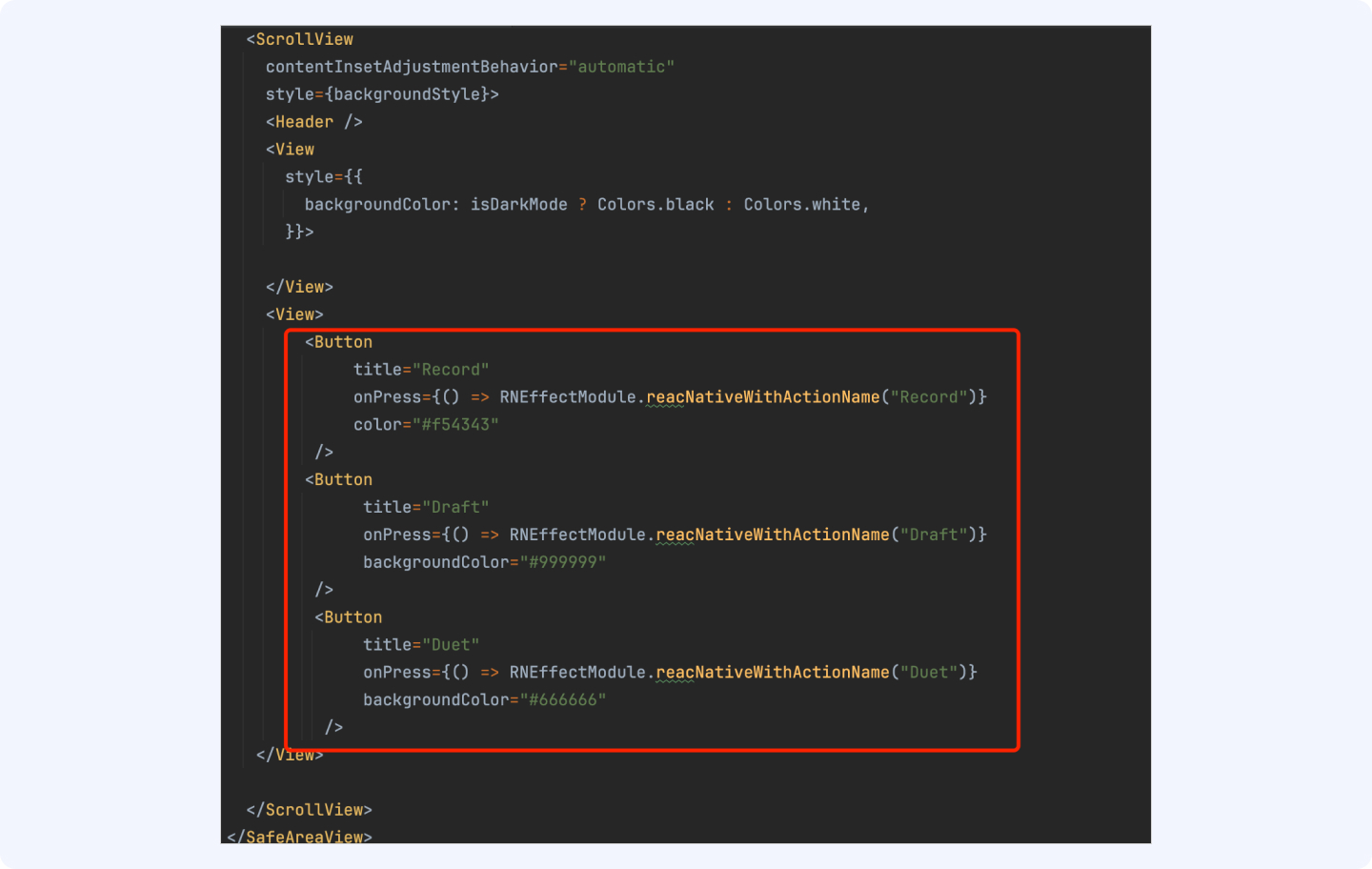

        <View>

            <Button
                 //拍摄按钮
                 title="Record"
                 onPress={() => RNEffectModule.reacNativeWithActionName("Record")}
                 color="#f54343"
             />
            <Button
                  //草稿箱按钮
                  title="Draft"
                  onPress={() => RNEffectModule.reacNativeWithActionName("Draft")}
                  backgroundColor="#999999"
             />
             <Button
                 //视频合拍按钮
                  title="Duet"
                  onPress={() => RNEffectModule.reacNativeWithActionName("Duet")}
                  backgroundColor="#666666"
              />
       </View>

      </ScrollView>
    </SafeAreaView>
  );
}

const styles = StyleSheet.create({
  sectionContainer: {
    marginTop: 32,
    paddingHorizontal: 24,
  },
  sectionTitle: {
    fontSize: 24,
    fontWeight: '600',
  },
  sectionDescription: {
    marginTop: 8,
    fontSize: 18,
    fontWeight: '400',
  },
  highlight: {
    fontWeight: '1700',
  },
});

export default App;

具体Android集成配置参考标准集成文档快速接入, 本文只说明与Android原生集成桥接的部分和需要注意的事项。

4.1 添加RN桥接原生接口文件

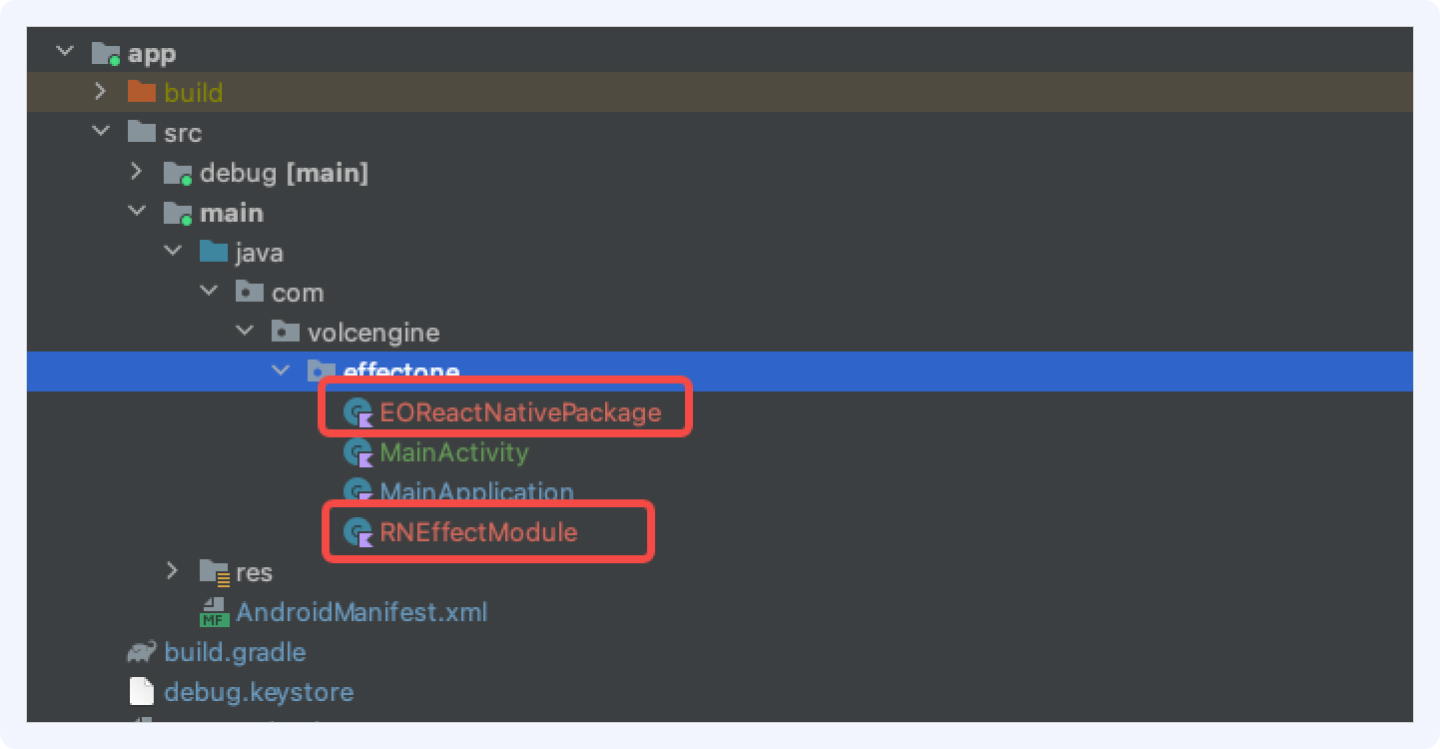

• 参考Demo中app Module下的RNEffectModule.kt(接收RN对应响应事件) 和 EOReactNativePackage.kt(注册原生模块)



• 桥接文件对应代码实现

RNEffectModule.kt

package com.volcengine.effectone

import androidx.fragment.app.FragmentActivity
import com.facebook.react.bridge.ReactApplicationContext
import com.facebook.react.bridge.ReactContextBaseJavaModule
import com.facebook.react.bridge.ReactMethod
import com.volcengine.effectone.business.EODuetInitHelper
import com.volcengine.effectone.business.EOQuickInitHelper
import com.volcengine.effectone.business.R
import com.volcengine.effectone.utils.runOnUiThread
import com.volcengine.effectone.widget.EOToaster

class RNEffectModule(reactContext: ReactApplicationContext?) :
    ReactContextBaseJavaModule(reactContext) {

    companion object {
        private const val TAG = "RNEffectModule"
    }

    private val reactContext = reactContext

    override fun getName(): String {
        return "RNEffectModule"
    }

    @ReactMethod
    fun reacNativeWithActionName(actionName: String) {
        runOnUiThread  {
            when (actionName) {
                "Record" -> {
                    if (MainActivity.authResult) {
                        reactContext?.currentActivity?.let  {
                            EOQuickInitHelper.startRecorder(it  as FragmentActivity)
                        }
                    } else {
                        reactContext?.currentActivity?.let  {
                            EOToaster.show(it, R.string.eo_frontpage_auth_fail)
                        }
                    }
                }
                "Draft" -> {
                    if (MainActivity.authResult) {
                        reactContext?.currentActivity?.let  {
                            EOQuickInitHelper.startDraft(it  as FragmentActivity)
                        }
                    } else {
                        reactContext?.currentActivity?.let  {
                            EOToaster.show(it, R.string.eo_frontpage_auth_fail)
                        }
                    }
                }
                "Duet" -> {
                    if (MainActivity.authResult) {
                        reactContext?.currentActivity?.let  {
                            EODuetInitHelper.startDuet(it  as FragmentActivity)
                        }
                    } else {
                        reactContext?.currentActivity?.let  {
                            EOToaster.show(it, R.string.eo_frontpage_auth_fail)
                        }
                    }
                }
            }
        }
    }
}

EOReactNativePackage.kt

package com.volcengine.effectone

import android.view.View
import com.facebook.react.ReactPackage
import com.facebook.react.bridge.NativeModule
import com.facebook.react.bridge.ReactApplicationContext
import com.facebook.react.uimanager.ReactShadowNode
import com.facebook.react.uimanager.ViewManager

class EOReactNativePackage: ReactPackage {

    override fun createNativeModules(reactApplicationContext: ReactApplicationContext): MutableList<NativeModule> {
        return mutableListOf(RNEffectModule(reactApplicationContext))
    }

    override fun createViewManagers(p0: ReactApplicationContext): MutableList<ViewManager<View, ReactShadowNode<*>>> {
        return mutableListOf()
    }
}

4.2 注意事项

• 使用EOQuickInitHelper.kt 接口启动对应界面时, 因为有请求权限的逻辑, 要保证在UI或主线程中使用.

• 使用EOQuickInitHelper.kt 接口启动对应界面时, 接口参数是FragmentActivity, 如果当前的是ReactActivity()可以强转一下。

  @ReactMethod
     fun reacNativeWithActionName(actionName: String) {
         runOnUiThread {
             when (actionName) {
                 "Record" -> {
                     if (MainActivity.authResult) {
                         reactContext?.currentActivity?.let  {
                             EOQuickInitHelper.startRecorder(it as FragmentActivity)
                         }
                     } else {
                         reactContext?.currentActivity?.let  {
                             EOToaster.show(it, R.string.eo_frontpage_auth_fail)
                         }
                     }
                 }
                 ......
             }
         }
     }


• JDK版本和Kotlin版本要根据RN支持的版本进行动态修改, 修改Demo种version.gradle文件中的版本配置。

  • 文档Demo中要去修改gradle.properties配置中org.gradle.java.home jdk环境的路径. 指定项目的编译jdk的版本路径防止编译时使用的环境与项目不匹配.

• setting.gradle中修改EffectOne maven仓库的配置模式改为RepositoriesMode.PREFER_SETTINGS,优先仓库的配置。

  dependencyResolutionManagement {
      repositoriesMode.set(RepositoriesMode.PREFER_SETTINGS)
      repositories {
          google()
          mavenCentral()
          maven {
              url 'https://artifact.bytedance.com/repository/Volcengine/'
          }
          maven {
              url "https://artifact.bytedance.com/repository/thrall_ck/"
              credentials {
                  username = MAVEN_USER_NAME
                  password = MAVEN_PASS_WORD
              }
              authentication {
                  digest(BasicAuthentication)
              }
                  }
          }
  }

  ......


• 运行文档中Demo时要注意配置MAVEN_USER_NAME和MAVEN_PASS_WORD, 否则无法拉取EffectOne的SDK。

在模拟器运行时，终端RN项目根目录下，执行npx react-native run-android或者yarn npx react-native run-android（如果安装了yarn）。
