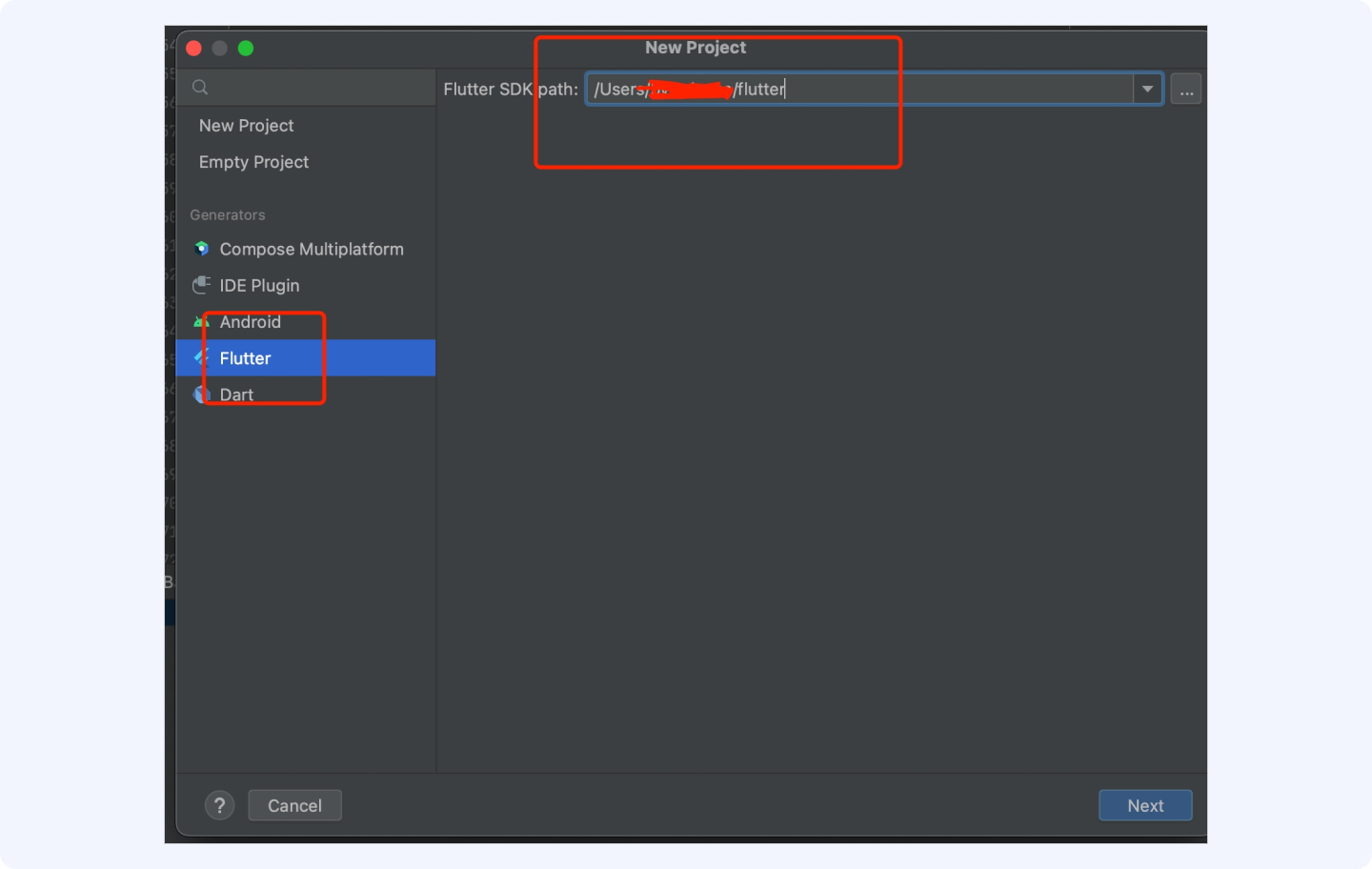

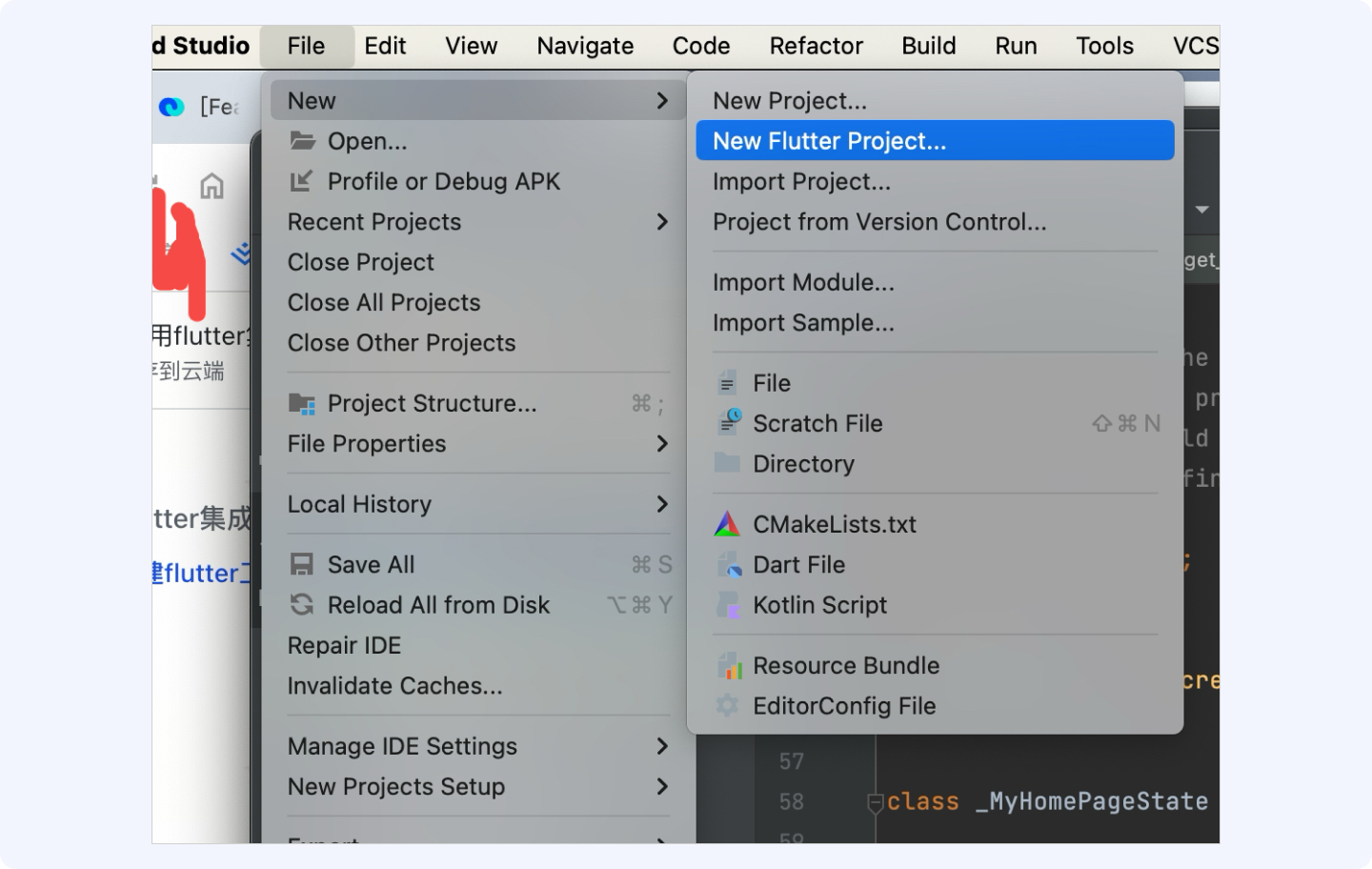

打开Android Studio 开发工具，点击菜单栏的File

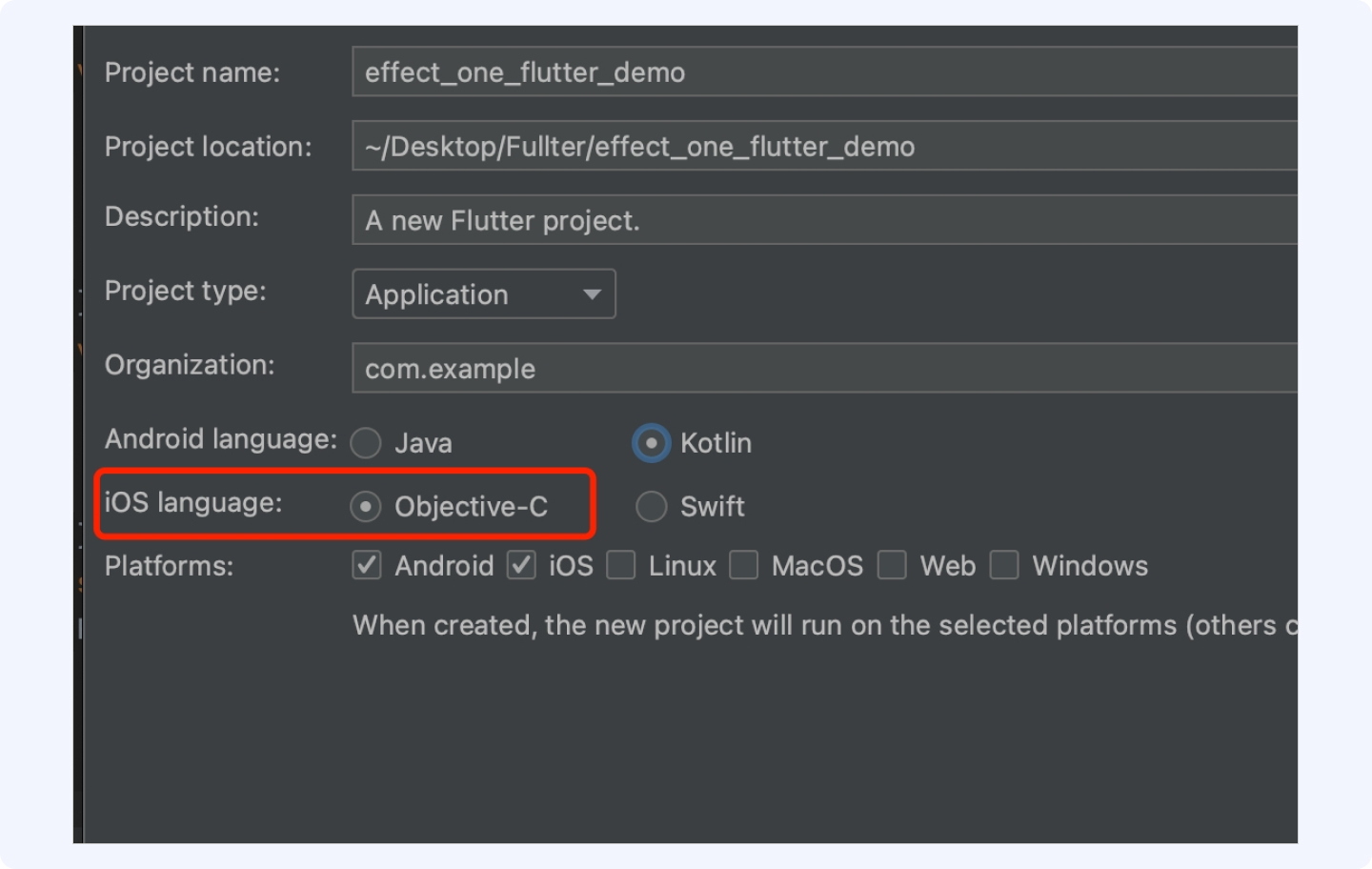

iOS开发语言使用Objective-C

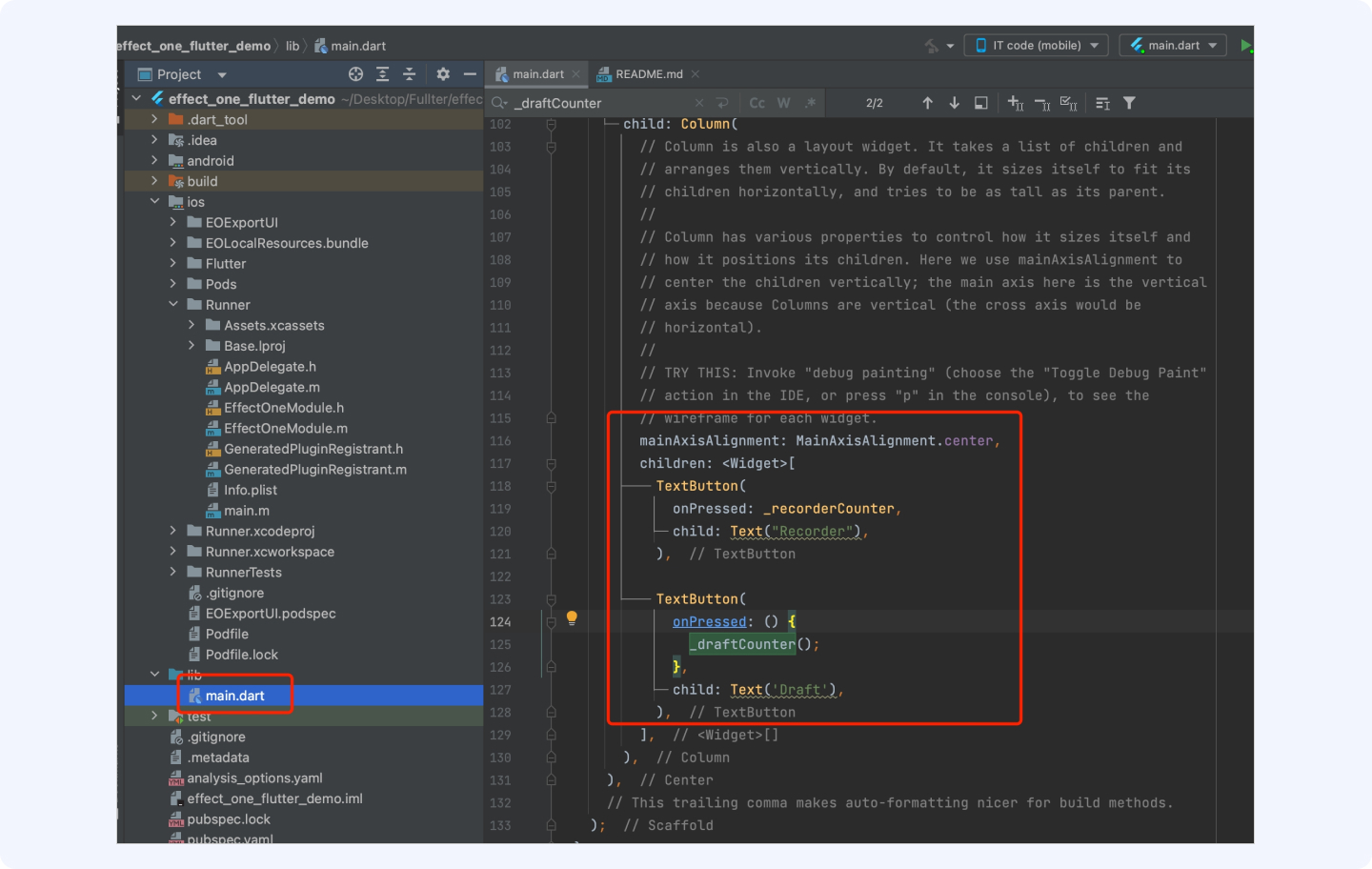

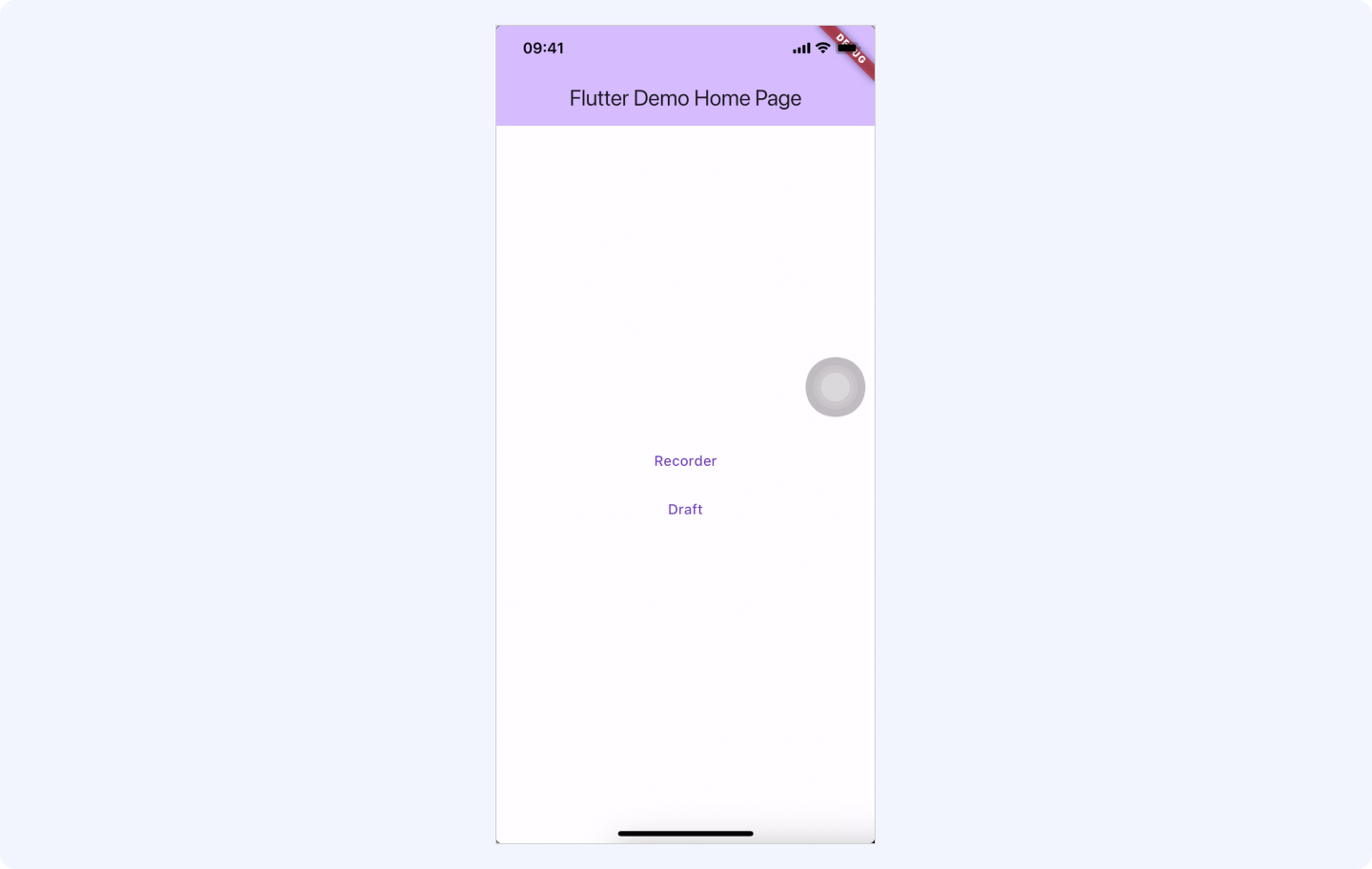

2.1 在flutter项目中main.dart中添加按钮，如下图所示

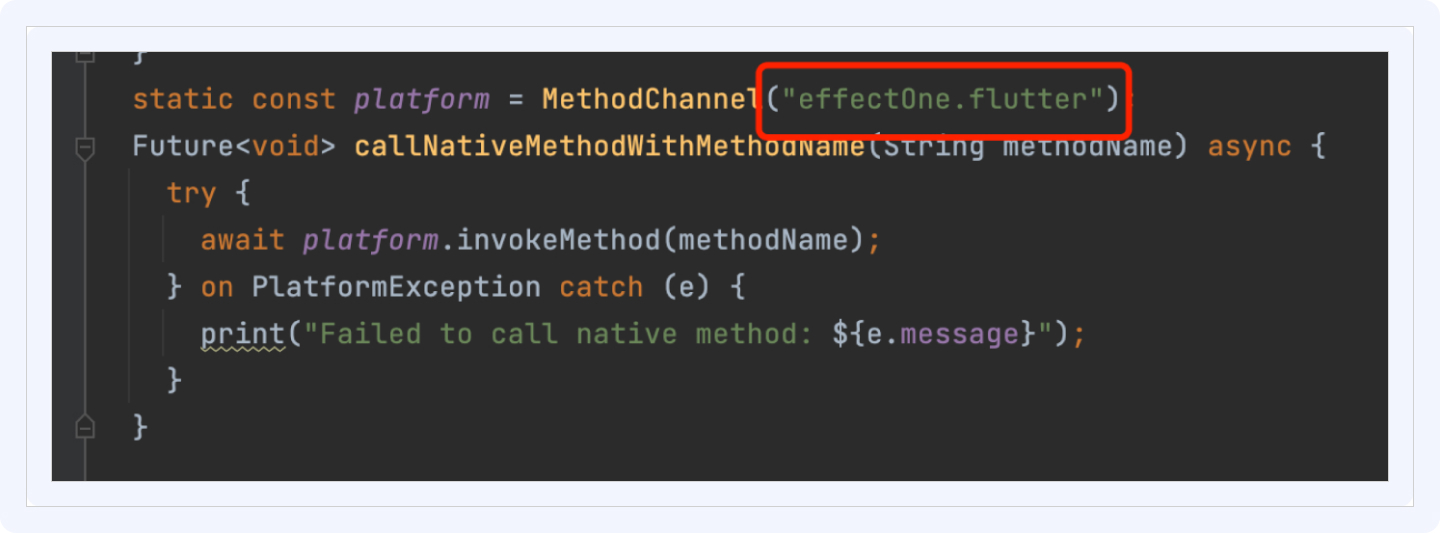

2.2 构建flutter与原生通信模型

通道命名为：effectOne.flutter

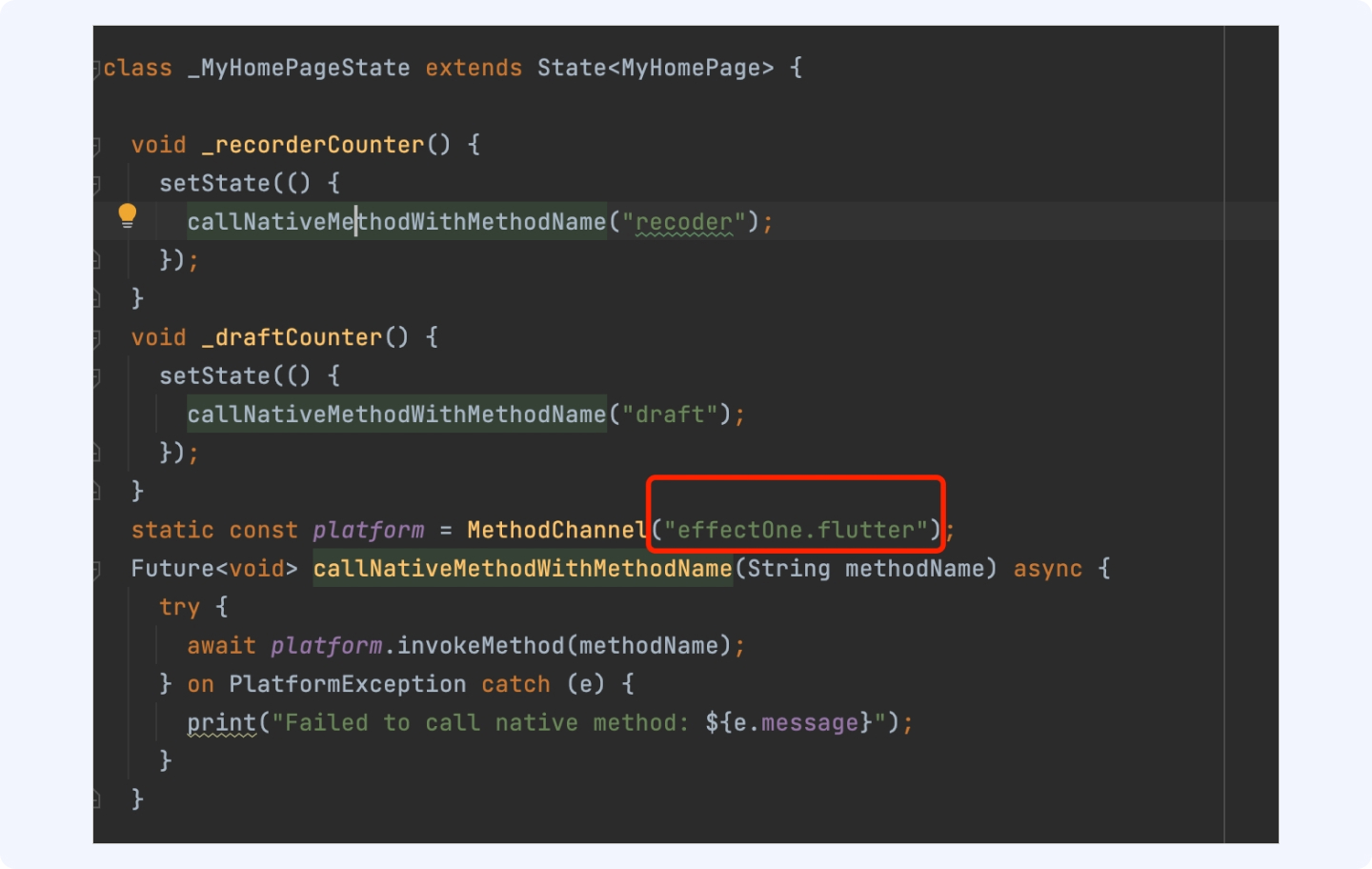

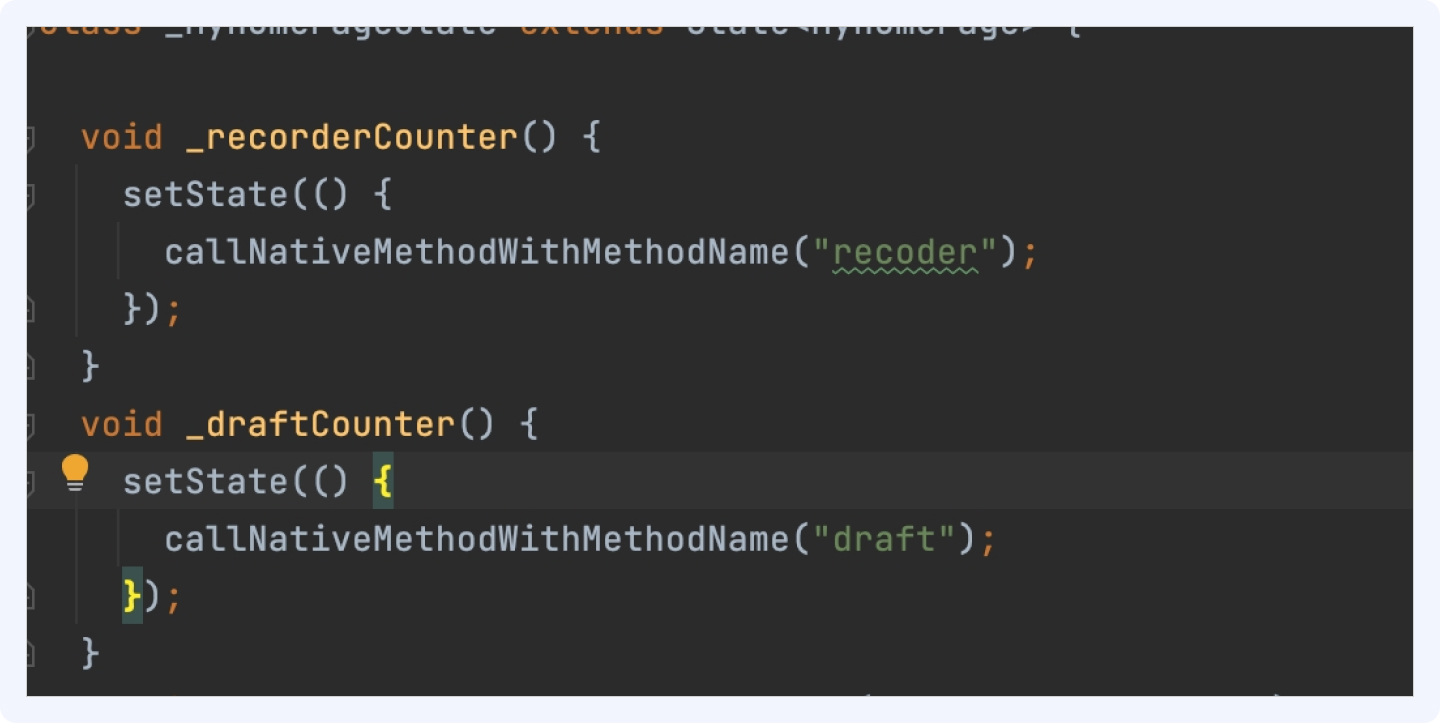

2.3 添加通信交互

2.4 main.dart 代码参考

import 'package:flutter/material.dart';
import 'package:flutter/services.dart';

void main() {
  runApp(const MyApp());
}

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  // This widget is the root of your application.
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'Flutter Demo',
      theme: ThemeData(
        colorScheme: ColorScheme.fromSeed(seedColor: Colors.deepPurple),
        useMaterial3: true,
      ),
      home: const MyHomePage(title: 'Flutter Demo Home Page'),
    );
  }
}

class MyHomePage extends StatefulWidget {
  const MyHomePage({super.key, required this.title});

  final String title;

  @override
  State<MyHomePage> createState() => _MyHomePageState();
}

class _MyHomePageState extends State<MyHomePage> {

  void _recorderCounter() {
    setState(() {
      callNativeMethodWithMethodName("recoder");
    });
  }
  void _draftCounter() {
    setState(() {
      callNativeMethodWithMethodName("draft");
    });
  }
  static const platform  = MethodChannel("effectOne.flutter");
  Future<void> callNativeMethodWithMethodName(String methodName) async {
    try {
      await platform.invokeMethod(methodName);
    } on PlatformException catch (e) {
      print("Failed to call native method: ${e.message}");
    }
  }

  @override
  Widget build(BuildContext context) {

    return Scaffold(
      appBar: AppBar(
        // TRY THIS: Try changing the color here to a specific color (to
        // Colors.amber, perhaps?) and trigger a hot reload to see the AppBar
        // change color while the other colors stay the same.
        backgroundColor: Theme.of(context).colorScheme.inversePrimary,
        // Here we take the value from the MyHomePage object that was created by
        // the App.build method, and use it to set our appbar title.
        title: Text(widget.title),
      ),

      body: Center(
        // Center is a layout widget. It takes a single child and positions it
        // in the middle of the parent.

        child: Column(

          mainAxisAlignment: MainAxisAlignment.center,
          children: <Widget>[
            TextButton(
              onPressed: _recorderCounter,
              child: Text("Recorder"),
            ),

            TextButton(
              onPressed: () {
                _draftCounter();
              },
              child: Text('Draft'),
            ),
          ],
        ),
      ),
      // This trailing comma makes auto-formatting nicer for build methods.
    );
  }
}

3.1 添加依赖资源

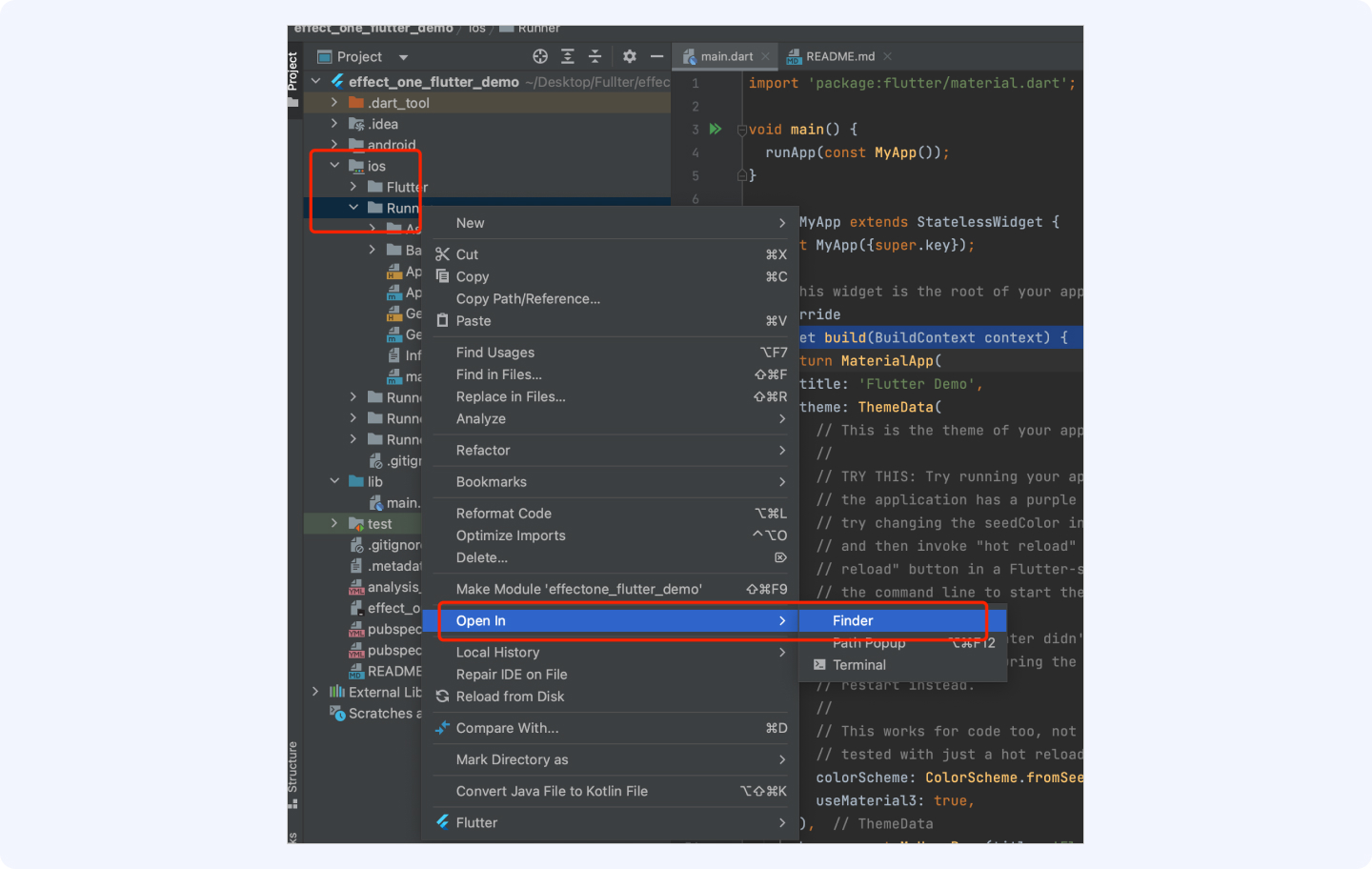

3.1.1 打开iOS工程所在文件位置

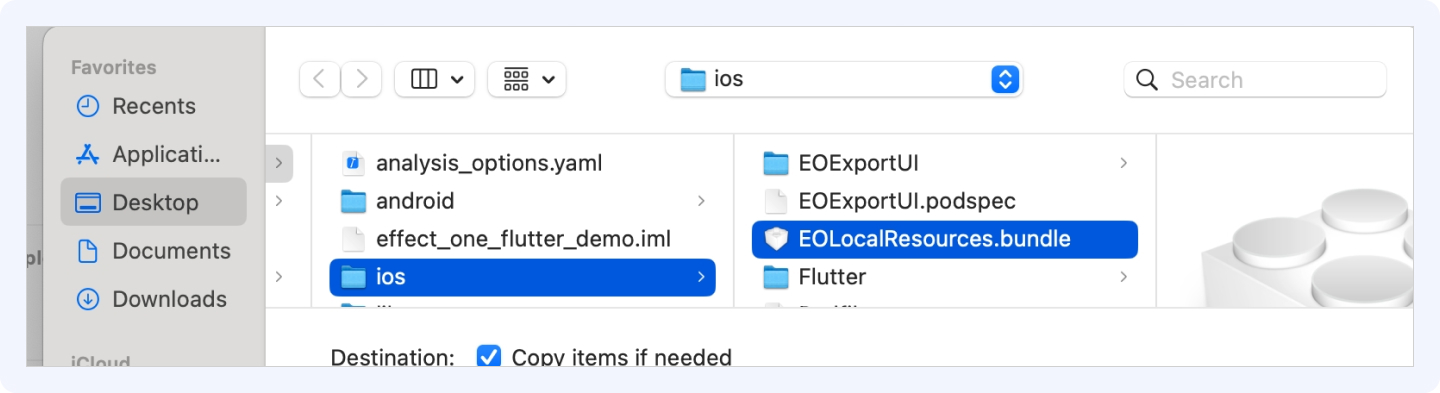

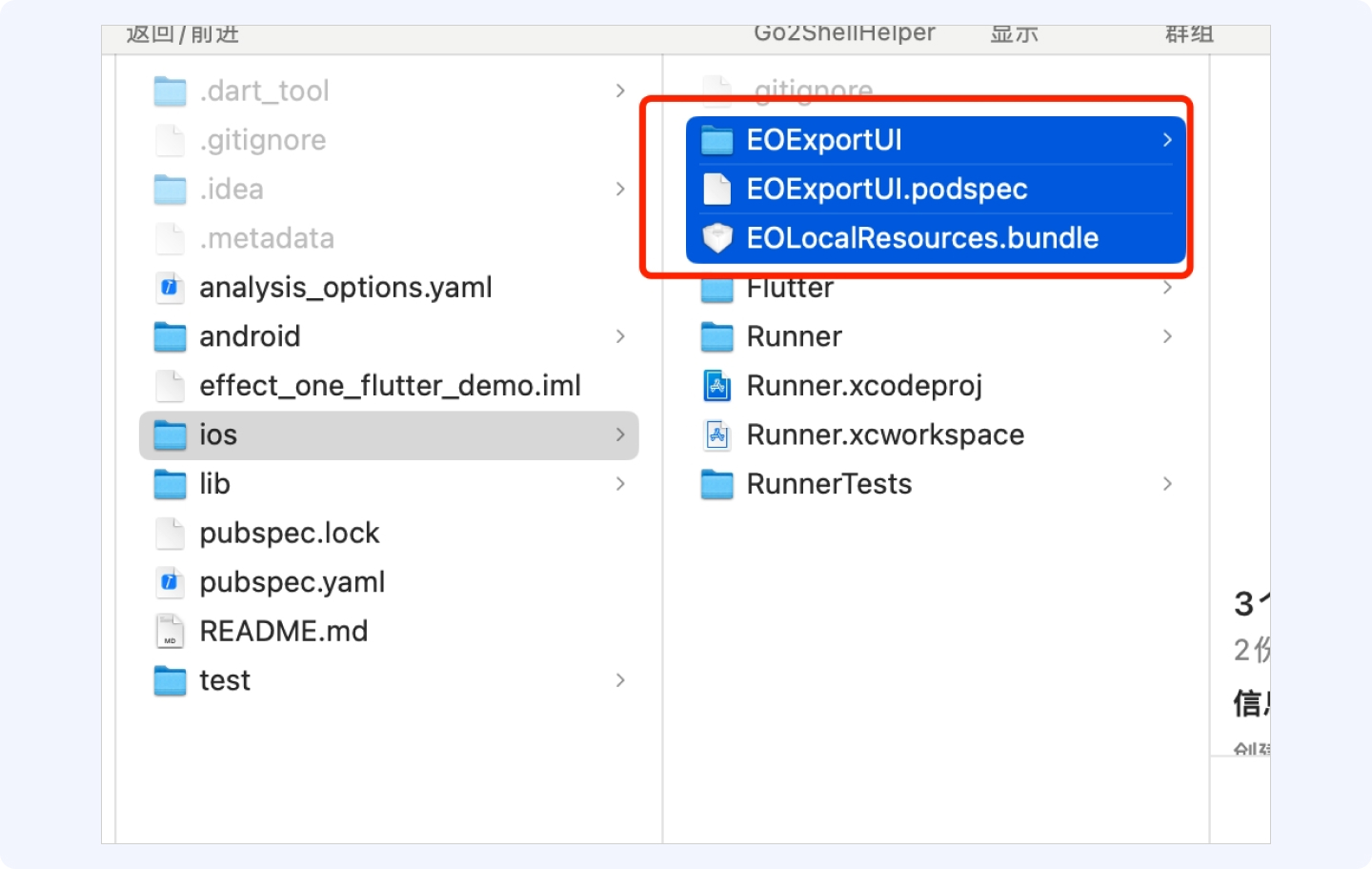

3.1.2 将依赖的文件拖进iOS工程目录下

将demo中以下三个文件拖进iOS工程目录下

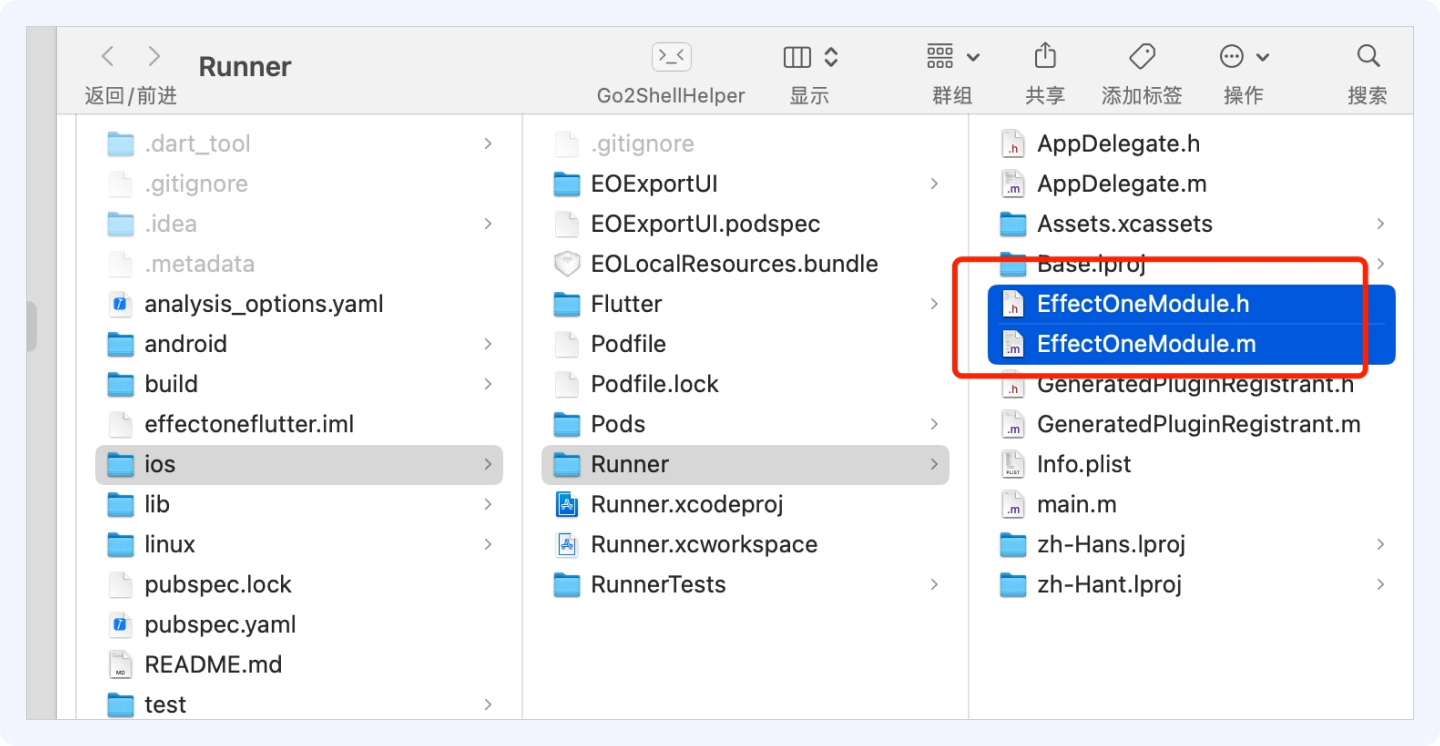

将demo中以下两个文件拖进Runner文件下

3.1.3 添加podFile文件

打开终端并cd到iOS工程所在目录

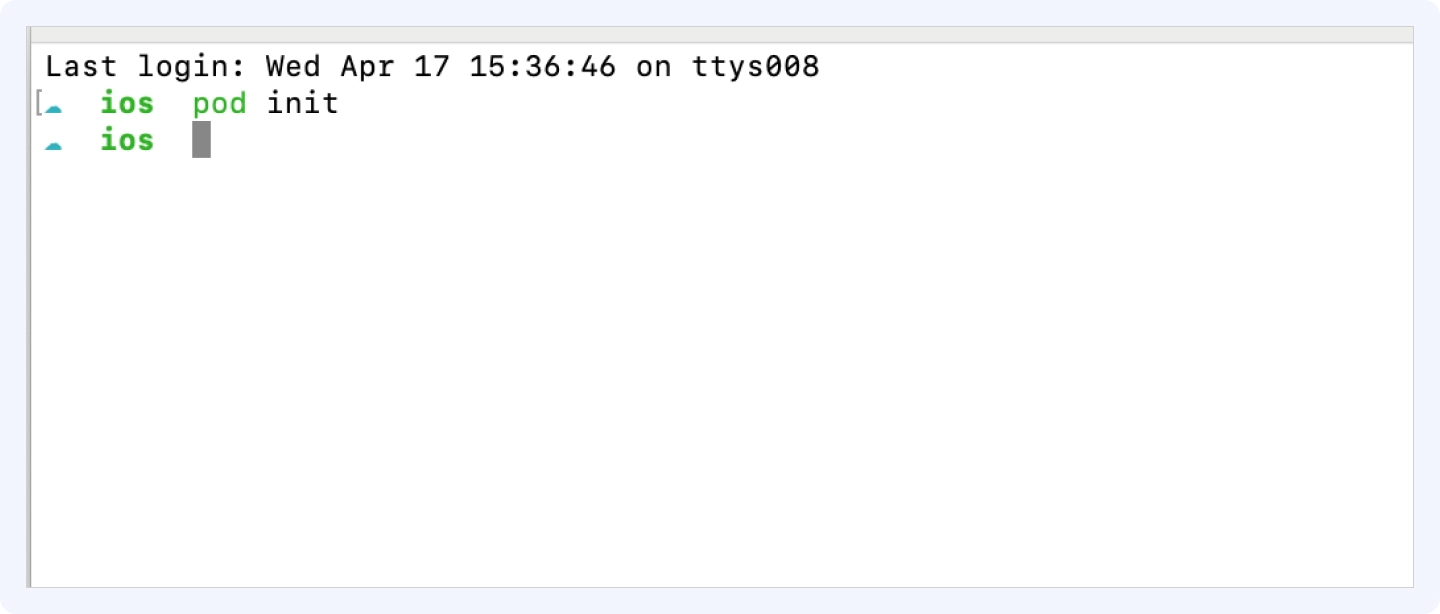

在终端cd到iOS工程所在目录后执行命令：pod init

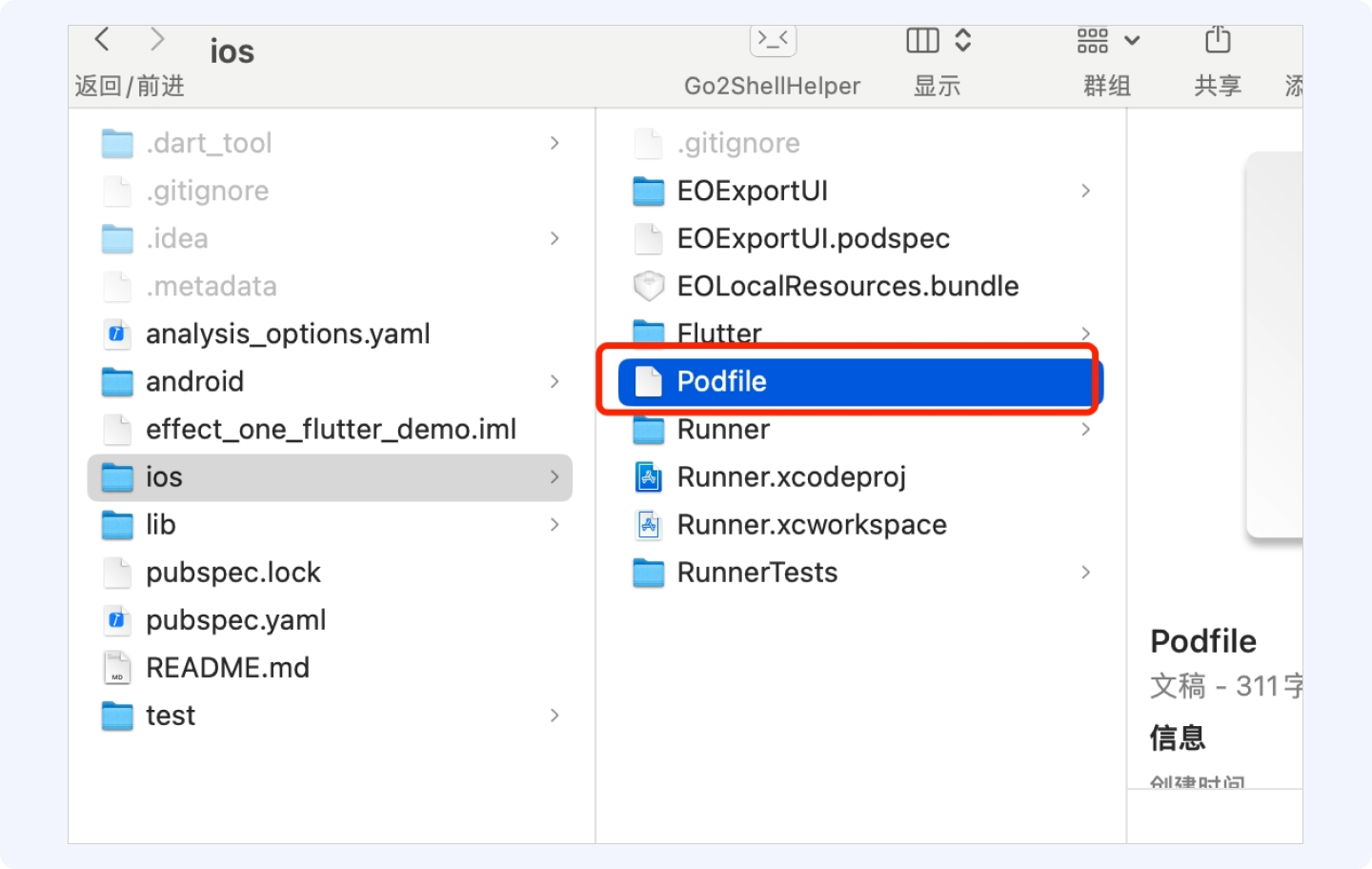

执行完成后，iOS工程目录增加了个podFile文件

3.1.4 修改podFile文件

双击打开podFile文件，添加资源地址以及Pod配置

source 'https://github.com/CocoaPods/Specs.git'
source 'https://cdn.cocoapods.org/'
source 'https://github.com/volcengine/volcengine-specs.git'

install! 'cocoapods', :generate_multiple_pod_projects => true,
                      :deterministic_uuids => false,
#                      :incremental_installation => true,
                      :preserve_pod_file_structure => true

$EFFECT_ONE_KEY = "EffectOneKit"

添加依赖库资源

pod 'EOExportUI', :path => './'
pod 'EffectOneKit', '1.0.0', :source => 'https://github.com/volcengine/volcengine-specs'

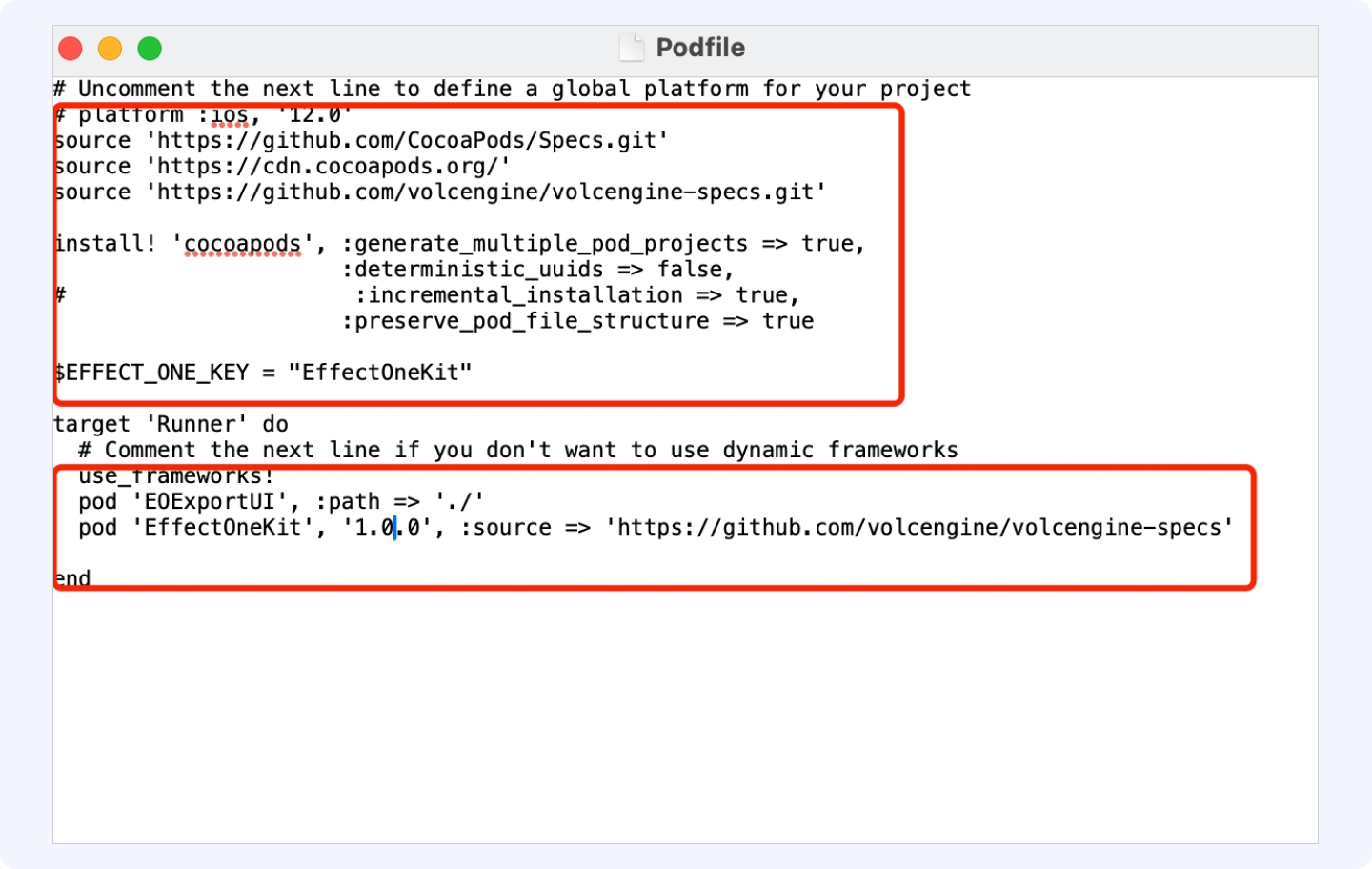

添加结果下图所示

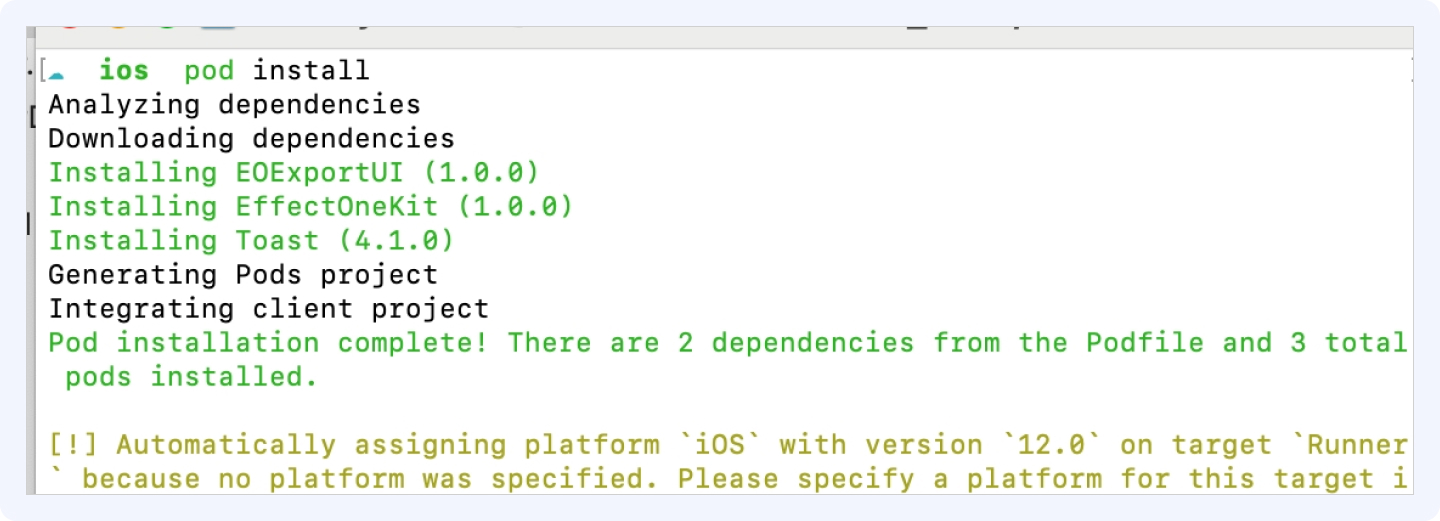

3.1.5 终端执行pod install 命令

依然在终端打开iOS工程所在的目录，并执行命令 pod install

等待执行成功。

3.2 iOS工程配置

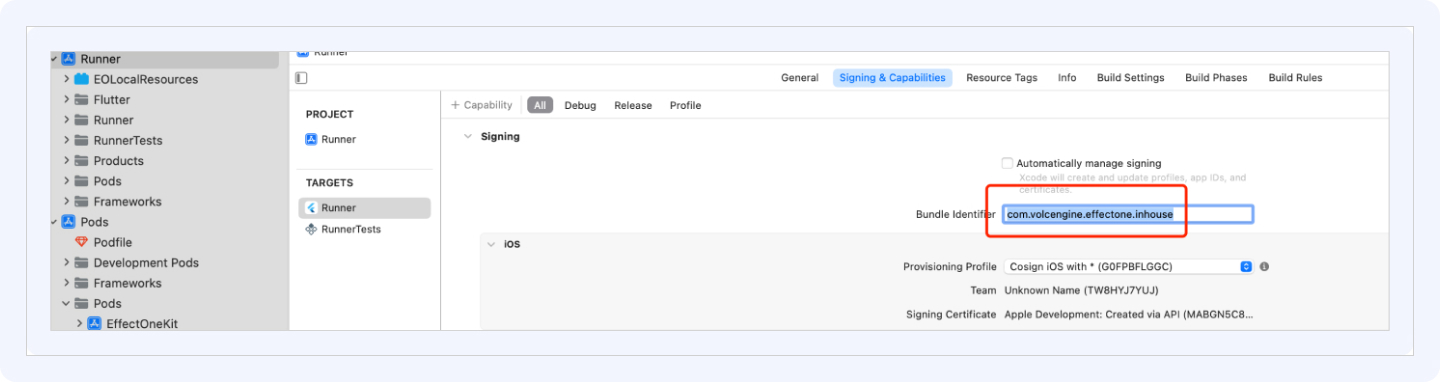

3.2.1 配置bundle Id

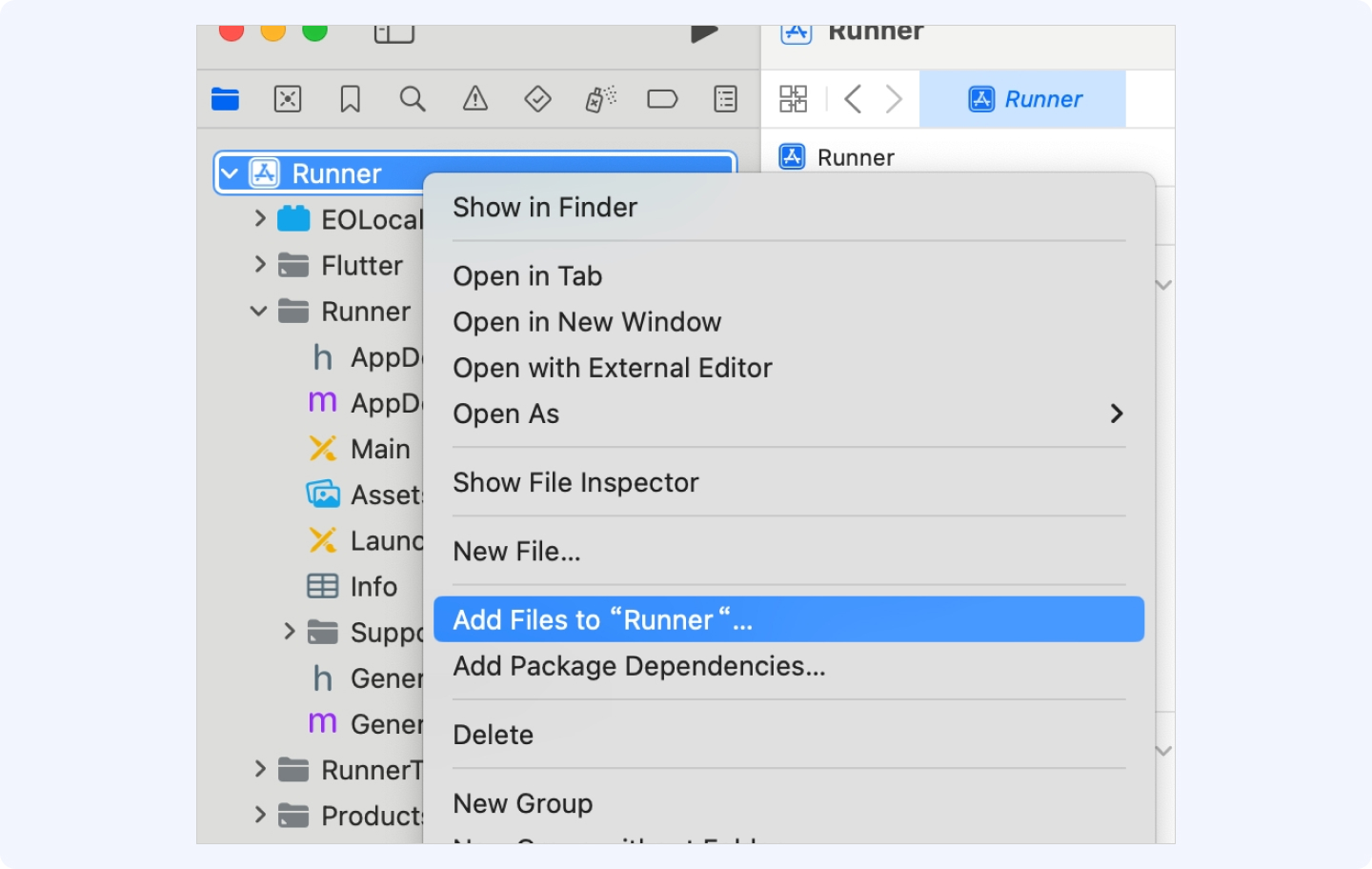

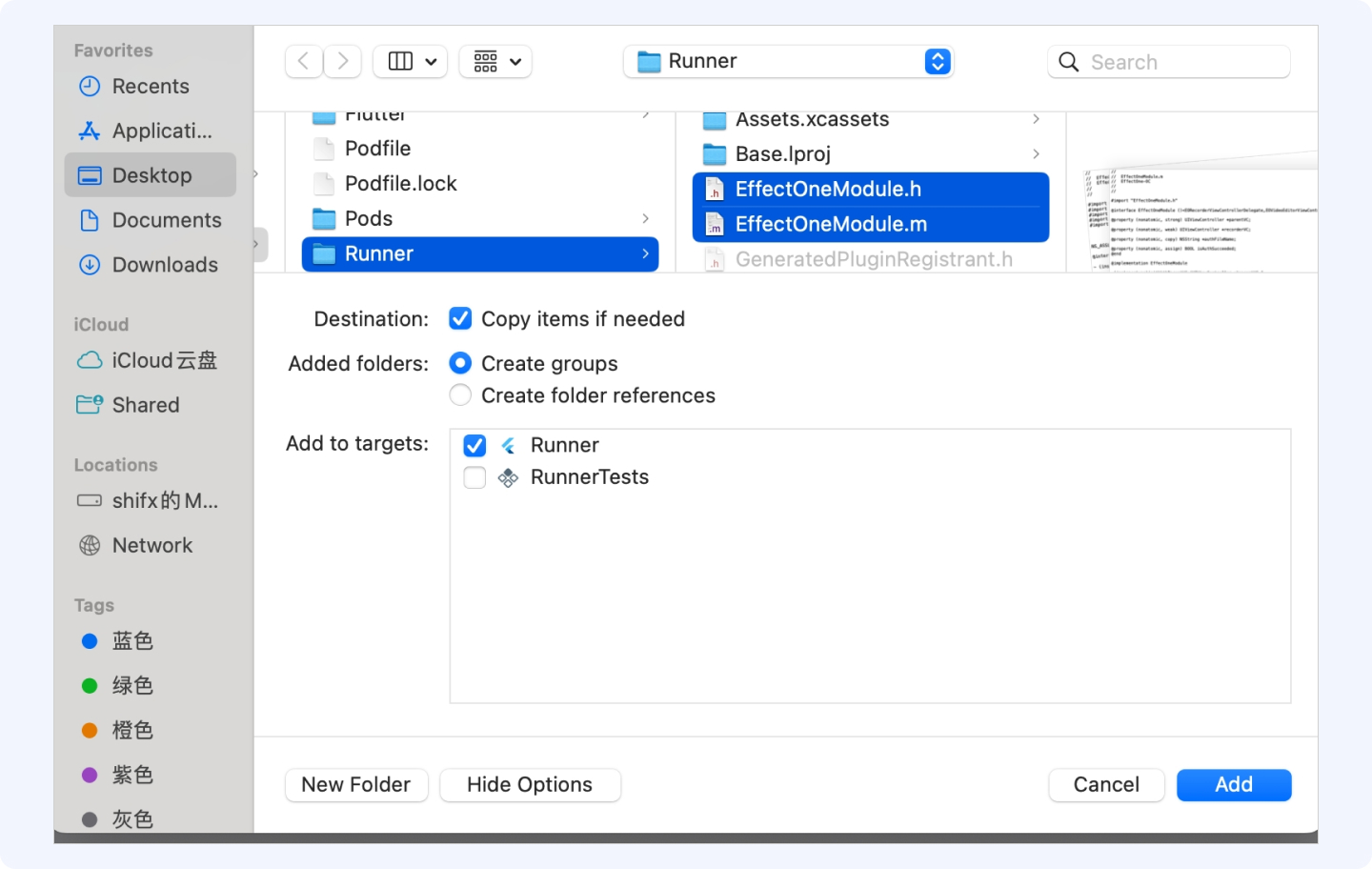

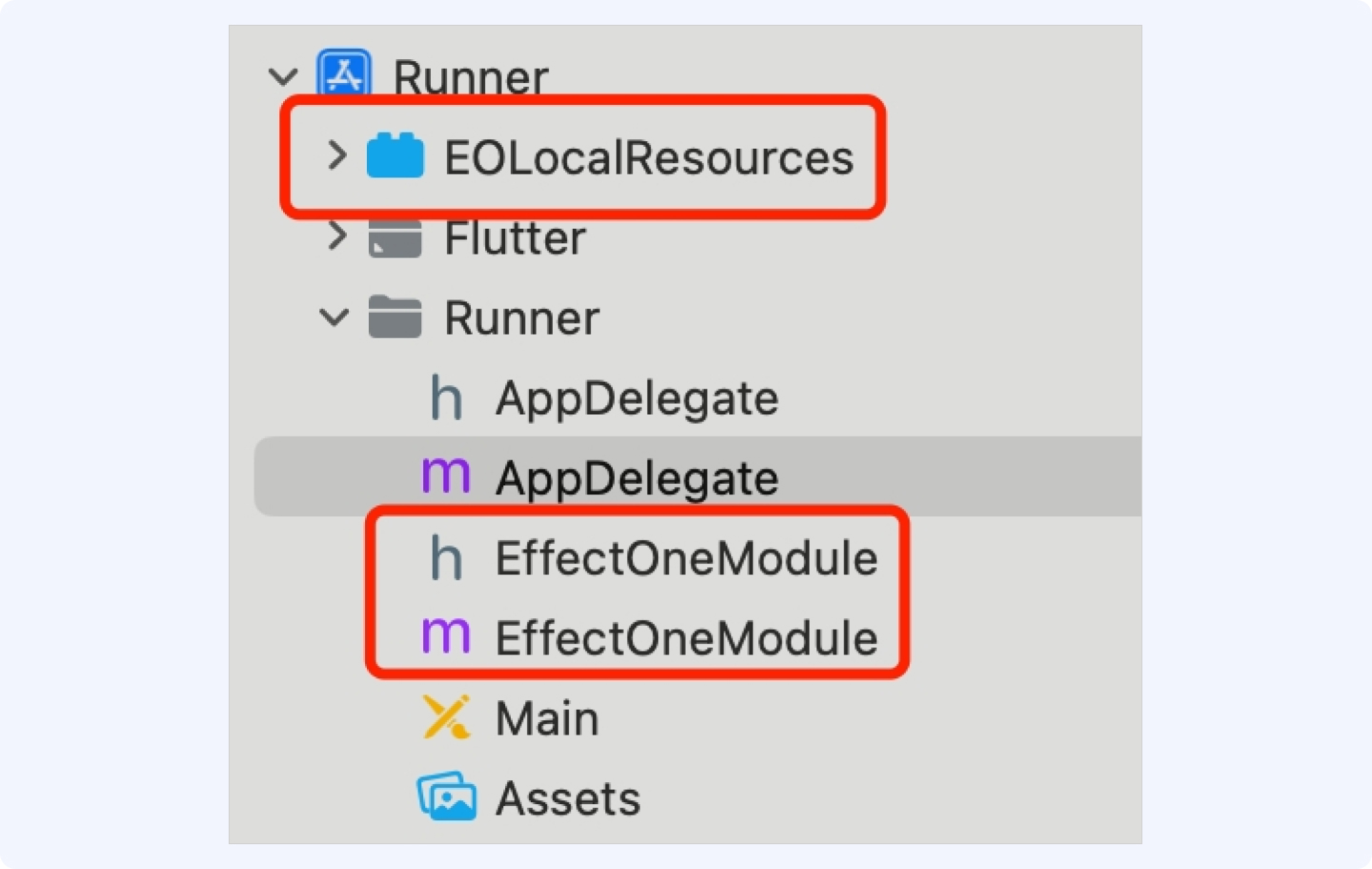

3.2.2 将步骤 3.1.2中的EOLocalResources.boudle以及其他文件添加到iOS工程中

添加完成后结果如下

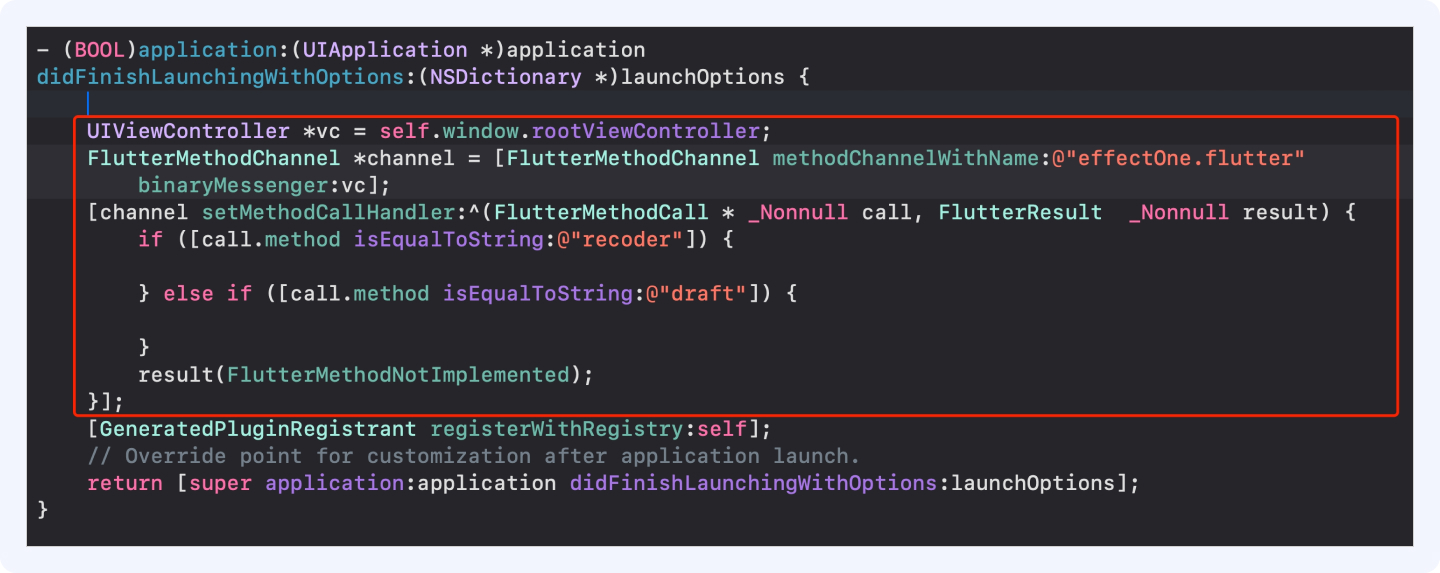

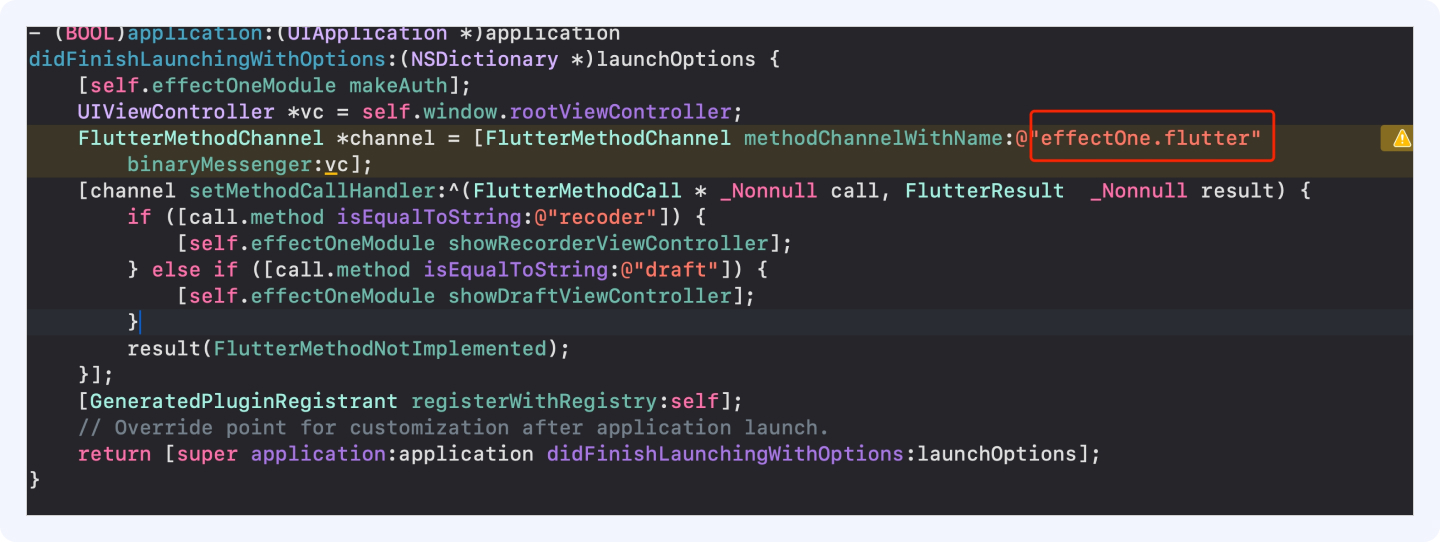

3.3.3 建立与flutter通信通道

在iOS工程中的Appdelete.m文件中添加如下方法

UIViewController *vc = self.window.rootViewController;
    FlutterMethodChannel *channel = [FlutterMethodChannel methodChannelWithName:@"effectOne.flutter" binaryMessenger:vc];
    [channel setMethodCallHandler:^(FlutterMethodCall * _Nonnull call, FlutterResult  _Nonnull result) {
        if ([call.method isEqualToString:@"recoder"]) {

        } else if ([call.method isEqualToString:@"draft"]) {

        }
        result(FlutterMethodNotImplemented);
    }];

如图

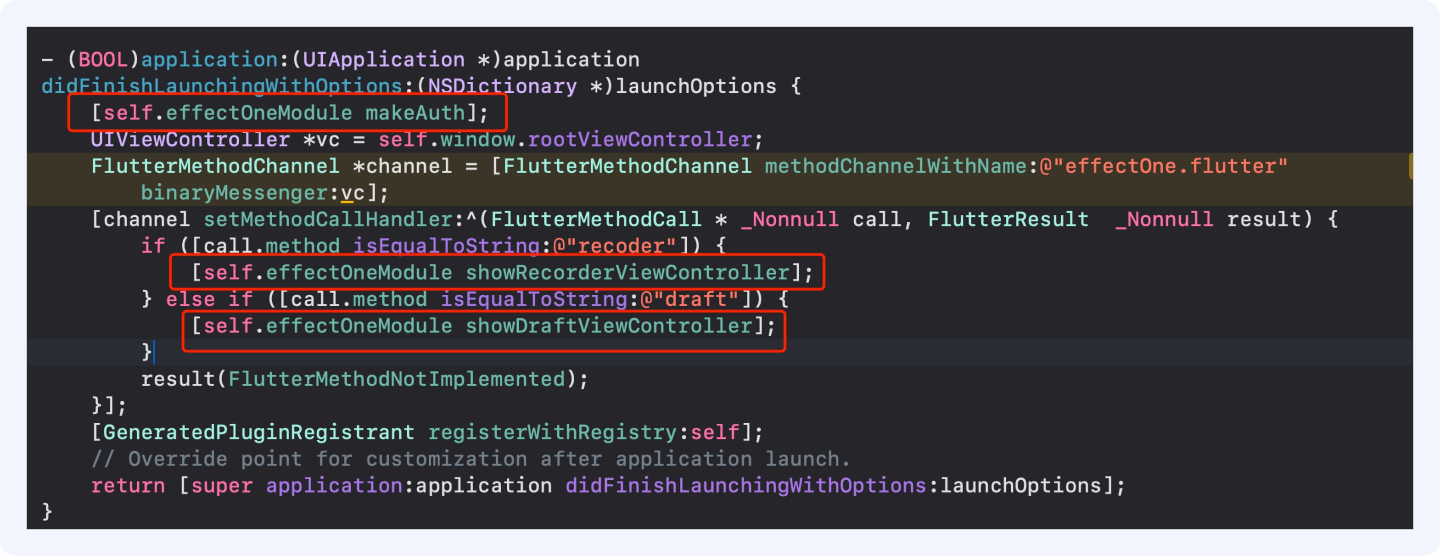

3.3.4 添加鉴权以及拉起拍摄和草稿箱方法

代码参考如下

#import "AppDelegate.h"
#import "GeneratedPluginRegistrant.h"
#import "EffectOneModule.h"


@interface AppDelegate ()
@property (nonatomic, strong) EffectOneModule *effectOneModule;
@end

@implementation AppDelegate

- (EffectOneModule *)effectOneModule {
    if (!_effectOneModule) {
        _effectOneModule = [[EffectOneModule alloc] initWithParentVC:self.window.rootViewController];
    }
    return _effectOneModule;
}

- (BOOL)application:(UIApplication *)application
didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    [self.effectOneModule makeAuth];
    UIViewController *vc = self.window.rootViewController;
    FlutterMethodChannel *channel = [FlutterMethodChannel methodChannelWithName:@"effectOne.flutter" binaryMessenger:vc];
    [channel setMethodCallHandler:^(FlutterMethodCall * _Nonnull call, FlutterResult  _Nonnull result) {
        if ([call.method isEqualToString:@"recoder"]) {
            [self.effectOneModule showRecorderViewController];
        } else if ([call.method isEqualToString:@"draft"]) {
             [self.effectOneModule showDraftViewController];
        }
        result(FlutterMethodNotImplemented);
    }];
    [GeneratedPluginRegistrant registerWithRegistry:self];
    // Override point for customization after application launch.
    return [super application:application didFinishLaunchingWithOptions:launchOptions];
}

@end

注意：通道name一定要和flutter工程中的一致，即effectOne.flutter

3.3.5 权限配置

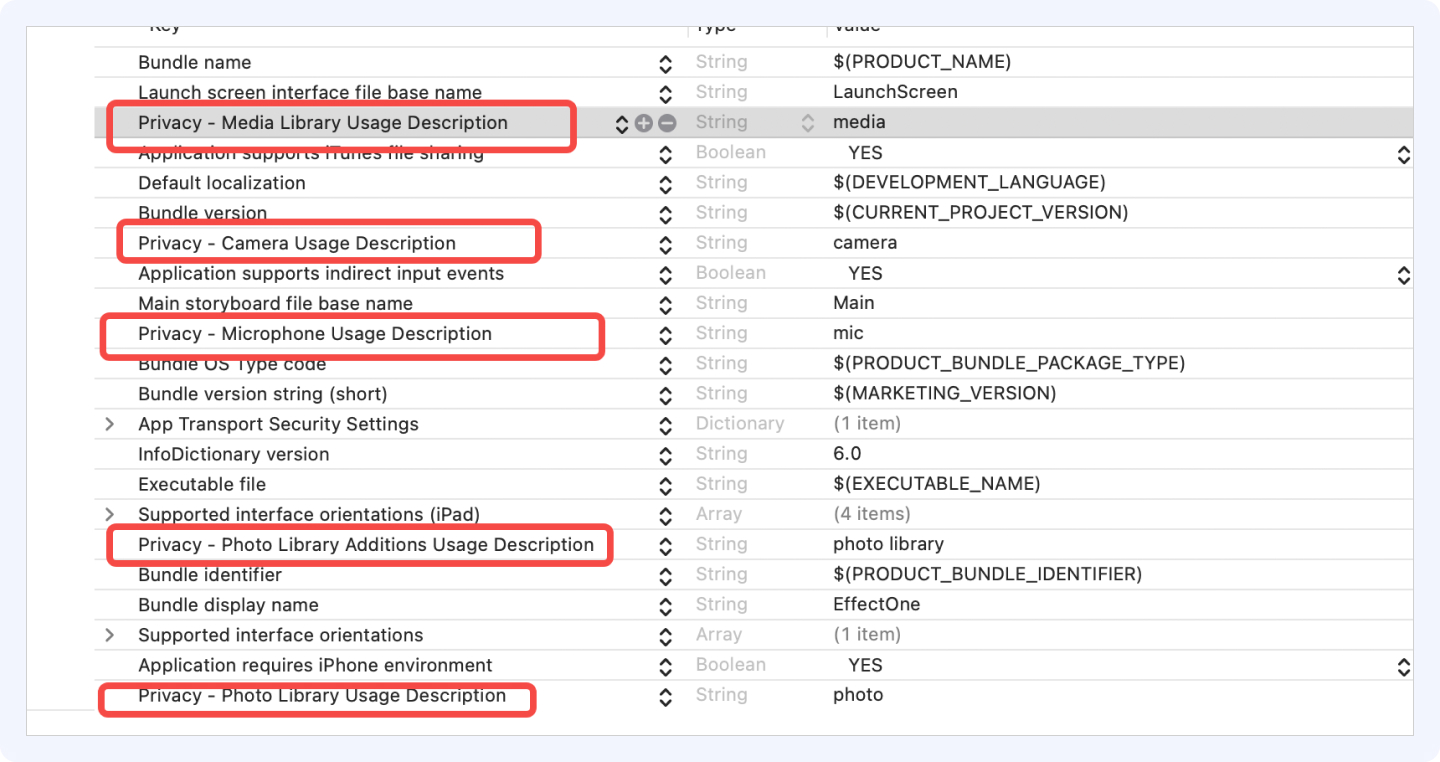

在工程配置Info中配置相机、麦克风及相册访问权限

1. EffectOneKit依赖了相机、麦克风及相册访问权限，需要在你的工程配置中开启，如下图

//是否允许App访问您的媒体资料库
<key>NSAppleMusicUsageDescription</key>
<string>media</string>//写出自己说明描述
//是否允许App使用您的相机
<key>NSCameraUsageDescription</key>
<string>Camera</string>//写出自己说明描述
//是否允许App您的麦克风
<key>NSMicrophoneUsageDescription</key>
<string>mic</string>//写出自己说明描述
//是否允许App保存图片到手机
<key>NSPhotoLibraryAddUsageDescription</key>
<string>photo lib</string>//写出自己说明描述
//是否允许App您的相册
<key>NSPhotoLibraryUsageDescription</key>
<string>photo</string>//写出自己说明描述

3.3.6 配置完成

至此，iOS工程配置完成，可以在flutter项目中运行了。
