场景描述

这是一个智驾客户的训练场景，客户想解决的核心问题是：训练数据集在超大规模场景下的横向扩展问题。
客户的数据集非常大，每条数据称为“一帧”（frame），一帧有几百列，通常包含摄像头（图片）、激光雷达和传感器上报的数据，一帧数据的大小约20MB，通常一秒有若干帧。客户当前将数据存储在火山的vePFS，并且已经遇到瓶颈，vePFS经常需要横向扩容来满足不断增长的数据存储需求。未来客户规划存储 20 亿frame的数据量，存储规模会逼近 40PB，vePFS 要容纳如此规模的数据，成本将会非常高。

当前方案

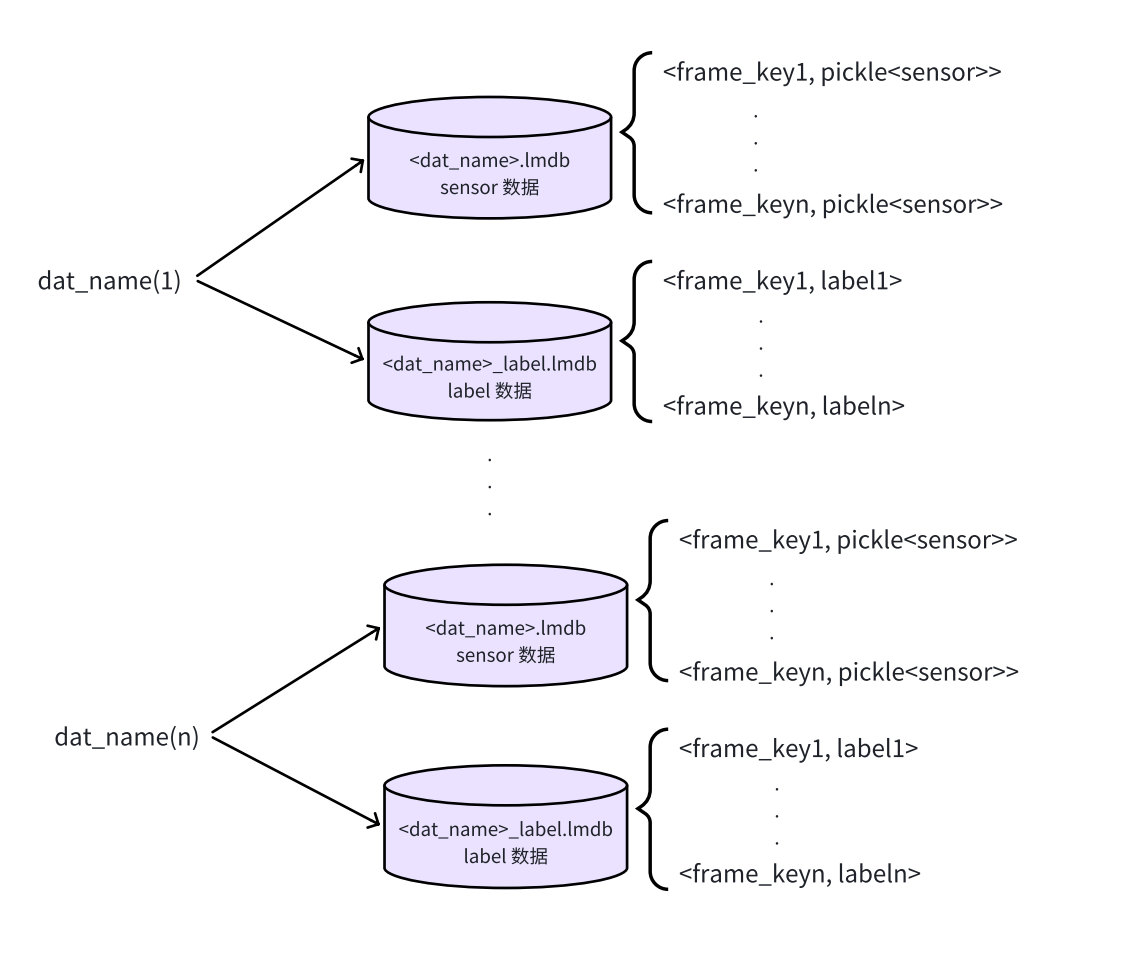

客户当前采用的是基于LMDB + pickle的存储方案。通过pickle将上面提到的每一帧的Python对象数据序列化为一个键值对，然后存储到LMDB中，同时将LMDB的数据库文件存储在vePFS上。当需要访问的时候，先通过LMDB打开对应的数据库文件，然后基于特定的key读取出帧的序列化后的数据，最后通过pickle再反序列化为Python 对象。
这种方案选型，在小规模的数据量场景是一个比较成熟而且轻量的选型。

Lance方案

火山EMR引擎提出了基于Lance Format的多模数据湖方案。该方案相比客户当前的LMDB的嵌入式存储方案，可以在支撑超大规模存储的前提下，以较好的性能满足客户随机访问和全量扫描的的多种数据访问场景。同时，Lance数据的存储跟底层的存储服务耦合度也非常低。用户可以按场景自行选择：

• 追求训练时的高性能：可以选择Lance on vePFS；
• 追求超大规模的横向扩容：可以选择Lance on ToS；

同时，Lance 支持ZSTD压缩编码，对二进制数据支持较高的压缩比，这个特性可以更进一步压缩存储空间占用同时还能够降低网络带宽。

方案对比

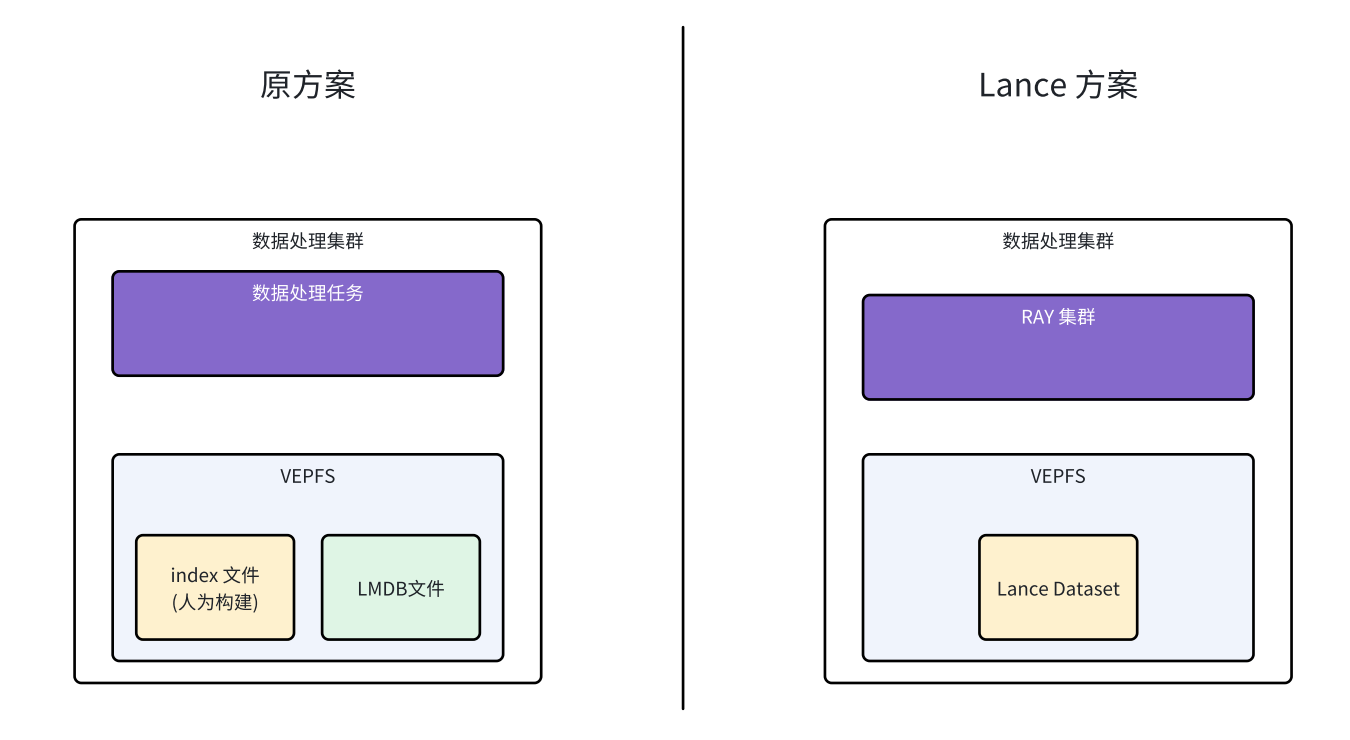

数据预处理

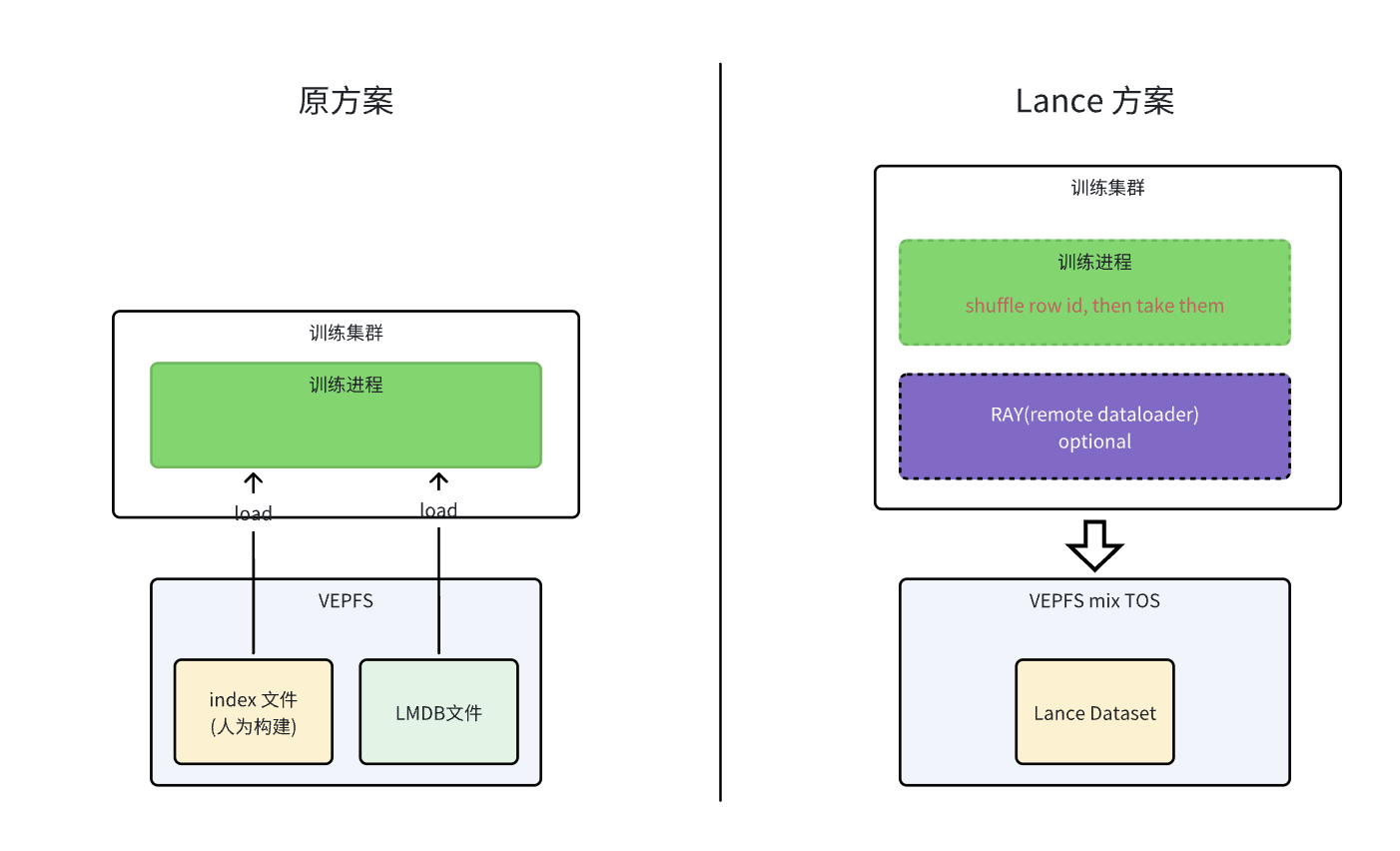

模型训练

代码示例

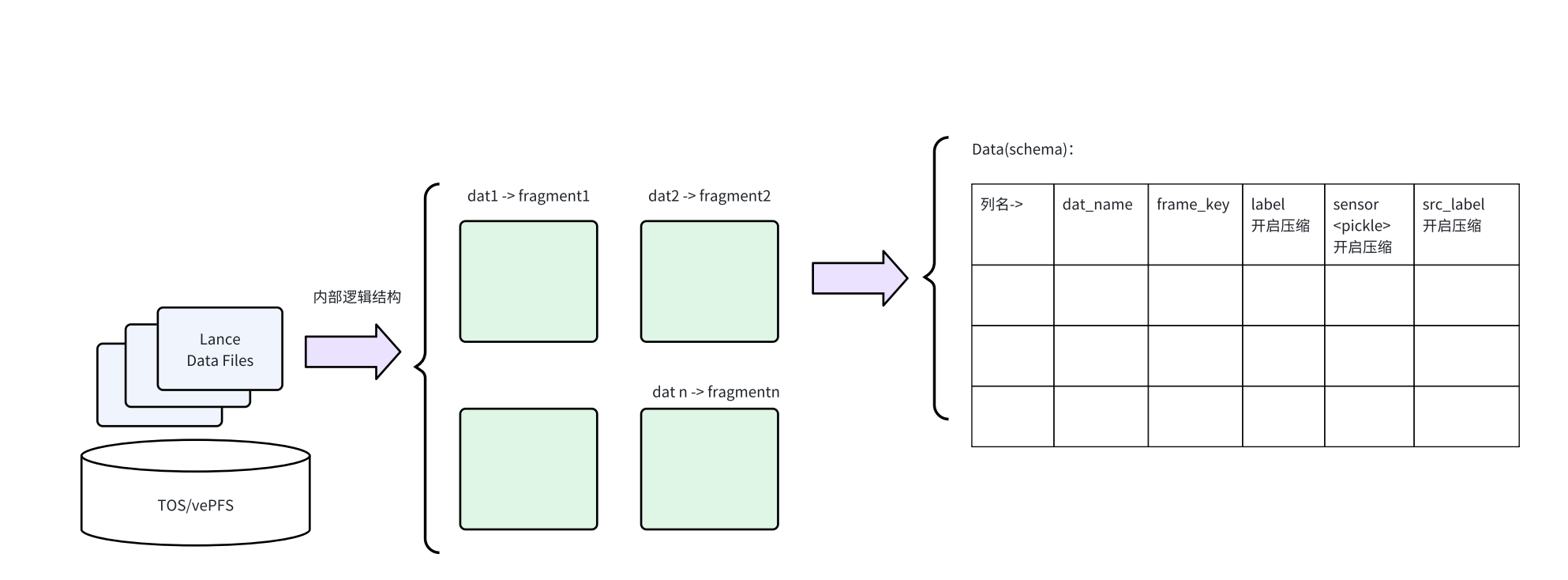

客户的 schema 示例如下：

schema = pa.schema([
    pa.field("dat_name", pa.string()),
    pa.field("frame_key", pa.string()),
    pa.field("label", pa.binary(), metadata={"lance-encoding:compression": "zstd"}),
    pa.field("sensor", pa.binary(), metadata={"lance-encoding:compression": "zstd"}),
    pa.field("src_label", pa.binary(), metadata={"lance-encoding:compression": "zstd"}),
])

LMDB转Lance：

import lmdb
import os
import lance
import pyarrow as pa
import ray
from tosfs.core import TosFileSystem

ENV_AK = ""
ENV_SK = ""
fs = TosFileSystem(
    endpoint_url="https://tos-cn-beijing.ivolces.com",
    key=ENV_AK,
    secret=ENV_SK,
    region="cn-beijing"
)

root_path = ""

sensor_path = root_path + 'sensor/'
label_path  = root_path + 'label/'
local_tmp_path = "/tmp/"
LANCE_PATH=""

dat_names = []
for path in fs.ls(label_path):
    dat_names.append(path.split("/")[-1].replace("_label.lmdb", ""))


schema = pa.schema([
    pa.field("label", pa.large_binary()),
    pa.field("sensor", pa.large_binary()),
])

LANCE_AK = ""
LANCE_SK = ""
storage_options = {
    "access_key_id": LANCE_AK,
    "secret_access_key": LANCE_SK,
    "aws_region": "cn-beijing",
    "aws_endpoint": "https://emrtest.tos-s3-cn-beijing.ivolces.com",
    "virtual_hosted_style_request": "true",
    "timeout": "600s"
}

ds = ray.data.from_items(dat_names, override_num_blocks=100)

def gen_pa_table_by_dat_name(parent_dir:str, dat_name: str):
    label_lmdb = parent_dir + "/" + dat_name + '_label.lmdb'
    sensor_lmdb = parent_dir + "/" + dat_name + '.lmdb'
    label_env = lmdb.open(label_lmdb, readonly=True, lock=False)
    label_ctx = label_env.begin(write=False)
    sensor_env = lmdb.open(sensor_lmdb, readonly=True, lock=False)
    sensor_ctx = sensor_env.begin(write=False)
    frame_keys = []
    for key, _ in label_ctx.cursor():
        if key.startswith("CD".encode()):
            frame_keys.append(key)
    schema = pa.schema([
            pa.field("label", pa.large_binary()),
            pa.field("sensor", pa.large_binary()),
        ])
    data = {
        "label": [],
        "sensor": [],
    }
    for frame_key in frame_keys:
        label_key = frame_key.decode('utf-8')
        sensor_key = frame_key.decode('utf-8')
        src_label_key = "src_" + label_key
        label_data = label_ctx.get(frame_key)
        sensor_data = sensor_ctx.get(frame_key)
        src_label_data = label_ctx.get(src_label_key.encode())
        data['label'].append(label_data)
        data['sensor'].append(sensor_data)
    table = pa.Table.from_arrays(
        [
            pa.array(data['label'], type=pa.large_binary()),
            pa.array(data['sensor'], type=pa.large_binary()),
        ],
        schema=schema
    )
    label_env.close()
    sensor_env.close()
    return table

def duplicate_row(row: dict[str, any]):
    dat_name = row["item"]
    import os
    local_dat_dir = local_tmp_path + dat_name
    local_label_dat_dir = local_dat_dir + "/" + dat_name + "_label.lmdb"
    local_sensor_dat_dir = local_dat_dir + "/" + dat_name + ".lmdb"
    label_tos_lmdb = label_path + dat_name + "_label.lmdb/"
    sensor_tos_lmdb = sensor_path + dat_name + "/" + dat_name+ ".lmdb/"

    print(f'local label  = {local_label_dat_dir}')
    print(f'local sensor = {local_sensor_dat_dir}')
    print(f'tos   label  = {label_tos_lmdb}')
    print(f'tos   sensor = {sensor_tos_lmdb}')

    os.makedirs(os.path.dirname(local_dat_dir), exist_ok=True)
    os.makedirs(os.path.dirname(local_label_dat_dir), exist_ok=True)
    os.makedirs(os.path.dirname(local_label_dat_dir), exist_ok=True)

    from tosfs.core import TosFileSystem
    fs = TosFileSystem(
        endpoint_url="https://tos-cn-beijing.ivolces.com",
        key=ENV_AK,
        secret=ENV_SK,
        region="cn-beijing"
    )
    fs.get(label_tos_lmdb, local_label_dat_dir, recursive=True)
    print(f"Downloaded {label_tos_lmdb} from tos to {local_label_dat_dir}")
    fs.get(sensor_tos_lmdb, local_sensor_dat_dir, recursive=True)
    print(f"Downloaded {sensor_tos_lmdb} from tos to {local_sensor_dat_dir}")

    table = gen_pa_table_by_dat_name(local_dat_dir, dat_name)
    fragment = lance.fragment.LanceFragment.create(LANCE_PATH, table, storage_options=storage_options)
    import shutil
    if os.path.exists(local_dat_dir):
        try:
            # 递归删除文件夹，处理只读权限
            print(f"准备删除文件夹 {local_dat_dir}。")
            shutil.rmtree(local_dat_dir)
            print(f"文件夹 {local_dat_dir} 已成功删除。")
        except Exception as e:
            print(f"删除文件夹 {local_dat_dir} 时出错: {e}")
    else:
        print(f"文件夹 {local_dat_dir} 不存在。")
    return {"fragment": fragment}

fragments = ds.map(duplicate_row).take_all()

operation = lance.LanceOperation.Append([fragment['fragment'] for fragment in fragments])
dataset = lance.dataset(LANCE_PATH, storage_options=storage_options)
dataset = lance.LanceDataset.commit(LANCE_PATH, operation, read_version=dataset.latest_version, storage_options=storage_options)

训练时数据采用、shuffle：

• 基于rowid：

columns=["dat_name", "frame_key"]
rowids = []
index = 0
for fragment in ds.get_fragments():
    rowids.append(index)
    index += fragment.count_rows()
ds.take(rowids, columns=columns)

• 基于FragmentId：

columns=["dat_name", "frame_key"]
rowids = []
fragids = []
for fragment in ds.get_fragments():
    fragids.append(fragment.fragment_id)
    rowids.append(fragment.fragment_id << 32)

table = ds._take_rows(rowids, columns=columns)

# 将Fragment id写入到新列去
new_column_data = pa.array(fragids)
new_table = table.append_column('frag_id', new_column_data)

import pyarrow as pa
import pyarrow.compute as pc

filter_values = ["tag13_seq29_CD701_LS6C3E191PA250083_2024-12-06_10-22-32","tag13_seq30_CD701_LS6C3E191PA250083_2024-12-06_10-22-32","tag13_seq31_CD701_LS6C3E191PA250083_2024-12-06_10-22-32"]
# 按照dat_name过滤
filter_fn = pc.is_in(new_table.column('dat_name'), pa.array(filter_values))

filtered_table = pc.filter(new_table, filter_fn)

print(filtered_table.to_pandas())
