装修物料准备规范

最近更新时间2023.04.27 10:01:43

首次发布时间2021.12.28 11:43:03

直播间装修包括移动端、PC 端和直播建站,您可以根据装修物料规范打造个性化直播间。

H5 直播观看页面素材准备

H5 直播即移动端直播,为了在移动端拥有较好的观看效果及使用体验,页面中的物料均需要按照移动端的适配尺寸进行准备。主要物料包括以下类型,其中重点关注项包括背景图封面图页头图,其它为非必须项。

物料类型 Type尺寸 Dimention大小 Size格式 Format页面参考 References

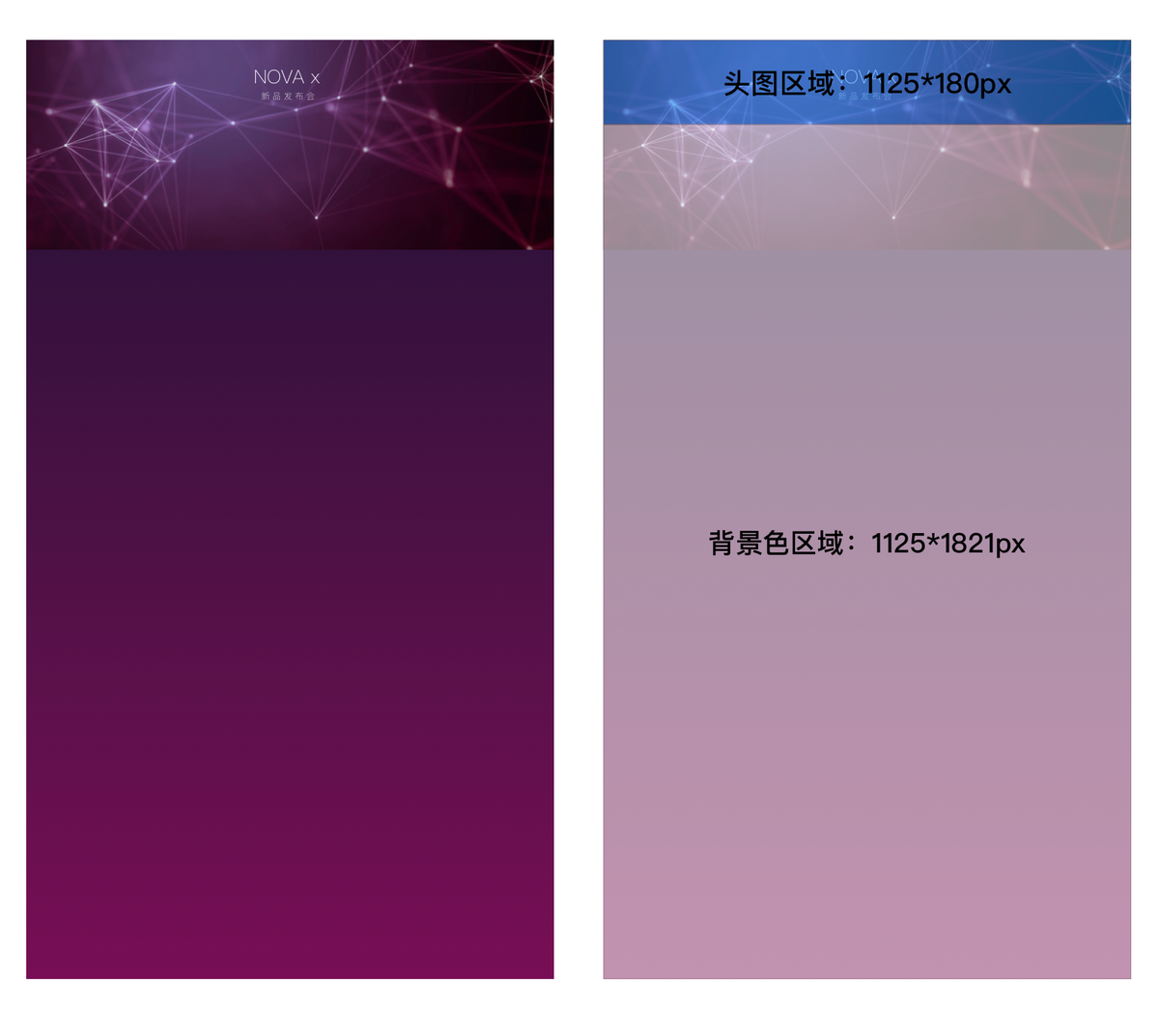

背景图(包含头图元素和背景色元素)
Background pictures (Including elements of header pictures and background colors)

1125*2001px

2M

JPG, PNG

横屏封面图
Horizontal cover pictures

1092*1080px(或宽高比为 16:9 的图片即可)
1092*1080px (or pictures with an aspect ratio of 16:9)

2M

JPG, PNG

alt

竖屏封面图
Vertical cover pictures

1125*2250px(或宽高比为 1:2 的图片即可)
1125*2250px (or pictures with an aspect ratio of 1:2)

2M

JPG, PNG

页头图片
Header pictures

1125*240px

2M

JPG, PNG

播放器顶部区域
At the top of the player

页中广告
Ads inside the page

1137*180px

2M

JPG, PNG

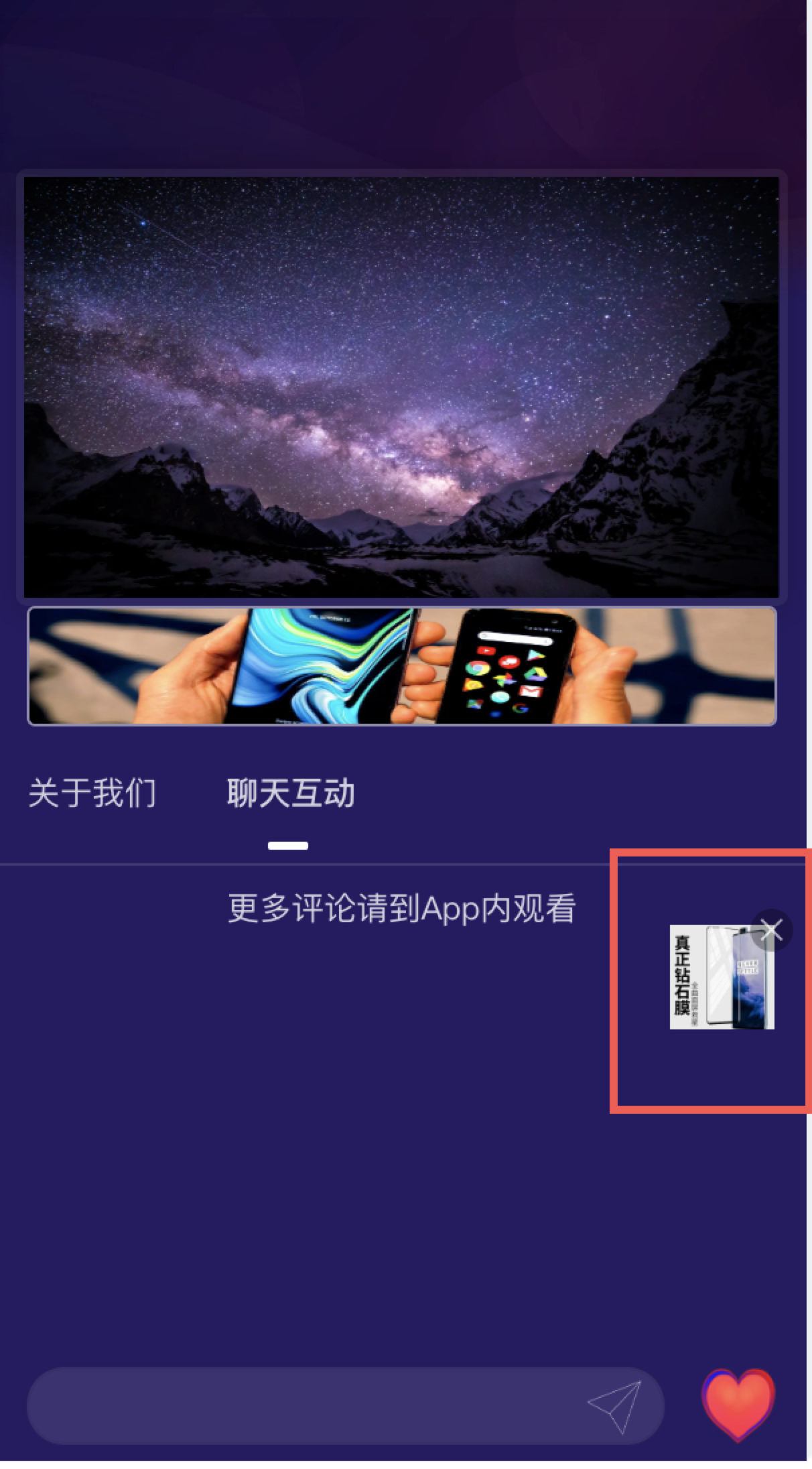

浮标广告
Ads floating in the page

50*50px(或者1:1等比例图片)
50*50px (or 1:1 picture of equal proportion)

2M

JPG, PNG

账号头像
Profile photo

75*75px(或者1:1等比例图片)
75*75px (or 1:1 picture of equal proportion)

2M

JPG, PNG

水印(Logo)
Logo watermark

111*66px

2M

JPG, PNG

图文类菜单-长图
Menus containing images and texts - long pictures

1572*6000px(宽度固定的长图片,最长支持高度为6000px)
1572*6000px (long pictures of a set height and width. the biggest height supported is 6000px)

20M

JPG, PNG

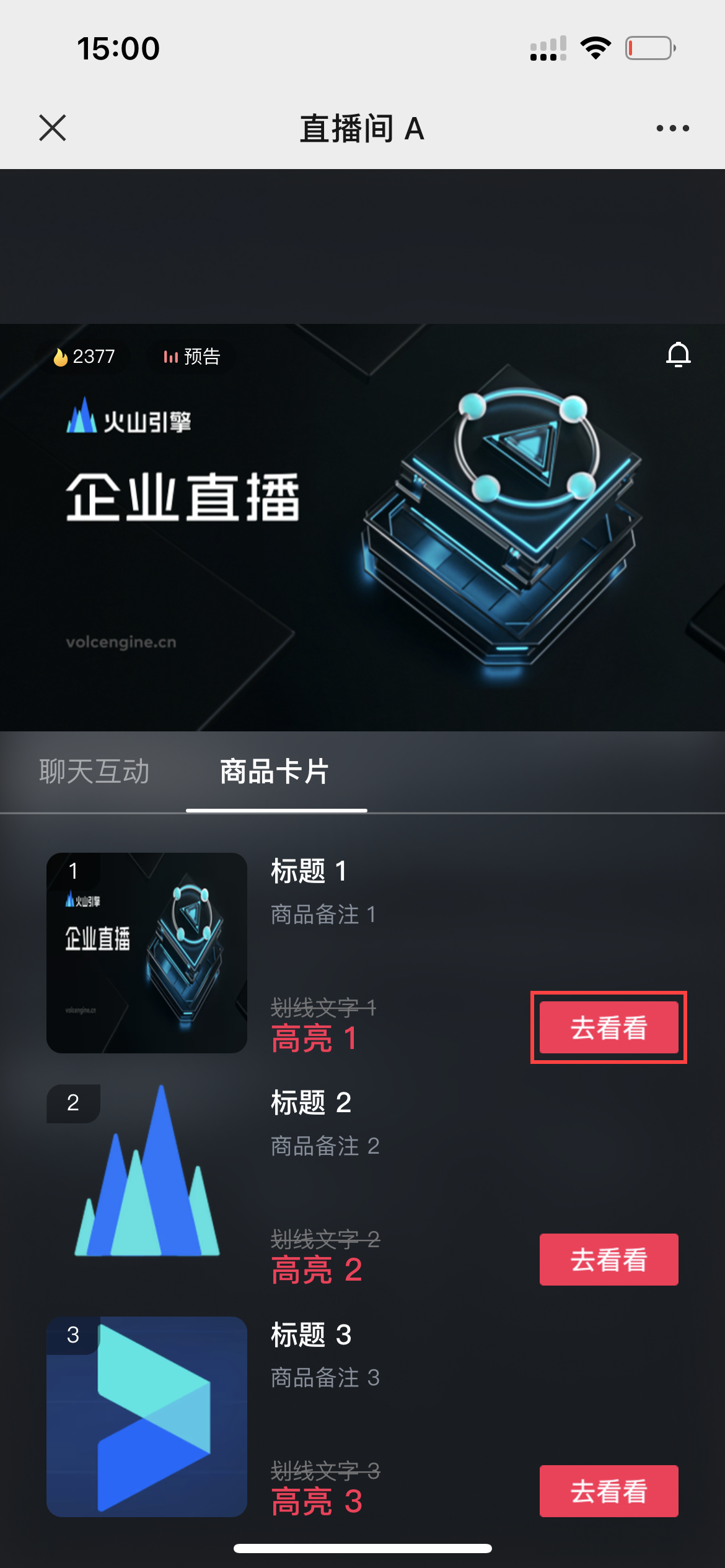

商品卡片类菜单- 商品图
Menus of product card type - product photos

200*200px(或者1:1等比例图片)
200*200px (or 1:1 picture of equal proportion)

2M

JPG, PNG

商品卡片类菜单-跳转按钮图
Menus of product card type - jump button

160*60px(或宽高比为 8:3 的图片即可)
160*60px (or pictures with an aspect ratio of 8:3)

2M

JPG, PNG

PC 直播观看页面素材准备

PC 直播即电脑端直播,PC 观看页面包含的元素较少于移动端观看页面。主要物料包括以下类型,其中重点关注项为背景图封面图,其它为非必须项。

物料类型 Type尺寸 Dimention大小 Size格式 Format页面参考 References

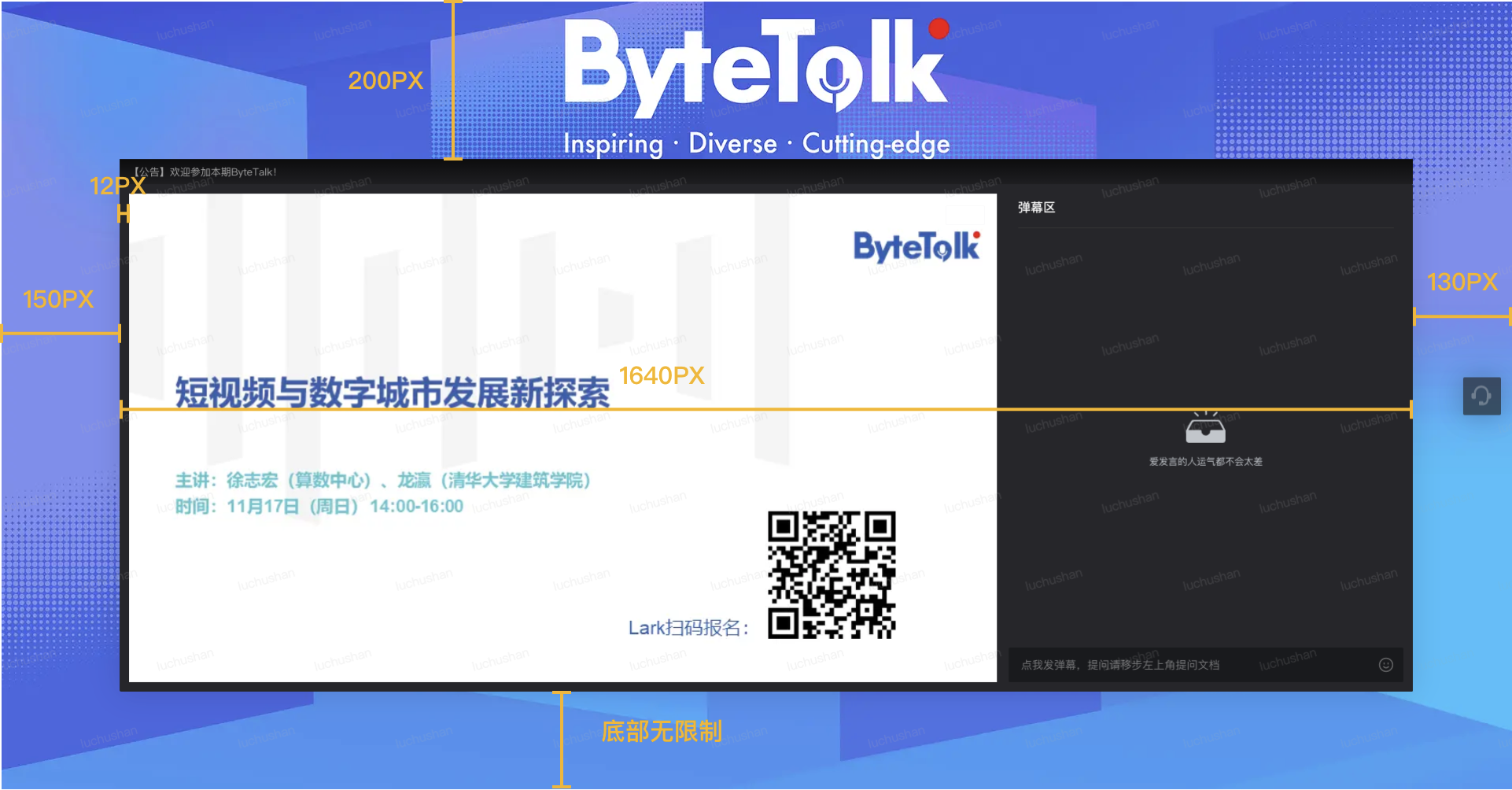

背景图
Background pictures

1920x1080px

2M

JPG、PNG

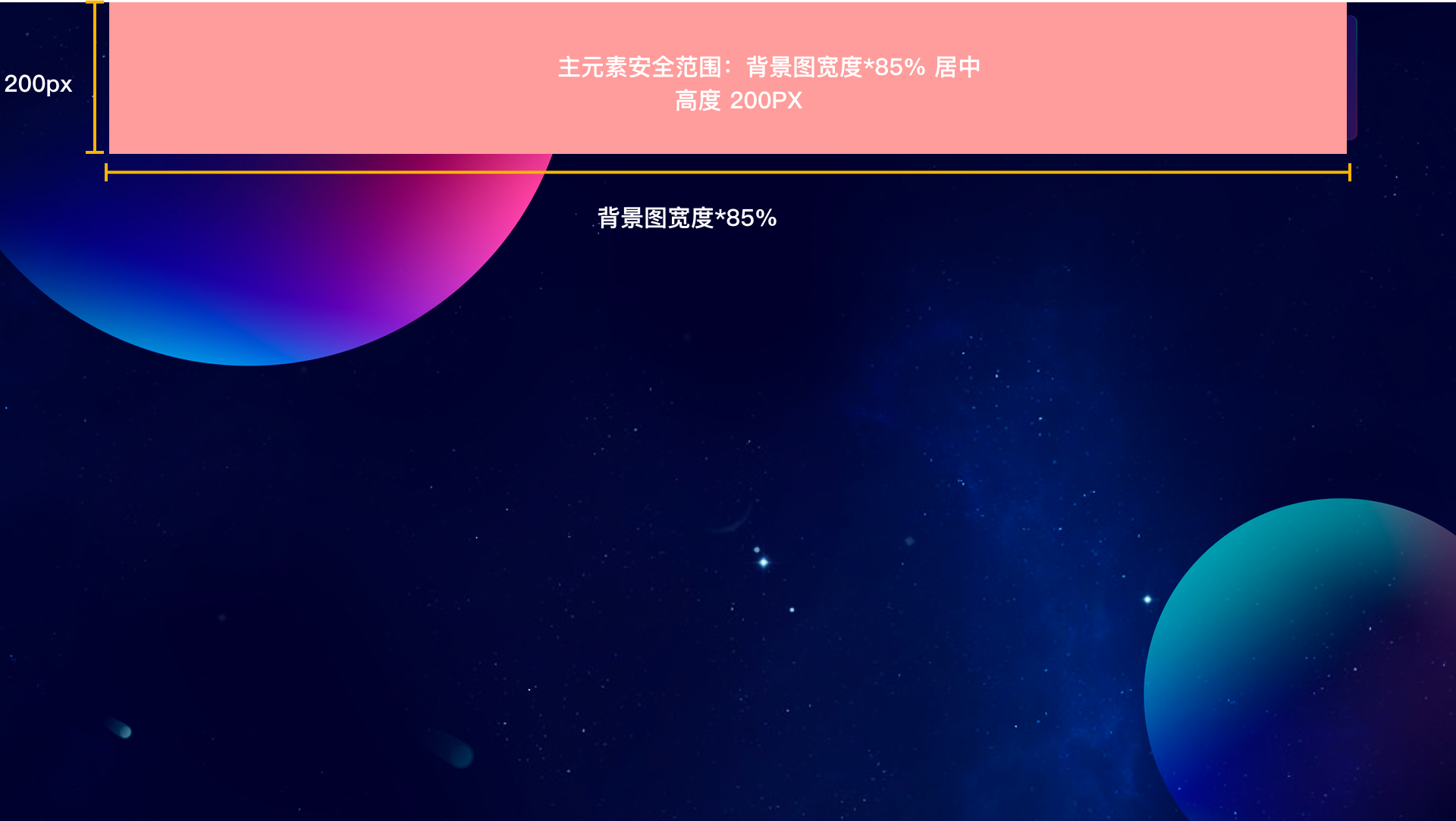

页头图
Header pictures

1920x200px

2M

JPG、PNG

封面图
Cover pictures

1092*1080px(或宽高比为 16:9 的图片即可)
1092*1080px (or pictures with an aspect ratio of 16:9)

2M

JPG, PNG

alt

直播建站 banner 素材准备

直播建站主要是 banner 位和 logo 的物料设计。

物料类型 Type尺寸 Dimention大小 Size格式 Format页面参考 References
banner1440*450px2MJPG、PNG
Logo140*40px2MJPG、PNG
